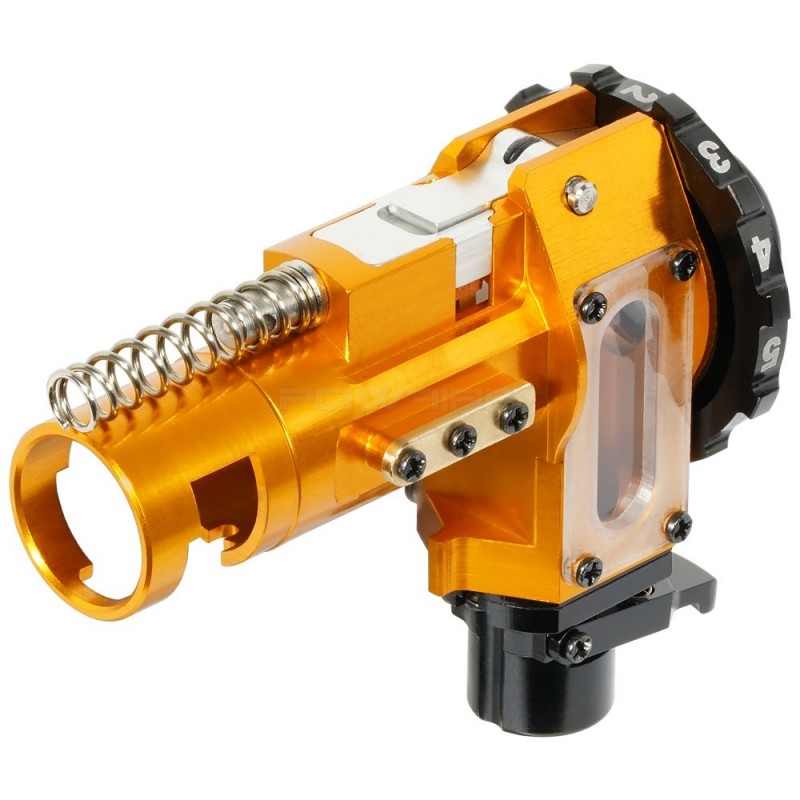

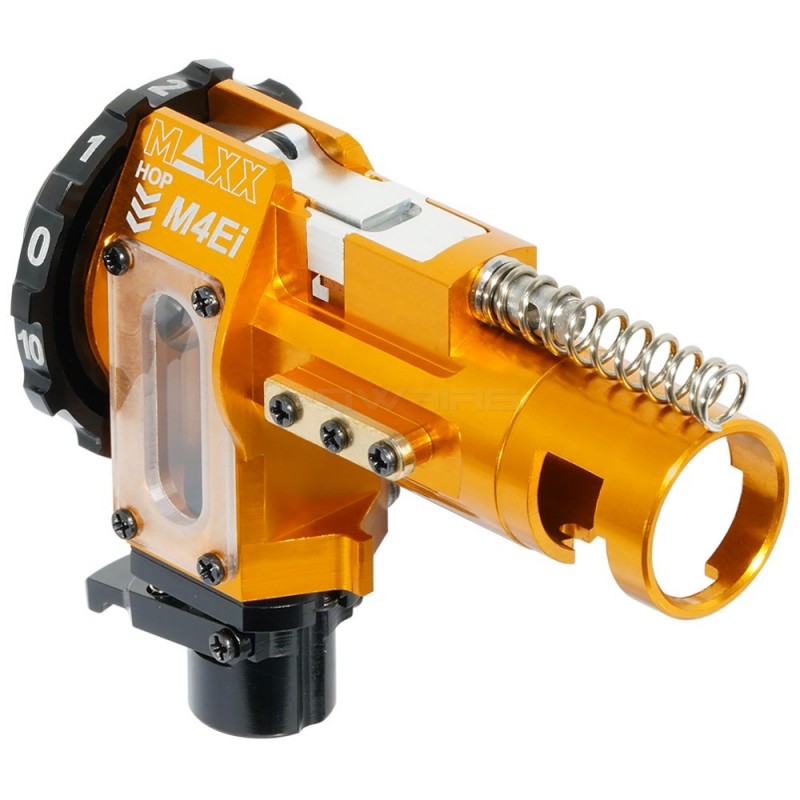

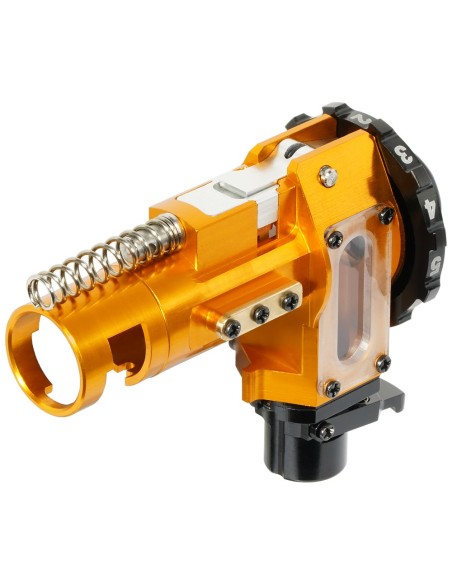

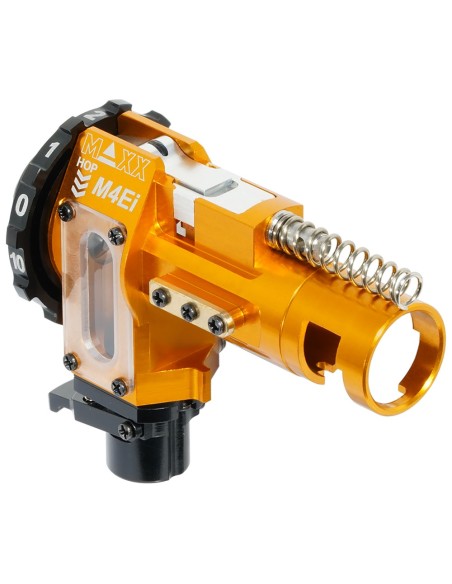

Maxx Model CNC Aluminum Hopup Chamber M4EI for ICS M4

CNC Aluminum Hop-up Chamber M4EI (with BB Latching System) unit is precisely machined to perform accurately and consistently on ICS CXP/CS4/EBB (include old models) M4/M16 AEG series. The Hop-up Chamber M4EI unit is built with an aluminum Rotary Dial Knob for fine hopup adjustments, precision Hopup Lever and bucking Nubs to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot. The Hopup Chamber M4EI unit is fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use.

The Hopup Chamber M4EI unit is wisely equipped with an interchangeable Inlet Adaptor to ensure the hopup unit is inserted exactly in the center of the inner bore ICS AEG Gearbox nozzle outlet without wobbling. Also mounted the removable CNC Brass Side Wings to slide smoothly into the outer barrel slots, and included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting. More than that, the Hopup Chamber M4EI unit is specially designed with a new BB Latching System to prevent BB dropping after removing the magazine. The Latching Arm can also be manually pressed to release the remaining BB from inside the hopup chamber.

Maxx Model CNC Hopup Chamber M4EI is compatible with :

• ICS M4 replica CXP/CS4/EBB
• AEG type hop-up rubber

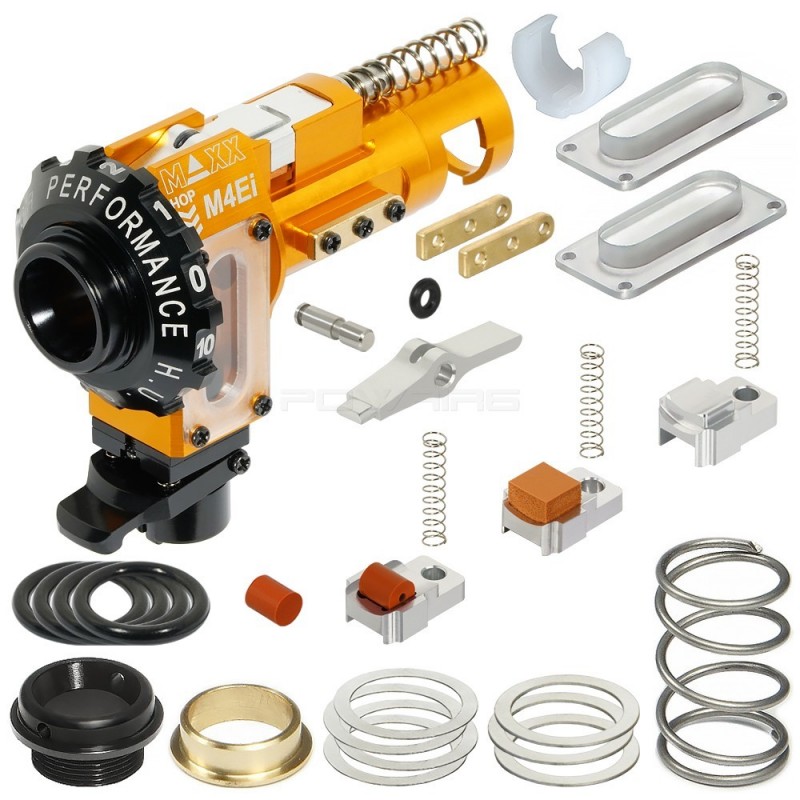

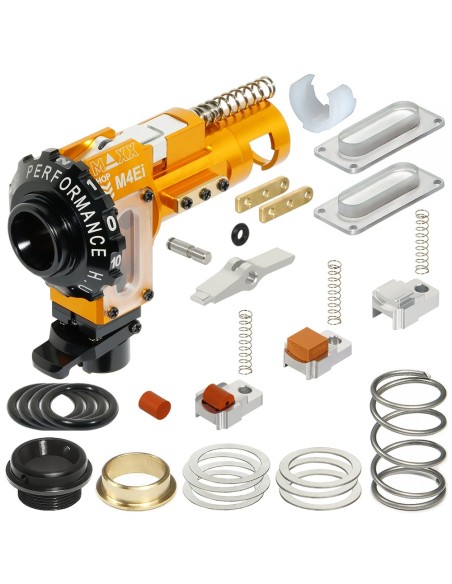

Include :

• 1 x CNC Aluminum Hop-up Chamber M4EI
• 2 x CNC Acrylic Side Cover
• 2 x CNC Brass 2.5mm Side Wing
• 1 x CNC Steel Pivot Pin
• 1 x CNC Aluminum Hopup Lever
• 1 x CNC Aluminum Soft Round Nub
• 1 x CNC Aluminum Soft Flat Nub
• 1 x CNC Aluminum Hard Concave Nub
• 3 x Steel Nub Spring
• 1 x CNC Steel Spring Guide
• 1 x Steel Upper Compression Spring
• 1 x Steel Center Compression Spring
• 1 x CNC Delrin Locking C-Clip
• 1 x CNC Brass Barrel Spacer
• 1 x Brass Barrel Spacer Holder Oring
• 1 x CNC Aluminum Rotary Dial Knob
• 1 x CNC Aluminum Inlet Adaptor
• 1 x Shim set
• 1 x Oring set
