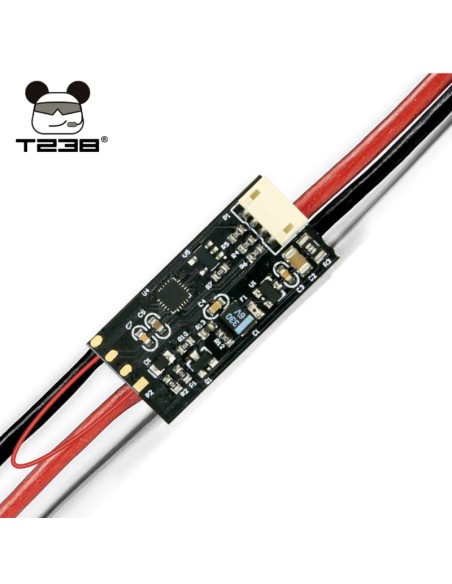

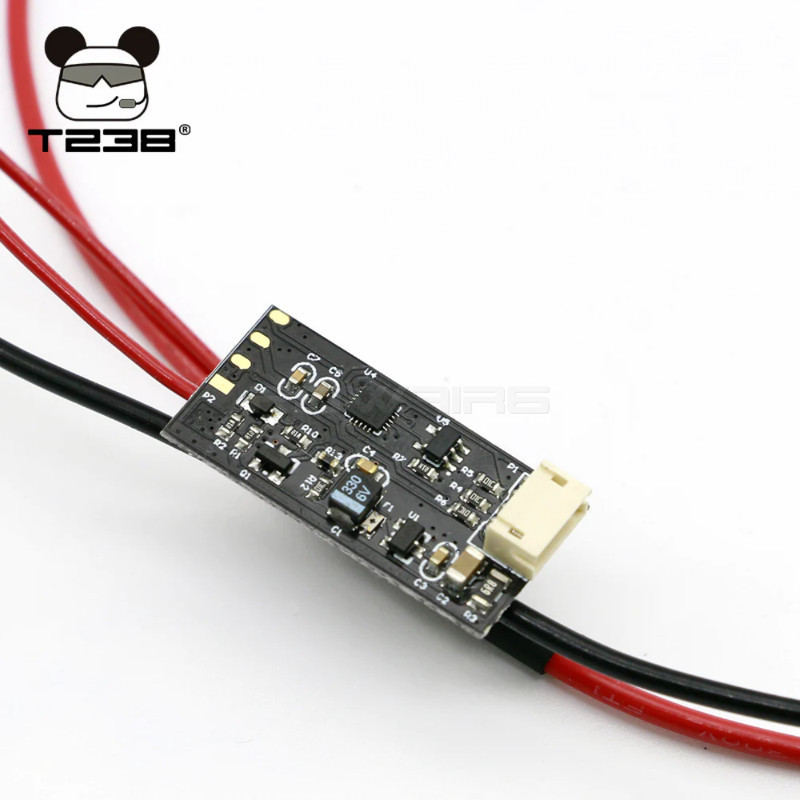

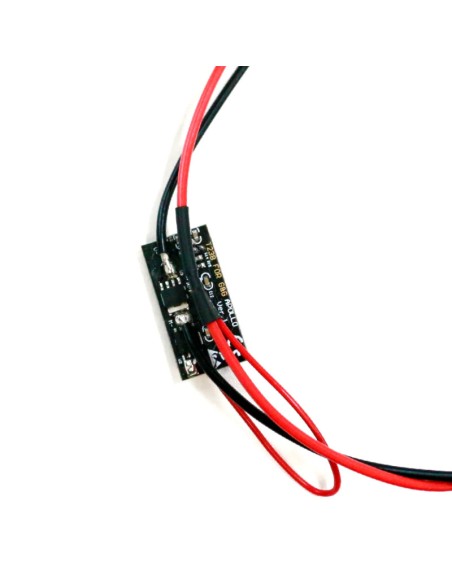

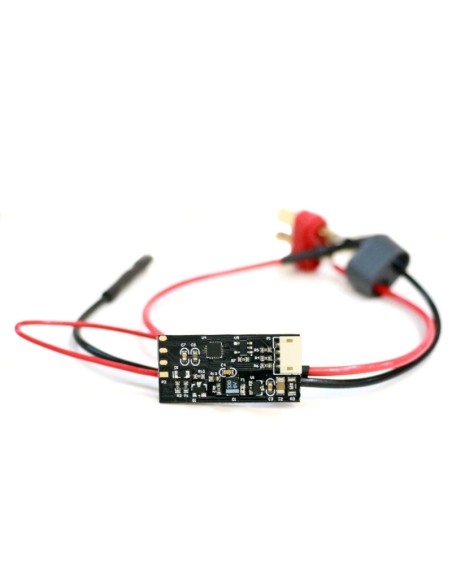

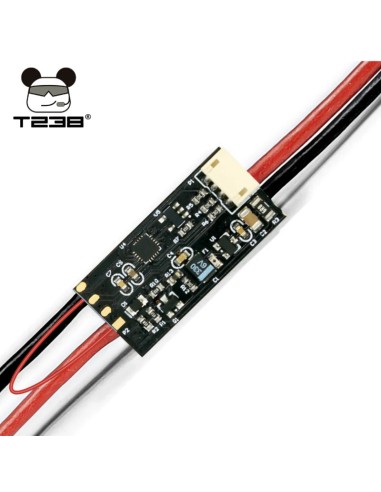

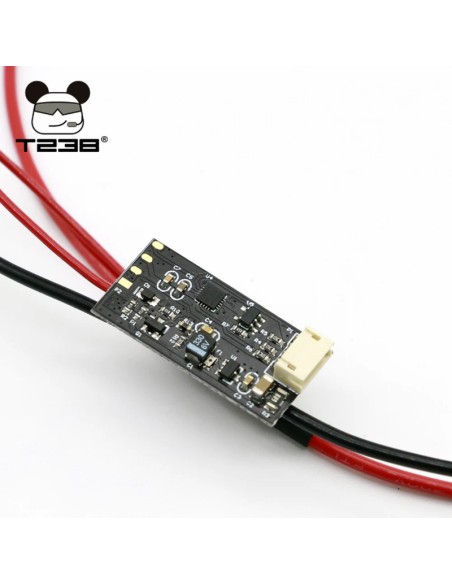

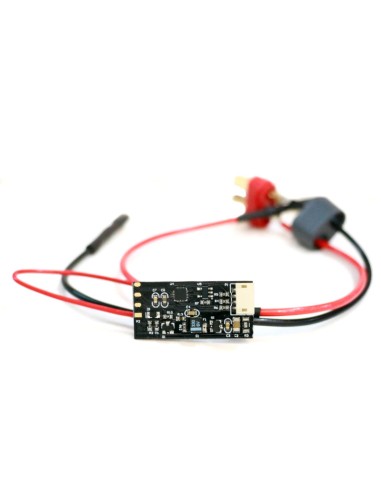

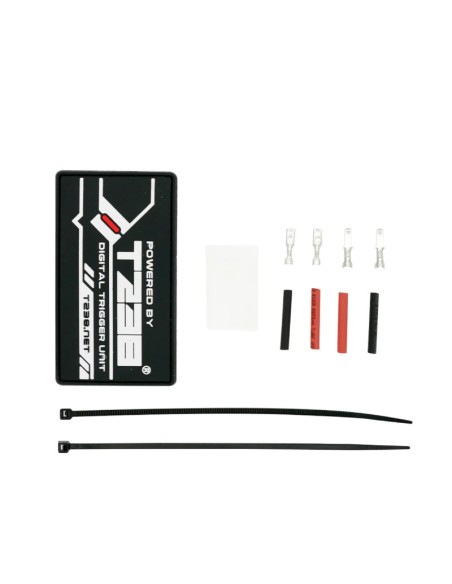

T238 APOLLO External Programmable MOSFET for G&G

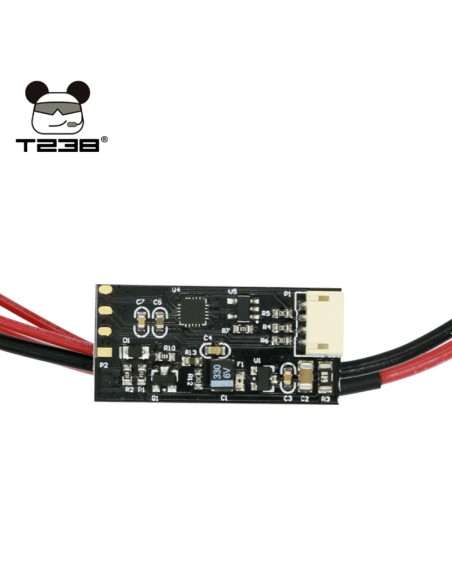

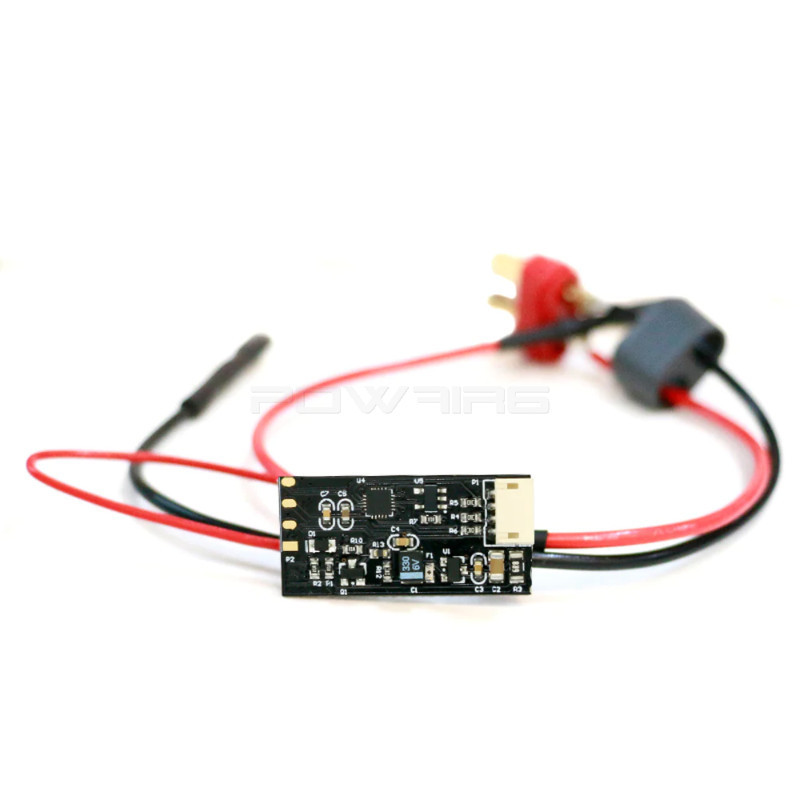

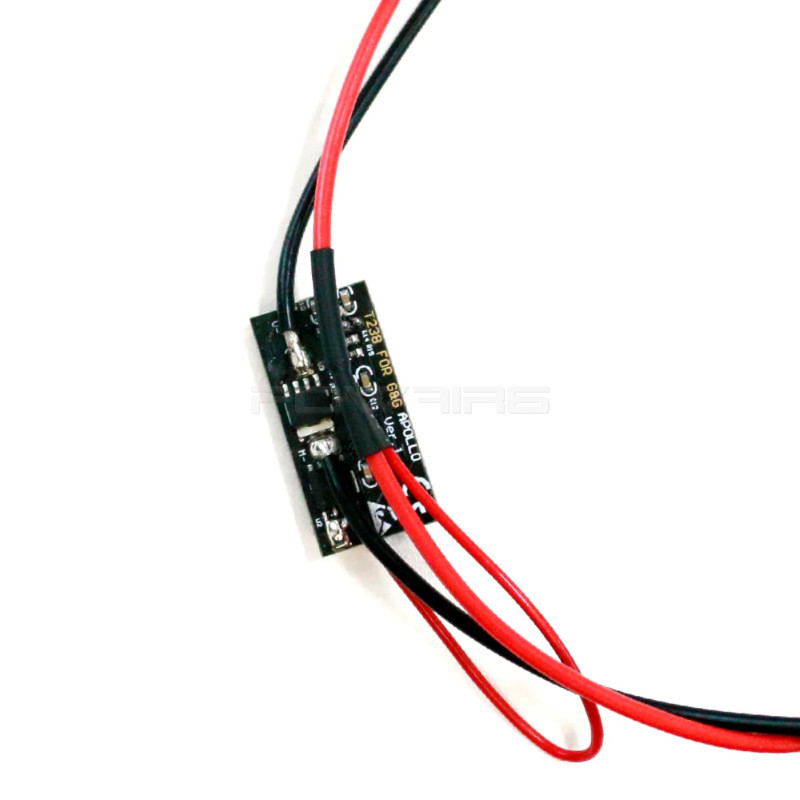

Apollo is a programmable MOSFET which is specially designed for G&G AIRSOFT replica. With high speed processor and 2 high power MOSFET chips, this system has many individualized programmable functions, such as piston positioning, binary trigger, multiple-shot and so on. Besides, it also has the functions of battery low-voltage protection and gearbox block-up protection. It can effectively improve the stability, shooting speed and response speed of gearbox, at the same time, it can completely eliminate the problem of gearbox single-shot become multiple-shot. The module uses a maximum of 4S batteries.

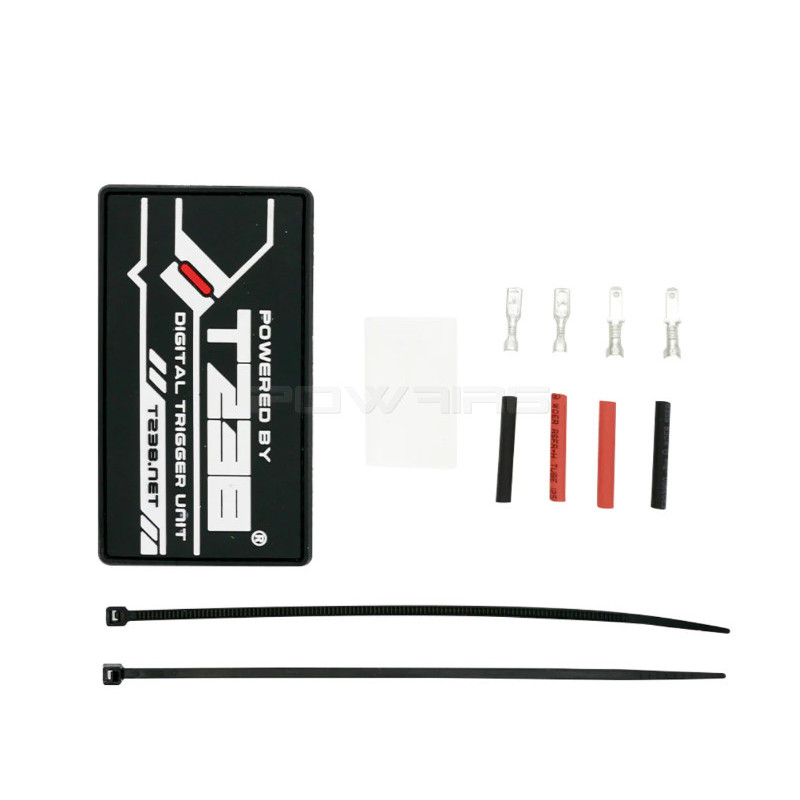

Warning : This upgrade kit is designed for G&G AIRSOFT electric gun with built in trigger board and 4 pins interface. The compatibility with all G&G AEG is not guaranteed, but it can fit into most G&G replicas without larger modification. Related Tools and skills is needed for installing the product.

Compatible Replica : PCC45 Enhanced Version，MXC9 Enhanced Version，ARP556，ARP9，GK12，CM-16, CMF-16, CMF-16K，SR30 M-LOK，L85 A2 ETU，TGM A2 ETU MP5 GC16Warthog，GR14 M14 EBR-L ETU，SRL，AK RK74-CQB，TR16 SBR 308 MK I，TR16 SBR 308 MKII......

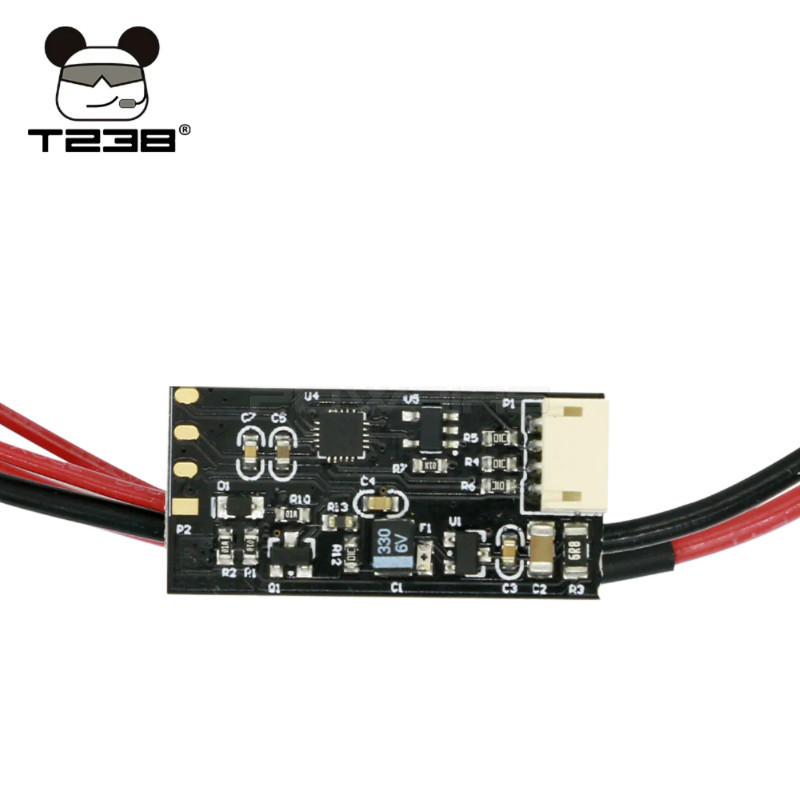

Main parameters :

• Size: 30*15*5mm
• Operating voltage: 7.4-16.8V
• Active break tech & Piston reset
• Adjustable active braking effect
• Multiple programmable shooting mode
• Overheat protection
• Maximum Inrush current is 240A, Maximum Brake current is 100A

 Functions :

1. Low battery voltage protection, the default setting is 7.4V battery. Change the battery when hearing ‘beepbeep beep beep’ 4 times low voltage warning sound.

2. Block-up protection. When gearboxBlock-up occurs, the system stops working and emits an elongated ‘beep’ check the wave box immediately by power off.

3. Adjustable active braking effect, proper reduction of braking effect can relieve motor heating.

4. This module is able to increase rate of fire, the stability of single-shot and make batteries have higher durability.

5. The energy that support the active brake function comes from the inertia of motor, stop the piston without delay.

6. The active function prevents the over-spin of gears, this solve the issue that the single shot becomes multiple shot under high voltage. Meanwhile, the spring is fully released in semi-auto mode and parts in gearbox are not under strain,increase the life cycle of gearbox and parts.

7. The system includes multiple shooting mode, these modes can be selected by fireselect switch

8. The default position of the piston is adjustable in semi-auto mode.

9. Pre-cocking function can be implementing, zero trigger delay

10. Adjustable rate of fire, the gap between two single shots can be programmable, to achieve adjustable rate of fire

11. When the DTU is overheated, after the trigger is pulled, the motor will give a beep prompt until it is automatically restarted after cooling.

Modes :

SAFE：This mode is completely the same as original safe mode. The trigger is stopped by Safety lever

SEMI: This mode can be programmed to implementing semi-auto, double stroke single shot, 3-round burst to 6-round burst, the default mode is semi auto

AUTO: This mode can be programmed to implementing full-auto, 3-round burst, 6-round burst and 9-round burst, the default mode is Full-auto

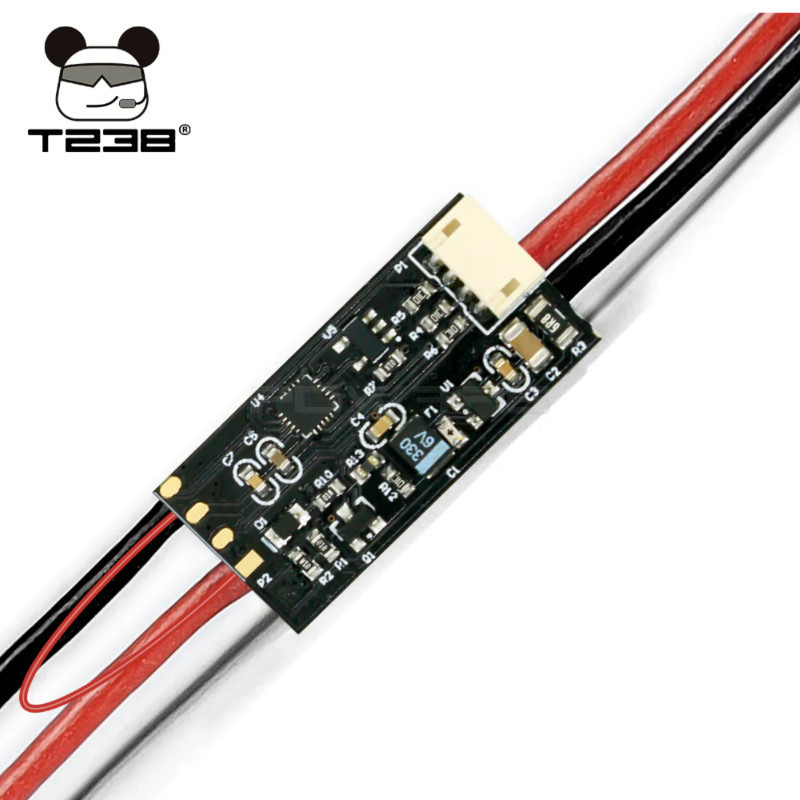

Interface :

1. Command pin, directly connected to battery negative pin
2. Trigger pin, close this pin to pin 1 will create a trigger signal
3. Gear sensor pin, close this pin to pin 1 will create a braking signal
4. Full-auto pin, close this pin to pin 1, the MOSFET will run in full-auto mode

Programming :

1. Disconnect the battery, thenset the fire selector switch to auto.
2. Connect the battery and pull the trigger in 3 seconds, After  hearing2 long ‘beep~’ , the module runs into programmable mode, otherwise it will be in auto mode.
3. In the programmable mode, the motor emits short ‘beep’, the numbers of ‘beep’ means the serial number of the option. If you want to choose the option, pull and hold the trigger in 2 seconds after ‘beep’s till a long ‘beep’, the module will be set to matched option. (The options and matched function/parameter are in the table below).
4. After setting to the selected option, the motor emitsshort ‘beep’s, the number of ‘beep’s means the different function/parameter of this option. If you want to program to set it to certain option or parameter, pull and hold the trigger in 2 second after ‘beep’ till 2 long ‘beep’, then the module is in programmable mode
