ConnexionMultifunctional programmable 3rd generation MOSFET. The system has 10 functions. Its latest feature is the 3-rd Burst Mode, which allows for limiting the number of shots. The system allows for lossless rate of fire adjustment.
It protects Li-Ion batteries: LiPoly and LiFePO4. It has a built-in active brake and it protects contacts against damage. The Smart Trigger function enables achieving faster trigger response. Thanks to two operating modes, the system works with both the original and the modified AEG installation. The system is designed for all replicas and especially for the upgraded ones. It has been adapted to work even with the most powerful springs, including M170.
Included in the kit:

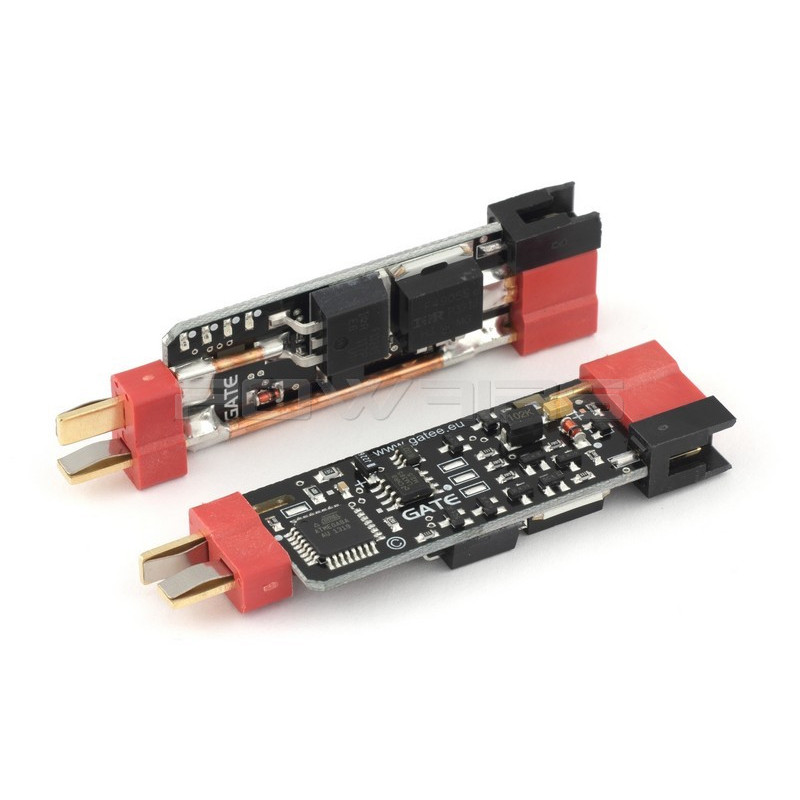

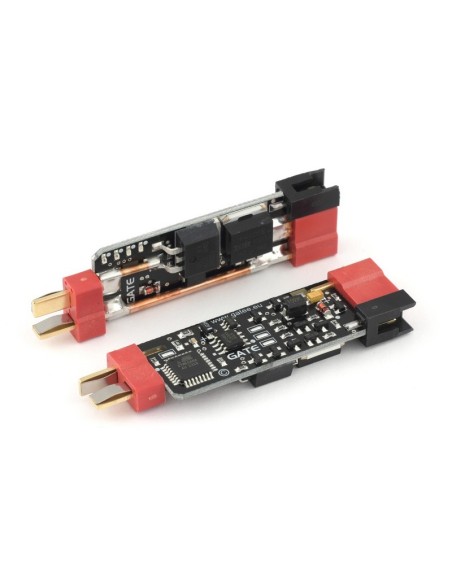

MERF 3.2

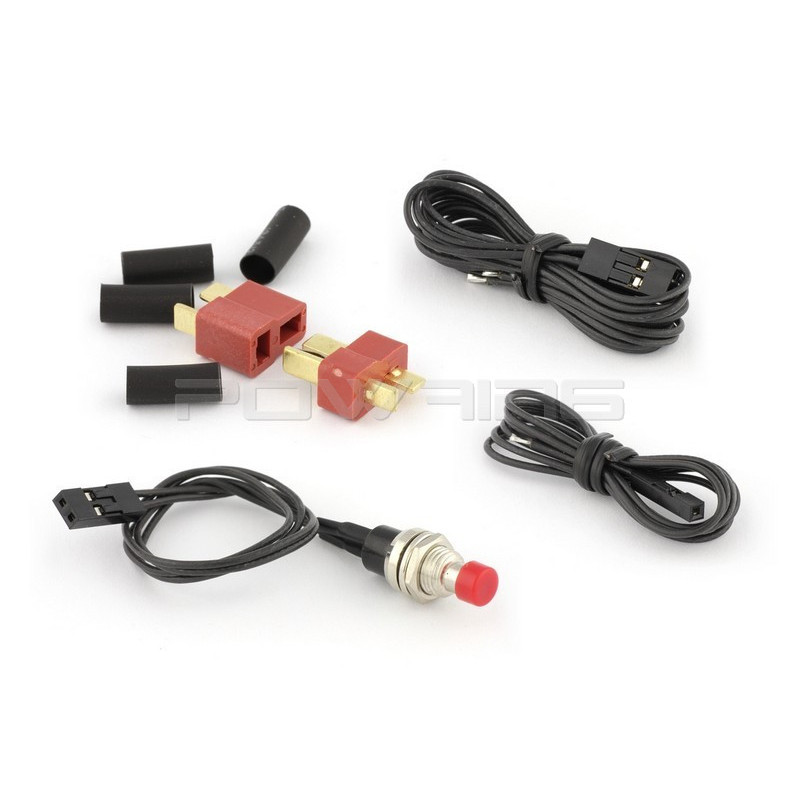

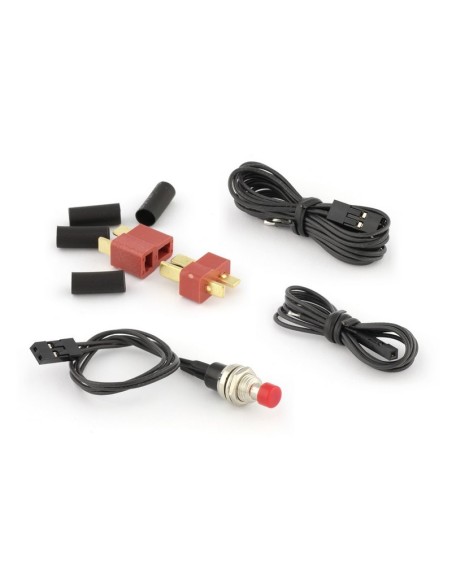

Additional kit of Deans-T Connectors
Single signal wire for trigger contacts
Double signal wire for trigger contacts
System programming button
![]() | MOSFET Do you want to achieve higher rate of fire and faster trigger response? Are you planning power upgrade of your rifle? In that case, you need a MOSFET. It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher rate of fire of the rifle and faster trigger response, and the contacts are protected against burn out. |
![]() | Active Brake Do you care about realism? Would you like to increase the life of the gearbox? Does your rifle have such high rate of fire that you are not able to make a single shot? Active brake sorts things out. In SEMI Mode, the brake does not allow for compressing a piston after a shot. The piston will stop in front position which eliminates unnecessary stresses, increasing the service life of gearbox and its parts. It is very important, especially with an AEG power upgrade. After releasing the trigger, the rifle immediately stops firing. Thus, you gain more realism and, additionally, you do not waste your precious ammunition. |
![]() | Electronic Fuse We know how important reliability is on the battlefield. That’s why our new MOSFET has thermal protection. In tandem with a time-lag fuse, it fully protects your AEG installation. |
![]() | Protection against Over-Discharge of Battery (UVP Protection) Modern LiPoly batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor constantly monitors the battery voltage. When it drops down to a critical level, it will not permit firing. |
![]() | Debouncing (Digital Interface) This provides full compatibility with the micro-switches. It is fully resistant to contact bounce. You gain a bigger ROF, a faster trigger response and your MOSFET is less prone to heating. |
![]() | 3rd Generation MOSFET The usage of modern transistors and microcontroller has enabled us to create the smallest and most reliable AEG Controller in the market. |
![]() | Rate Of Fire Control It enables lossless reduction of the rifle’s rate of fire. Adjustment is possible within the range of 30% up to 100%. |
![]() | Smart Trigger We know how vital the fast trigger response is during combat. Victory is often a matter of fractions of seconds. This is why we have developed the Smart Trigger function. This function enables you to achieve faster trigger response. It works with the ROF Control system. During the first shot, the microprocessor sets ROF Control to 100%. After the first shot, it is switched to the previously programmed value, e.g. 30%. As a consequence, the first shot is fired with full rate of fire, and subsequent ones with a reduced ROF. The best results can be achieved by using a battery with higher voltage than a standard one. For example, if we use a 7.4V battery, we can change it to 11.1V. In this way, we will achieve faster trigger response with the same rate of fire as with a standard battery. |
![]() | 3-rd burst mode Burst mode enables you to make 3-shot series. In this way you can save ammunition and increase the realism. You can change AUTO mode to BURST mode or SEMI* mode to BURST mode. If in SAFE/SEMI/BURST mode you release the trigger earlier, you can make one or two shots. The burst time is set in the menu with accuracy to 4ms. The processor actively compensates for the change in burst time with a decrease in the rate of fire due to battery discharging. *SEMI to BURST in enhanced mode only |
![]() | Operating Modes You can connect the system to a rifle in two ways. Depending on the selected method, you should set a proper operating mode: Plug&Play or Enhanced Plug&Play: All you need to do is connect the system between the battery and the rifle. Enhanced Mode: It requires modification of AEG installation. We connect trigger contacts to MERF. We can do it using the signal wire attached to the kit. |
The GATE mission statement: ‘To give every airsoft player a more exciting experience and to provide them with access to the most up-to-date technology for their airsoft games’ is well taken to heart by the company’ staff. Every product at GATE goes through advanced technology process. Prototypes are designed using modern software and sophisticated hardware. We rely on reliability and miniaturization.
Beginning in 2014, each product, prior to its introduction to the market, is tested by 50 independent beta-testers. Thanks to our long-term research, meticulous tests and our experience, our products are reliable and can operate under most harsh conditions. All products comply with ROHS 2 and meet CE standards. Electronic circuits are being made using modern technologies. SMD 0603 components and 8 mils traces are our standard. High-density multi-layer PCBs allow large scale miniaturization. In high power circuits, we use most powerful transistors available on market: HEXFET Power MOSFETs International Rectifier, NXP N-channel logic level MOSFET in LFPAK using NextPower technology, Vishay P-channel MOSFET in PowerPAK SO-8 using TrenchFET technology. Because of an optimised output capacitance, body diode and channel structure, MOSFETs exhibit “soft-recovery” switching behaviour, resulting in lower voltage spikes, faster decays and virtually no gate glitches. Moreover, increasing switching frequency from 300KHz to 1MHz allows a 70 - 80% reduction in inductor size. MOSFETs' excellent switching performance enables such design choices with minimal loss of efficiency.
For eight years, our company has been designing and producing the most innovative AEG Control Systems and MOSFETs. We have premises located in Cracow, Poland. Our products successfully entered global markets and are being sold in more than 20 countries. Why should you choose GATE while upgrading your gun? Thanks to our products, your skirmish becomes a more exciting experience. The variety of functions and protections our Controllers and MOSFETs give to your gun is enormous.
