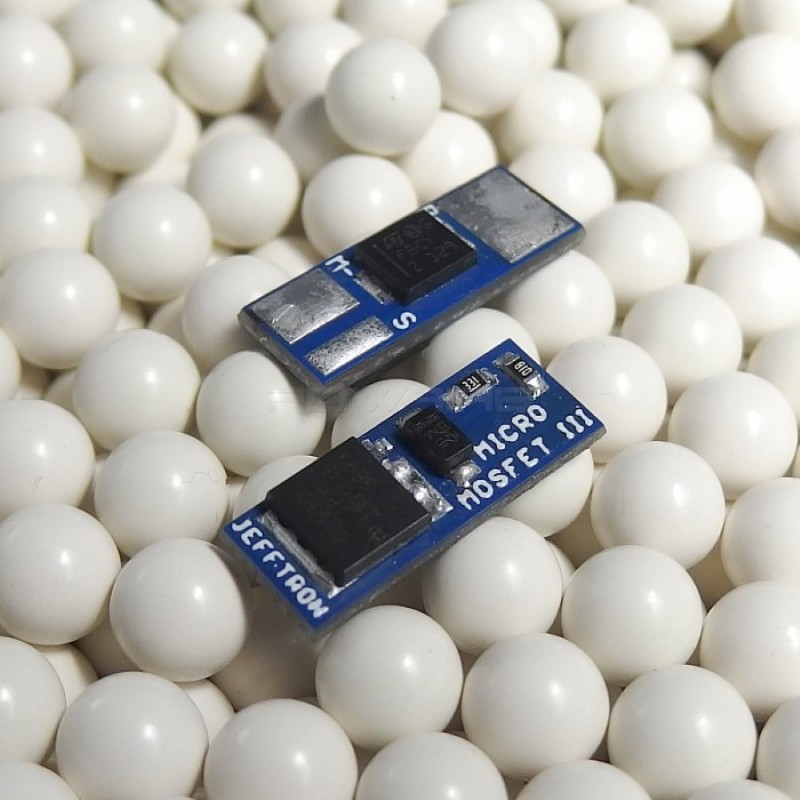

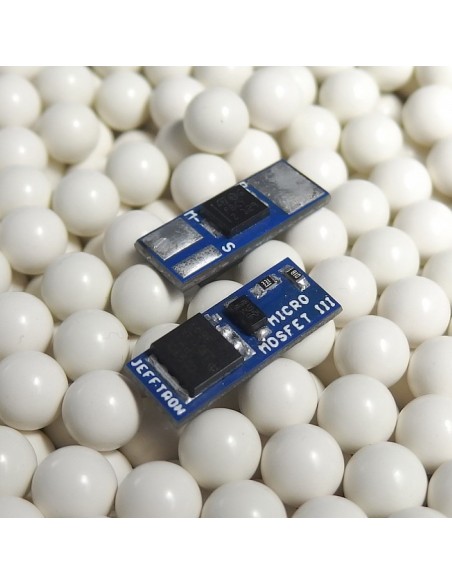

Professionally made mosfet designed for airsoft electric guns (AEG).
Device increases gun rate of fire and battery holds longer, than with basic wiring.

IMPROVEMENTS OVER MICRO MOSFET II:

  •  Designed for higher current loads

SPECIFICATIONS:

  • Very small device dimension, it fits nearly everywhere
  • Presoldered wires allows faster and easier installation into the gun, it is long enough for all kind of weapons. Simply cut wires to the required length and attach connectors (included in package)
  • On the devices are presoldered high quality 2 black wires 1,5 qmm (AWG16) with PTFE insulation, length 500 mm each. The blue wire 0,34 mm2 (AWG22) with a length 1000 mm is used for connection anywhere on the red cable
  • In package is included 1000 mm red wire 1,5qmm (AWG16) with PTFE insulation
  • Board covered by conformal coating, it protect device against water
  • If you want to use your own wires, choose device without wiring
  • Designed for spring up to M170 (equivalent for current 90A single shot fire or 35A burst fire for max. 30s). For higher load please use Mosfet II
  • Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
  • 5 wires connection
  • Positive wire isn't connect into device
  • device size 16x6,4x3,5mm
  • No current consumption in the idle mode
  • No sparking on switch contacts
  • In auto fire mode piston stops in random position due the mechabox design
  • For right function is necessary to have a functional gearbox cut off lever, selector plate, reverse latch, trigger and trigger block, as it has the standard gearbox

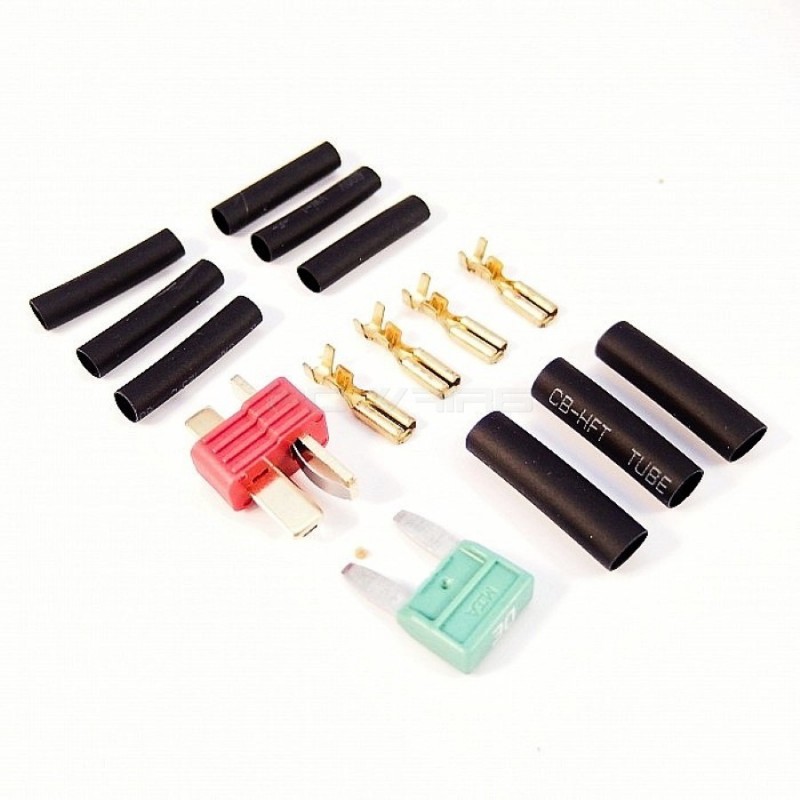

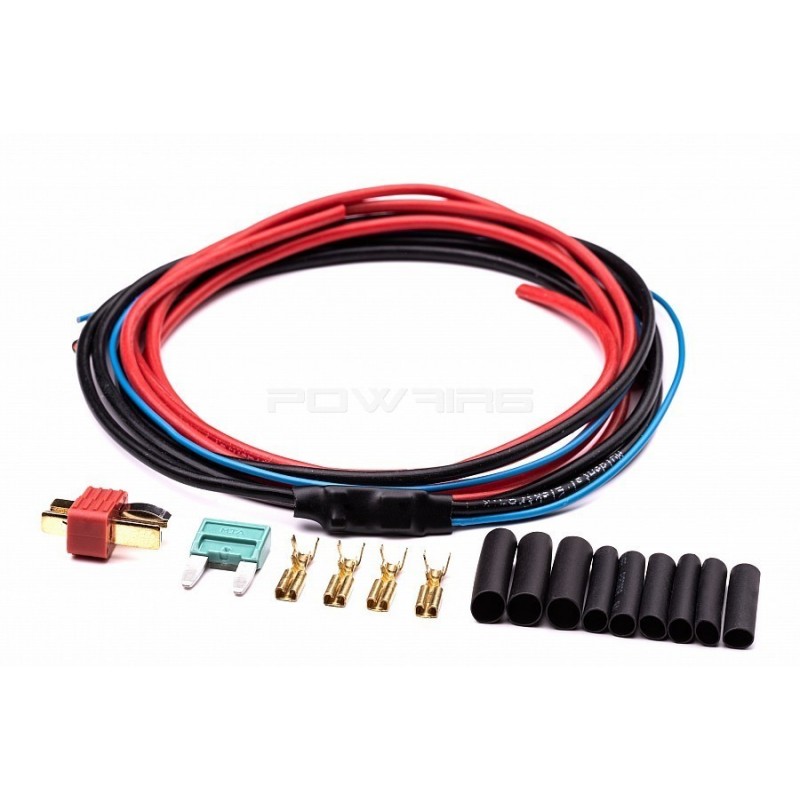

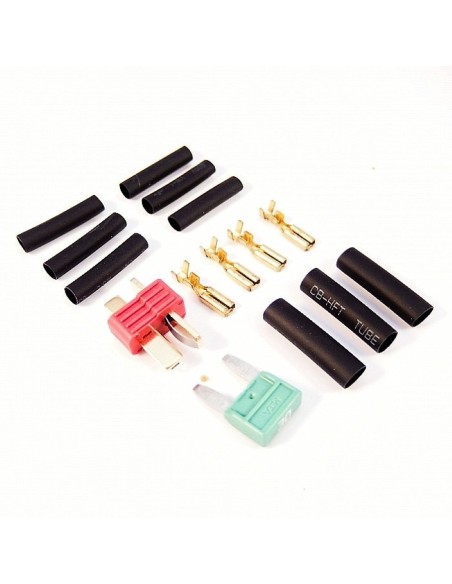

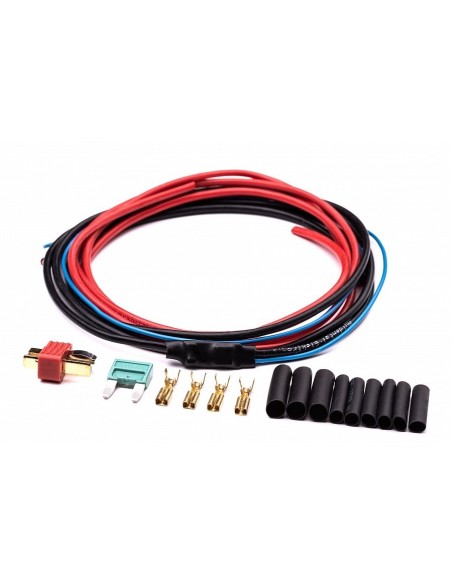

PACKING:

  • device with wiring
  • DeanT connector male
  • 30A mini fuse
  • 4x faston female 2,8mm
  • 6x black heat shrink tube 3,2mm - length 20mm
  • 3x black heat shrink tube 4,8mm - length 20mm
  • installation manual in English

WARNING: Installation of this device leave to expert, who could solder and disassemble airsoft gun. Never user soldering gun!

Data sheet

Power sourceElectric
GearboxV2
Battery ConnectorDEAN (T-Plug)
