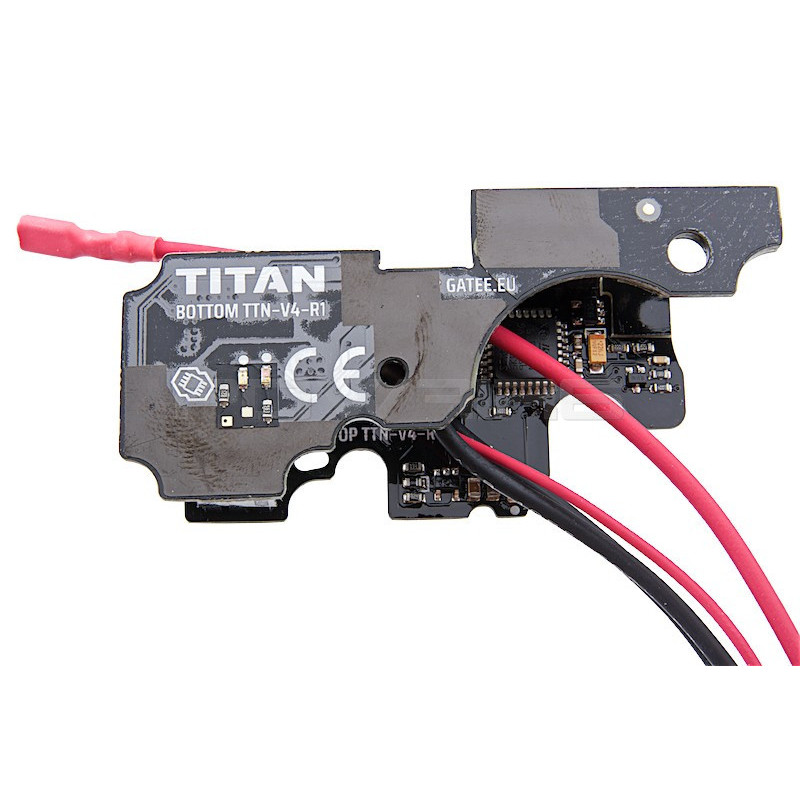

TITAN V2 NGRS™ is an AEG Control System for Tokyo Marui V2 Next Generation Recoil Shock gearboxes.
Transform your Tokyo Marui Next Generation AEG into an advanced training weapon system. Adjust your weapon and check the Statistics using USB-Link and GATE Control Station app for PC, MAC and Androiddevices. TITAN V2 NGRS has the whole new trigger sensor, which allows to set hair trigger with ludicrous precision: even 50 sensitivity levels for first millimeter of trigger movement. The innovative 3rd generation trigger sensor offers you even 460 possible sensitivity settings. Gain a unique tactical advantage thanks to the extremely fast trigger response and lots of other useful functions. Boost your AEG with computerized technology. Give your AEG a new lease of life!
TITAN is not just another drop-in mosfet. It is the complex system that turns your AEG into an advanced training weapon.
Gearbox type: Tokyo Marui V2 Next Generation Recoil Shock
Why TITAN V2 NGRS is so special?
It has 3rd generation trigger sensor which allows to set hair trigger with ludicrous precision: at least 50 sensitivity levels for first millimeter of trigger movement and even 420 sensitivity levels for whole movement
It has dual gear sensor and bolt catch sensor what gives full compatibility with Tokyo Marui V2 Next Generation Recoil Shock
It has innovative optical sensors instead of mechanical switches that can be prone to faults
It has a user-friendly configuration via the GATE Control Station app for Android, Windows and macOS
It allows for making firmware updates via the internet, what enables improvements
It gives you an access to the Statistics and Rankings (in case of Advanced firmware)
It replicates a trigger response like in a real gun
It is compatible with most powerful AEG replicas. Check TITAN rankings: https://gatee.eu/rankings
What is a drop-in module? It is an electronic unit, which replaces the trigger contacts and the cut-off lever, which takes control of your AEG.
GATE Control Station™
TITAN and GATE Control Station give you total control of your AEG. The GCS offers you the option to:
control your airsoft gun from smartphone with Android and PC with Windows or macOS
Please note that the BASIC firmware edition does not support all the functions
Sensors
With the GCS you can easly calibrate and adjust sensors. The trigger sensor offers you even 420 possible sensitivity settings. You can choose one of two trigger modes:
1-stage: standard
2-stage: first stage is SEMI or BURST, second stage is BURST or AUTO
The selector sensor gives you an option for fine calibration of selector switching point. You can also turn off / on bolt catch function.
Statistics
TITAN gives you the option to check:
Rate of fire
Trigger response
Module's temperature
Motor current
Battery voltage
Number of fired BBs
Minimum, Average, Maximum Minimum, Average, Maximum Minimum, At this moment, Maximum Average AUTO, Average SEMI, Maxiumum Peak Minimum, Last, Maximum BB1, BB2, TOTAL
Please note that the BASIC firmware edition does not support the Statistics

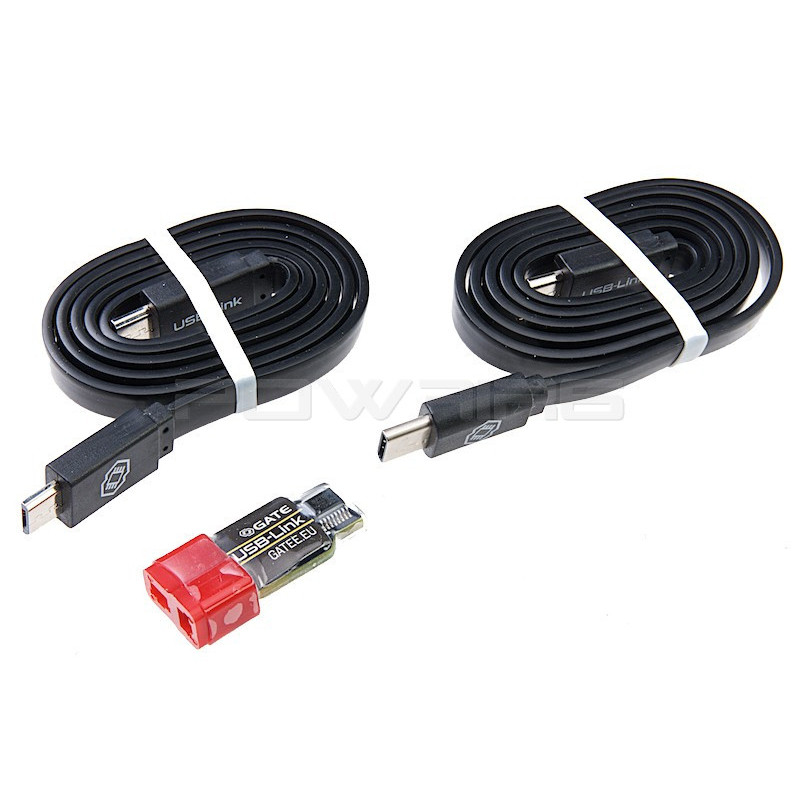

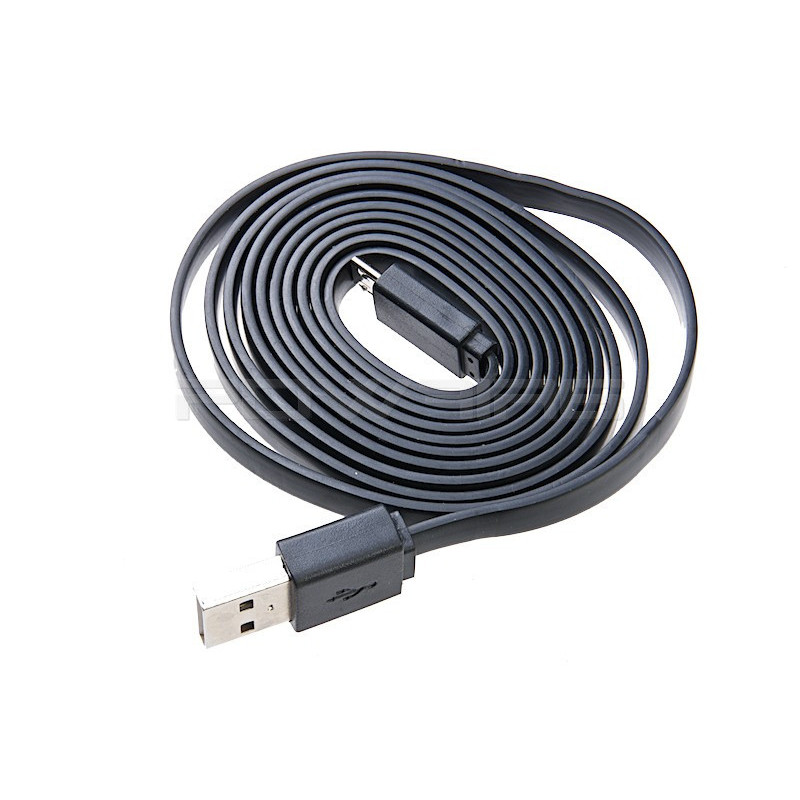

USB-Link
The USB-Link allows for connecting GATE devices with PC, MAC, Android smartphones and tablets.
Get ready for the amazing functions such as:
TRIGGER SENSOR (gen.3)
Thanks to the precise 3rd generation trigger sensor you can set trigger sensitivity with ludicrous precision: at least 50 sensitivity levels for first millimeter of trigger movement. Depending on trigger construction, it enables even 420 possible sensitivity settings. You do not have to disassemble your AEG. Just use the GATE Control Station™ App and adjust the trigger to your preferences and level of skills.
BOLT CATCH
Bolt catch sensor supports empty magazine detection, what gives full compatibility with Tokyo Marui V2 Next Generation Recoil Shock.
CONFIGURABLE FIRE SELECTOR (gen.2)
Two selector sensors allow you to use up to six fire selector modes, including innovative SEMI-BURST-AUTO mode:
SAFE-SEMI-AUTO
SAFE-SEMI-SEMI
SAFE-SEMI-BURST
SAFE-BURST-AUTO
SAFE-SEMI-BURST/AUTO (short press - BURST, long press - AUTO)
SEMI-BURST-AUTO (SAFE mode via the fast switch SAFE-SEMI-SAFE)
CYCLE DETECTION (gen.2)
Thanks to the dual gear sensor, TITAN precisely detects in which position the cycle should finish - even in case of Infinite Torque-up gears or TM NGRS gears. Therefore, even the shortest trigger action produces at least one full cycle.
Thanks to the cycle detection function you get:
Automatic BURST – there is no need to set the burst time. You can set the burst between two and 10 shots;
Automatic PRE-COCKING – pre-cocking is fully operational in SEMI, BURST and AUTO modes and there is no need to set the pre-cocking boost manually. You can simply set the pre-cocking as high, mid or low;
FULL CYCLE - when the pre-cocking is off, TITAN ensures that the gearbox completes a full cycle. You gain a higher reliability.
PRE-COCKING (gen.2*)
Victory in the game is often a matter of fractions of seconds. Thanks to PRE-COCKING, you gain a trigger reaction similar to a real gun. It allows for initial spring compression, which speeds up the trigger response significantly.
AUTO MODE – the spring is automatically compressed after each shot,
TRIGGER MODE – slow trigger action compresses the spring, and fast trigger action fires the shot.
And three PRE-COCKING BOOST options: HIGH / MID / LOW
*Now the pre-cocking is fully operational in SEMI, BURST and AUTO modes and there is no need to set the pre-cocking boost manually
Please note: using PRE-COCKING increases wear and tear on the gearbox.
BURST (gen.2*)
The burst enables you to shoot a pre-determined number of BBs, which is very useful in MILSLIM and when using low-caps.
* There is no need to set burst time. You can easily set burst between two and 10 shots.
ROF CONTROL
This enables a reduction in a gun's rate of fire. You use stronger LiPo batteries, and still have a ROF just like in a real gun.
ROF STAB
It allows you to change the way the ROF Control works: ON - ROF Control uses PWM to decrease ROF. Thanks to this, gearbox works smoothly what decreases wear and tear of AEG internal parts. OFF - ROF Control adds breaks between shots to decrease ROF. It gives you more realistic experience.
SNIPER DELAY
It lets you to set delay between each SEMI shots to simulate the delay from reload or recoil. You can set 0.5s, 1s, 2s or 3s delay.
SMART TRIGGER
We know how vital the fast trigger response is during combat. This is why we have developed the Smart Trigger function. It enables you to achieve a faster trigger response. It works with the ROF Control System. During the first shot, the microprocessor sets the ROF Control to 100%. After the first shot, it switches to a previously programmed value (e.g. 50%). As a consequence, the first shot is fired at a full ROF, and subsequent shots at a reduced ROF. The best results can be achieved by using a battery with a higher than standard voltage. For example, if you use a 7.4V battery, you can replace it with 11.1V. In this way, you will achieve a faster trigger response with the same rate of fire as with a standard battery.
Works only when ROF STAB is ON.
AUG MODE
Enjoy two stage trigger. Activate AUG Mode and set two different trigger sensitivities. Pulling the trigger slightly produces SEMI or BURST fire and pulling the trigger further produces BURST or AUTO fire (depending on the fire selector mode).
BATTERY PROTECTION (gen.2*)
Protection against Over-Discharge of the Battery. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor monitors the battery voltage constantly. When the voltage drops down to a critical level, it will not allow firing.
*TITAN detects the number of cells automatically. There is no need to reprogram TITAN every time you replace the battery.
LOW BATTERY WARNING
When the battery voltage drops to a predefined level, the motor will vibrate at regular intervals.
SMART FUSE
We have developed an electronic fuse with an accurate current sensor. A combination of current, voltage and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading and short-circuiting. If your airsoft gun becomes jammed, the function protects the motor and battery against damage.
ADAPTIVE ACTIVE BRAKE
It automatically adjusts the motor's braking power according to your needs. This prolongs the lifespan of the motor. There is also an option to set the motor braking power manually.
MOSFET
Do you want to achieve a higher ROF and faster trigger response? Are you planning a power upgrade of your gun? In that case, you need a MOSFET.
It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher ROF of the gun and a faster trigger response.
BUILT-IN SELF-TEST
This allows you to quickly check whether the drop-in module is working properly. It helps to locate where the problem lies when anything goes wrong.
COATING
Thanks to its special conformal coating, our product is resistant to atmospheric conditions (Military Specification MIL-V-173C).
14.8V LI-PO READY
The drop-in module can be used with batteries up to and including 14.8V LI-PO. The minimum operating voltage is 3V and maximum is 17V.
PRINTED QUICKSTART
Make your adventure start more easily with a new product. The quickstart contains basic information and hints.
TITAN has advanced optical sensors:
3rd generation trigger sensor
dual gear sensor
bolt catch sensor
selector sensors
Thanks to the optical sensors we have eliminated the problem of faulty switches that can occur in competitors' drop-in mosfets. The trigger has no mechanical connections with the PCB. This eliminates mechanical stresses and provides for high reliability.
GATE CTO
Thanks to the gear sensor you get:
Automatic BURST – there is no need to set burst time. You can set burst between two and 10 shots;
Automatic PRE-COCKING – pre-cocking is fully operational in SEMI, BURST and AUTO mode and there is no need to set pre-cocking boost manually. You can easily set the pre-cocking as high, mid or low;
FULL CYCLE - when the pre-cocking is off, TITAN ensures that the gearbox always makes full cycles.
You can trust TITAN because:
Every time you pull the trigger, gearbox completes the correct cycle. The gears stop exactly where they should. The gearbox works efficiently.
It is protected against short-circuits, overheating and overloading
It protects the battery against over-discharge
It significantly improves battery life, rate of fire, spring life and gearbox reliability (when pre-cocking is off)
It is compatible with the strongest AEG replicas and batteries (ready to use with LiPo 14.8V, 5000 mAh, 60C)
FIRMWARE EDITIONS
The TITAN is currently available in two firmware editions: BASIC and ADVANCED. In the future, the EXPERT edition will be also available. The table on the left shows differences between the BASIC and ADVANCED firmware editions.
BASIC: The best for those who prefer simplicity but require highest quality. Economic version with limited number of functions. If you will decide to have more functions, there is always option to upgrade firmware from BASIC to ADVANCED.
ADVANCED: The best for those who like complex solutions. Advanced version with wide variety of functions. It enables access to the Statistics and TITAN World Rankings.
In order to upgrade your TITAN firmware from BASIC to ADVANCED, you need to purchase the upgrade:
The advanced set version: at once you purchase all you need to take total advantage from TITAN. Advanced Set contains TITAN with ADVANCED firmware edition.

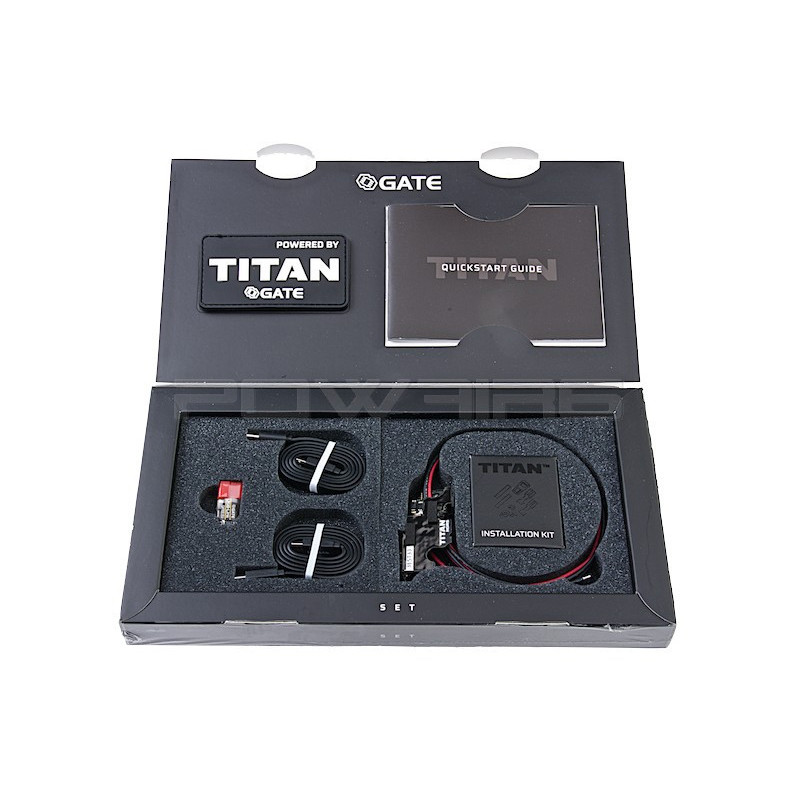

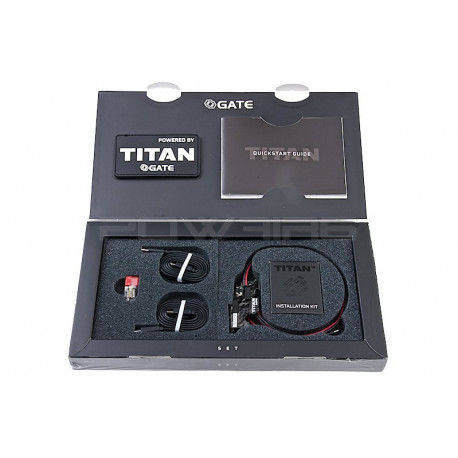

Kit contents:

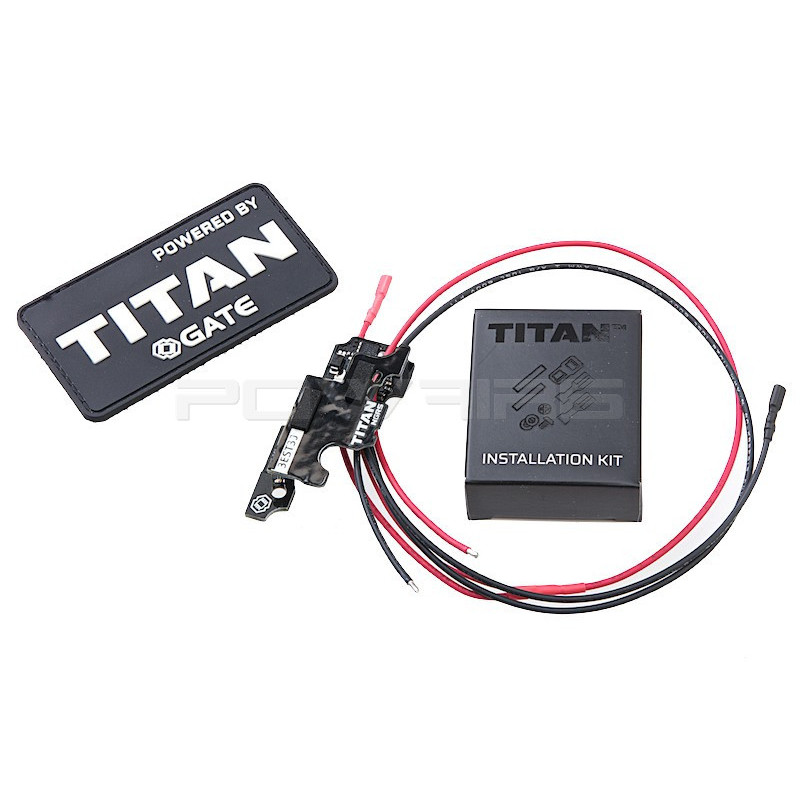

TITAN V2 NGRS Module with ADVANCED firmware (rear or front wired)
The best if you already own the USB-Link. The Basic Module set contains TITAN with BASIC firmware edition. If you will decide to have more functions, there is always option to upgrade firmware from BASIC to ADVANCED.
TITAN V2 NGRS Module with BASIC firmware (rear or front wired)

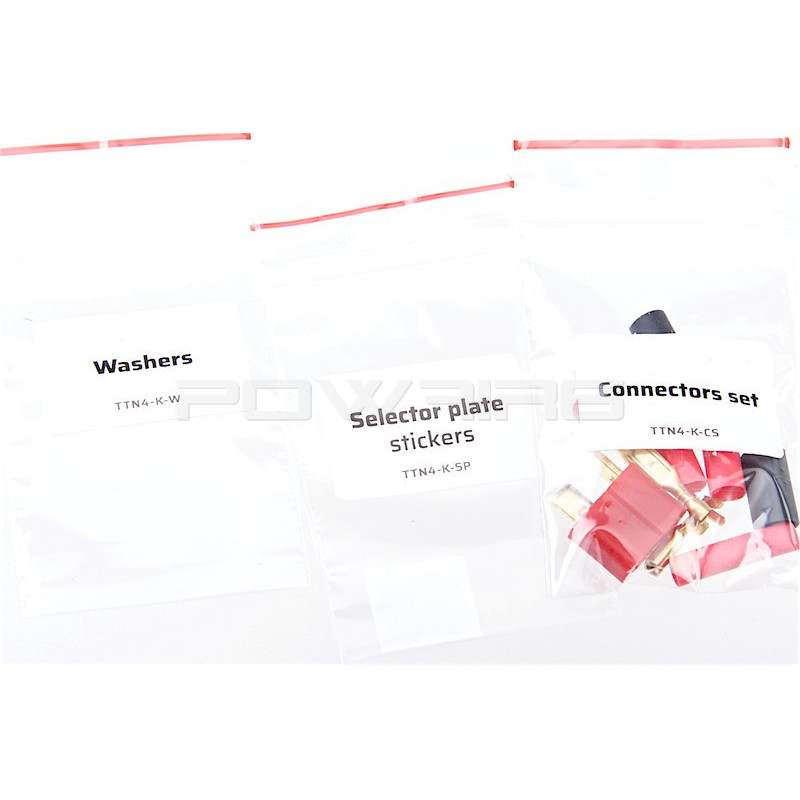

Installation Kit
Quickstart Guide
Please note:
To run and set up the TITAN, it is necessary to have the USB-Link
TITAN V2 NGRS is not compatible with Tactical Programming Card
TITAN V2 NGRS does not support DSG and 19-tooth gears
