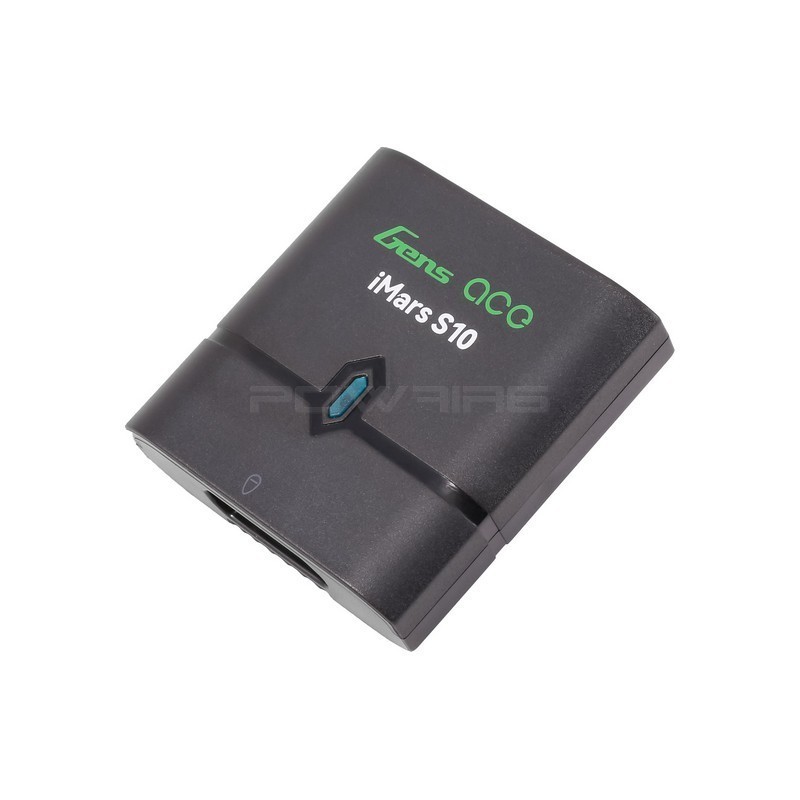

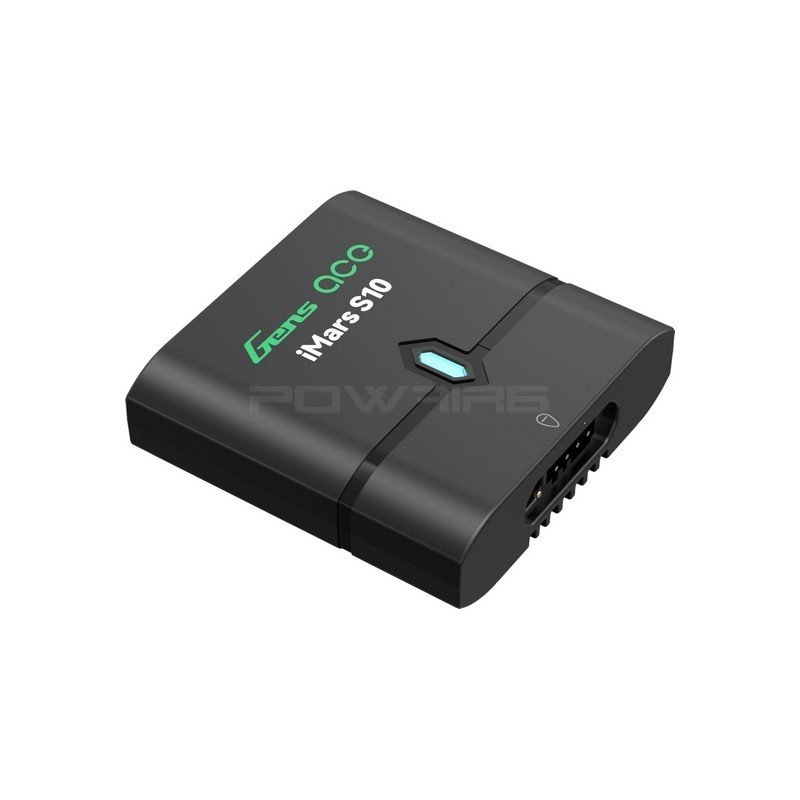

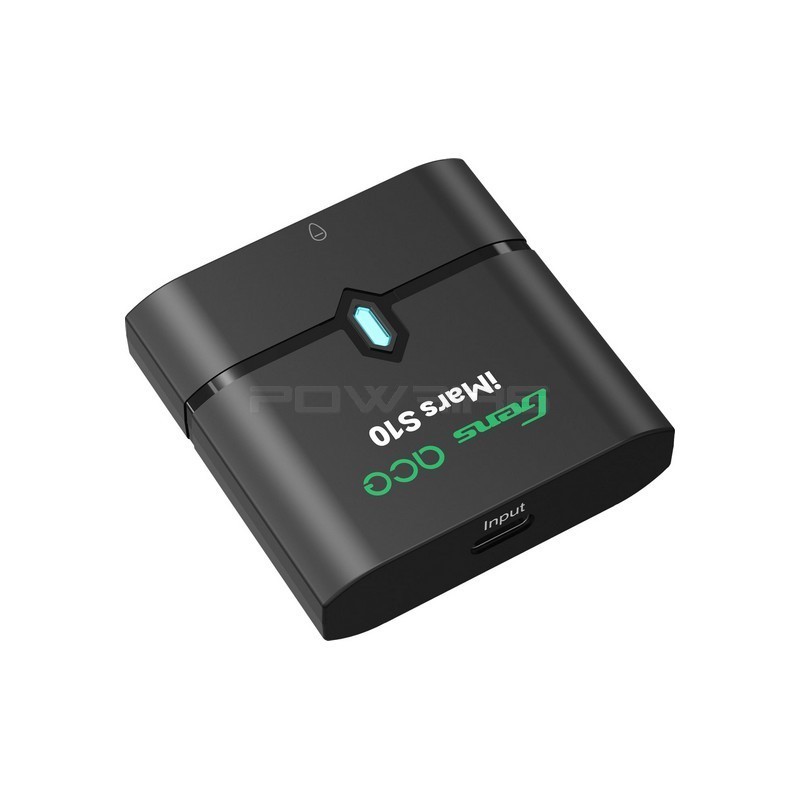

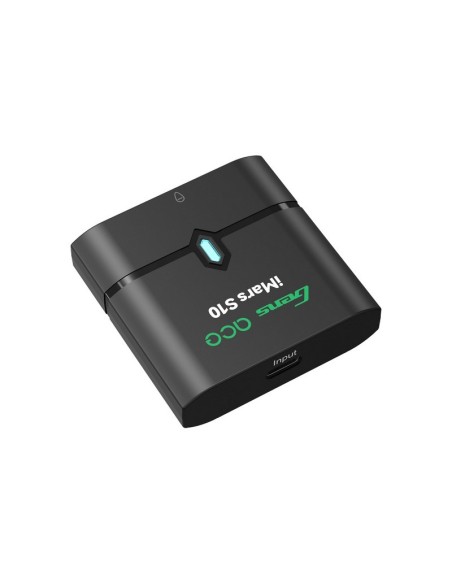

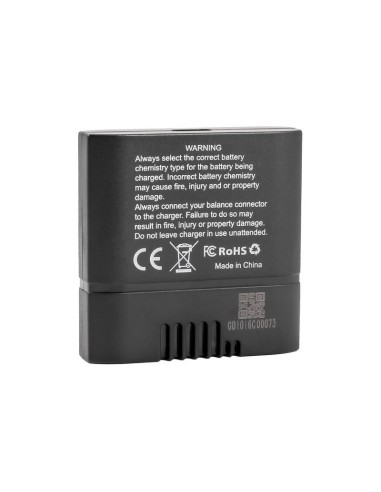

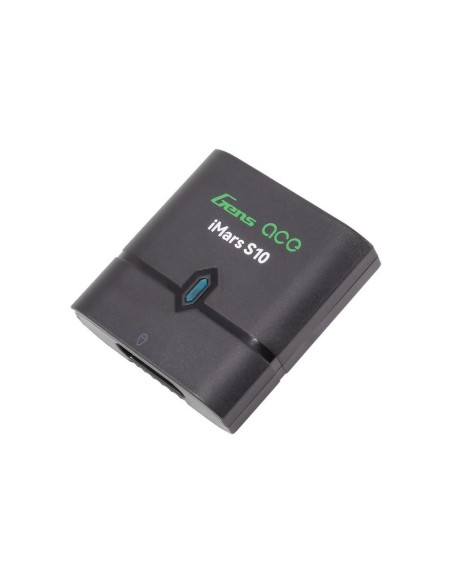

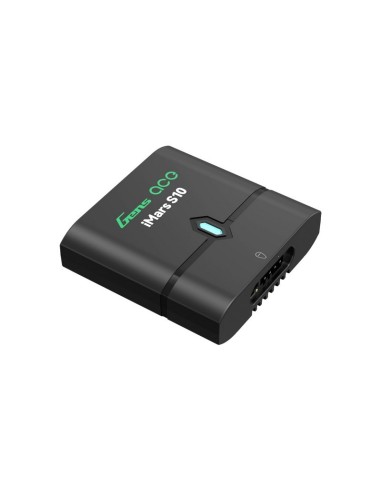

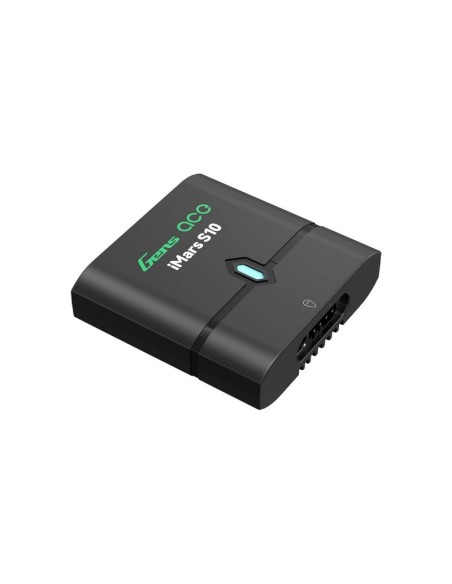

Gens ACE Imars S10 G-Tech LIPO / LIFE / NIMH battery charger

The Gens Ace iMars S10 G-Tech portable charger is specially developed to meet the needs of G-Tech batteries. It is also compatible with a wide range of non-G-Tech options commonly used in the airsoft industry. This versatile charger is suitable for batteries with capacities ranging from 250 mAh to around 3000 mAh. It supports common voltages of 7.4 V, 7.7 V, 11.1 V and 11.4 V, making it a versatile choice for different types of airsoft batteries. Equipped with an intelligent system, it is capable of automatically detecting whether the battery is a high-voltage type and selecting the most suitable charging mode for optimum charging, or, if the battery is not equipped with a G-Tech connector, it will use the standard charging protocol by default with a maximum voltage of 4.2V. This second option is suitable for both conventional and high-voltage batteries.

Features of the product:

• Maximum charging power: 10W
• Charging current: 0.8A max
• Load connector: only the balancing connector is authorised
• Input voltage: 5V
• Output voltage: 5-13.05V
• Input port: BC1.2/SDP/CDP/DCP/Apple 5 V/2,4 A (Not available for 5 V/1 A power adapter input)
• Abnormal battery voltage alarm: Yes
• Reverse output connection protection and alarm: Yes
• Reverse balance port connection protection and alarm: Yes
• Types of batteries supported: LiPo2-3S
• Operating temperature : 0°-45°C
• Storage temperature : -20°-60°C
• Dimensions: 51x51x14mm
• Weight: 23gr

Note: The charger only supplies the USB-C cable but no wall adapter.

Description of operating status indicator:

• Connected to power: x3 Flashing green
• Charging G-Tech battery: The red light flashes after two simultaneous red and green blinks
• Charging a non G-Tech Li-Po battery: Flashing red
• Full charge: Fixed green light
• Error warning: Fixed red light

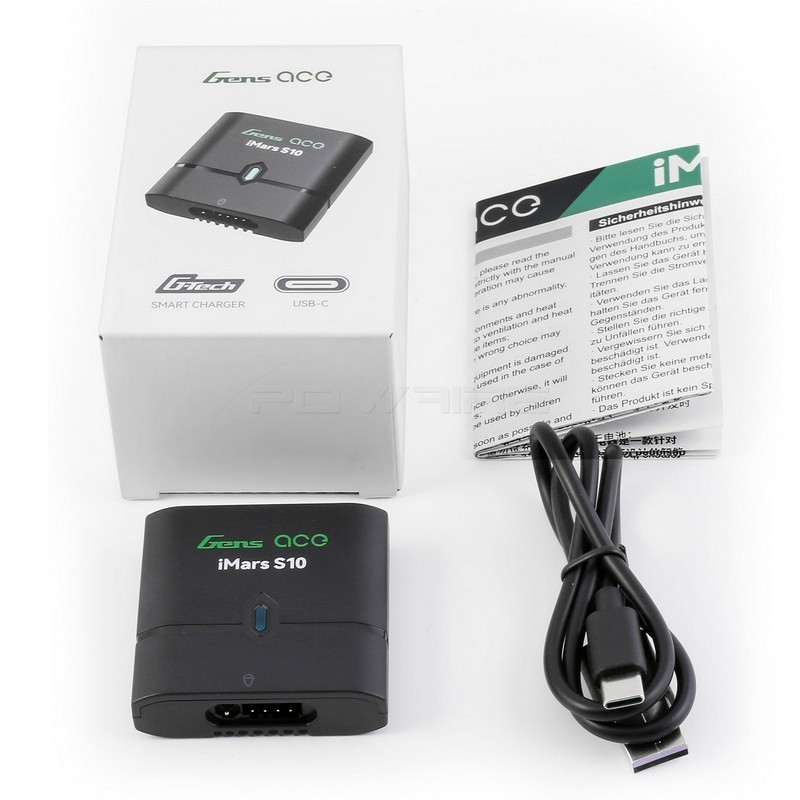

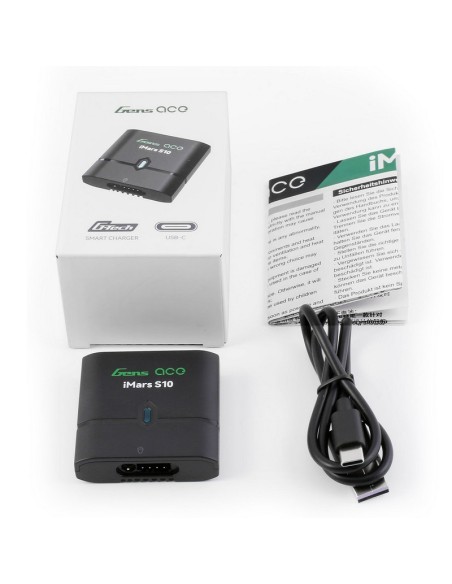

Contents of the box:

• IMars S10 G-Tech Smart Charger*1
• USB-C power cable*1
• Product Manual*1
