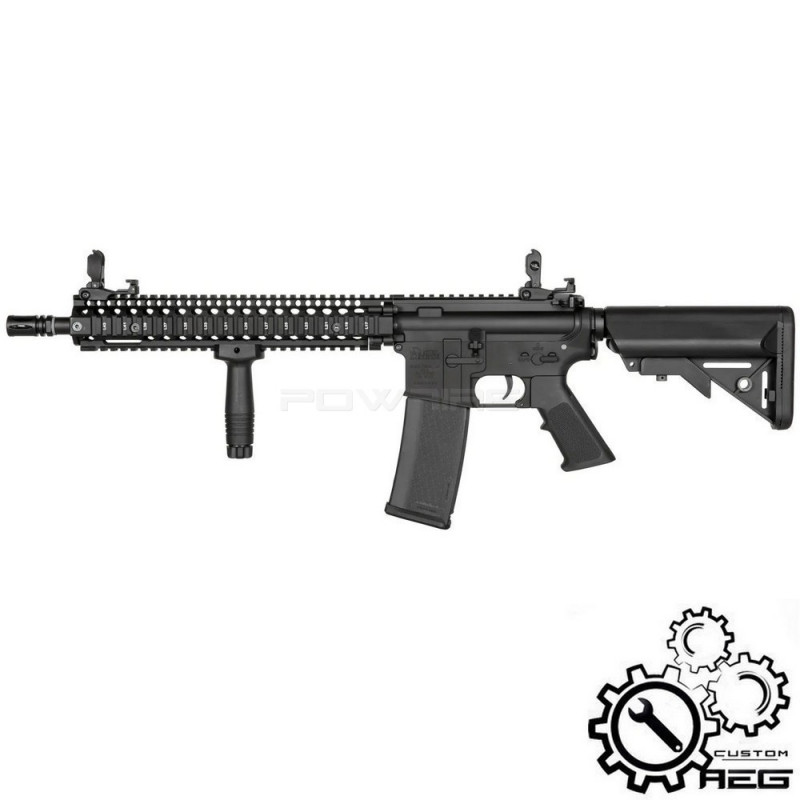

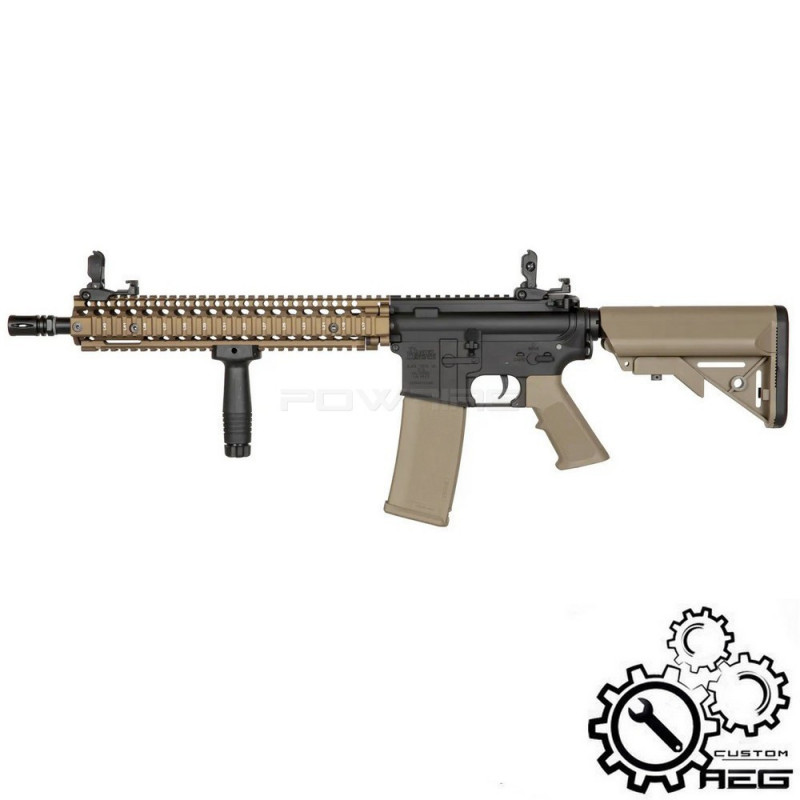

P6 Workshop Daniel Defense® MK18 SA-E26 EDGE™ custom AEG

The TITAN is the most advanced Mosfet in the Gate range. It is the first MOSFET in the world for Gearbox V2 to integrate 8 optical sensors, it has many interesting functions including:

• Active Braking Technology
• Increases responsiveness and rate of fire
• Electronic fuse
• Two programmable Precocking modes
• Trigger sensitivity in 5 modes.
• Programmable burst 1 to 3 shots
• compatible with 14.8v batteries
• No physical contactor: detection of the trigger tail, cut-off lever and selector plate is done with 5 sensors
• Programmable in firing mode with the possibility of adding a configurable burst mode to the replica.
• Low voltage detection for LIPO batteries.
• Version of the TITAN sold without the USB key and the programming card.

Content :

• 1x TITAN with rear wiring
• 1x Instructions

Improve the efficiency of your AEG with the ETU Kestrel V2, personalize with the E-Shooter App for iOS / Android. The Kestrel V2 is compatible with Tokyo Marui V2 gearboxes.

Compatible with high-speed, high-torque and brushless motors for more efficacity, the Active brake increase gearbox and Inside parts service life.

Pre-cocking includes up to 100 differents levels of precision for fine-tuned performance with all modes, enhancing trigger response. Five sensors detect trigger movement to control sensitivity, no disassembly is needed with the Eshooter App.

Two selectors offer various shots modes including SAFE, SEMI, BINARY, Burst, AUG, AUTO, and Sniper. The ROF CONTROL, allows you to adjust the shot speed for customizable shooting experiences.

Designed with a mini smart fuse and auto-fuse, protects and prevents MOSFET from overheating, overloading, and short circuit, and protects the motor and battery from damage. The KESTREL V2 monitor voltage to prevent LiPo/LiFe batteries from over-discharge, App sends a low battery warning.

Sleep mode activates after an hour of inactivity so as not to discharge the battery unnecessarily and it reconnects once the battery is reconnected.

The surface coating prevents the mosfet from differents adverse environmental influences.
The Teflon wires are made to resists to high températures and will not melt after long-term use. They supports 200A instantaneous current shock without damaging the circuit board.

• Memorizes up to 5 personalized mode
• Precocking : 100 differents levels
• 5 sensors to adjust the trigger sensibility
• Low battery advertissement
• 1 smart fuse and 1 auto-fuse to protect battery, motor from over-heating
• Adjuste the ROF in the Burst mode
• Active brake
• Compatible with brushless, high-speed and high-torque motors
• Sniper Delay mode : Increased interval firing times of 0.5s, 1s, 2s, or 3s for more control and accuracy

Different firing modes :

• SAFE Mode can prevent your gun from firing no matter where selector is
• SEMI Mode allows you one shot one round
• BINARY Mode allows you to pull trigger to fire one shot and release to fire again
• Burst Mode allows you to preset the number of BBs, which will play a import role when your gun is under the situation of MilSims and low-caps
• Aug Mode allows you to pull trigger slightly ( it depends on your trigger sensitivity setting) for one shot ,then continually pull to bottom change to AUTO mode
• AUTO Mode allows you to shoot ceaselessly until trigger is released
• Sniper Mode can be used with sniper delay function, simulate 2 stage safety and recoil

Improve your AEG with the Kestrel V2 BASIC.

Easy Programming, only 3 steps to finished your wanted setting, reset all functions with 8 seconds trigger hold.
Choose between 5 differents pre-cocking levels to programming. The KESTREL Basic have learning function which can automatically determine the position of pre-cocking stop based on different speeds and loads. It is normal for a single shot to fire a few more rounds after replug or unplug the battery.

Supports High-speed, High-torque et Brushless motors for more efficacity. It is compatible with most V2-type and V2 standard Tokyo Marui gearboxes.

The Active Break in an adaptive function to avoid gear instability, ensure piston stops in front position, increase gearbox and inside parts' service life.

Low Battery Protection, When the battery is low, motor vibrates 5 times and blue light flashes 5 times at the same time.

High quality, the KESTREL V2 Basic perfectly works even over 50k shots.
The Teflon wires are made to resists to high températures and will not melt after long-term use. They supports 200A instantaneous current shock without damaging the circuit board.

• Only 3 steps to finished your wanted setting
• Reset all functions with 8 seconds trigger hold
• Different 5 pre-cocking levels to programming
• Learning function which can automatically determine the position of pre-cocking stop based on different speeds and loads
• Active brake
• Optional gel blaster motor feeding function which can be from 0.5 to 3 seconds when battery connected
• Low Battery Protection : when the battery is low, motor vibrates 5 times and blue light flashes 5 times at the same time
• Support brushless and high-speed/high-torque motors

The Leviathan - V2 optical is one of the most advanced ETU (electronic trigger unit) on the market. It combines optical and switch sensors for better handling and durability.

• Build-in wireless communication for quick setup using iOS or Android smartphones!
• Tactile trigger switch has travel only 0,13mm long for ultimate hair trigger feeling
• Unique Real feel trigger system (RFTS) with integrated spring simulates trigger resistance like in the real gun. It adds secondary resistance with release after the fire. RFTS was designed by professional gunsmith for more realistic feel from shooting
• External output and input port serves for custom accessories
• Real time response for change settings -> immediately test result
• Easy installation into the gearbox (fully integrated inside the gearbox instead of the original trigger contacts)

MAIN FUNCTIONS:

• Adds new shooting modes independent for every position on the fire selector (SAFE - SEMI - AUTO)
• Three adjustable bursts (range 2 - 20 shots)
• It preserves empty magazine detection like the original gun
• Rate of fire can be reduce to 40%. It add breaks between shots to reduce RoF. It gives fast trigger response even with very low rate of fire, just like in a real gun
• Adjustable strength active braking (can be disabled)
• Pre-cocking function for instant shot on SEMI fire
• Delay between shots adds time in which isn't possible to shoot, it simulates the delay from gun reload or recoil (range 0,1 - 4,0 seconds)
• Electronic fuse set sensitivity for high current detection to avoid any damage if something goes wrong
• Low battery indication for 2S - 4S li-pol and 3S - 4S li-fe
• Virtual magazine simulates low capacity magazines, it will force the gun to stop shooting when it reach 0. There can be set warning after shot before empty magazine and how it will be reloaded
• On the board are input and output ports for controlling external devices or Leviathan
• Statistics screen shows shooting output with cycle timing, motor current consumption, rate of fire and temperatures. It allows you to do fine-tune gearbox upgrade
• Application shows actual battery voltage value. Color lines indicates battery charge status where green is OK, orange will warn after each shot and red will not allow to shoot
• User can save multiple settings under profiles
• Update function fixes bugs and adds new features to the device
• There are three shot counters. Total count every shot during the device lifetime. User counter can be reset by user anytime. Power-up counter is reset by battery connection
• Error log shows errors made during the device life also can be erased by user
• For better security wireless connection can be disable by the selector switch (can be deactivated)
• Leviathan monitors current, voltage and temperature to avoid any damage when something go wrong.
• Motor vibrates and beeps as a feedback for user
• Programmed settings are saved in the Leviathan memory immediately after their change, so you can immediately test it and settings aren't lost when is battery disconnected or lost connection with smartphone
• New functions are for free for every user via online update function

FIRE MODES:

• Independent for every position on the fire selector (SAFE - SEMI - AUTO)
• SAFE: no responding on the trigger pull.
• Semi: it fires single shot per trigger pull.
• Semi/BurstX: short trigger pull fires single shot, long trigger pull fires burst.
• Binary trigger: it fires single shot when trigger is pulled and another single shot when is released.
• BurstX: gun shoot burst per trigger pull.
• BurstX+BurstY: short trigger press fires burstX, long trigger press makes burstX+burstY fire.
• BurstX/Full: short trigger press fires burstX, long trigger press makes auto fire.
• Full: gun makes auto fire until releasing trigger.
• Virtual reload: pull trigger to reload virtual magazine

EXTERNAL INPUT:

• OFF: Every signal to Input terminal is ignored.
• External trigger: gun trigger is disabled and replaced by micro switch connected to Input (SIG and GND)
• Burst-3 trigger: micro switch connected to Input (SIG and GND) make 3 burst fire when it is pressed. Gun trigger is still functional.
• AUG trigger: selector plate detection is disabled. Gun trigger is set to selector on semi. Micro switch connected to Input (SIG, GND) is set to selector on auto.
• Empty mag (NO): Micro switch activates empty magazine detection, when is connected SIG with GND.
• Empty mag (NC): Micro switch activates empty magazine detection, when is disconnected SIG with GND.
• Virtual reload: Micro switch activates virtual magazine reload, when is connected SIG with GND.

EXTERNAL OUTPUT:

• OFF: output terminal works only if the Input terminal activates it.
• Motor: output terminal is ON with gun motor + with IN activation.
• Motor + Xs: output terminal is ON with gun motor with time delay after gun motor is deactivated + with IN activation.
• Always on: the output terminal is constantly activated.

Leviathan – V2 optical supports these airsoft guns:

• M4, M16, HK416, AR15 with V2 gearbox according to TM design
• M4 with V2 gearbox from Krytac company
• SR25 with V2 gearbox according to TM design
• MP5 with V2 gearbox according to TM design
• G3 with V2 gearbox according to TM design
• M249 with V2 gearbox according to TM design
• M107 BARRETT from Snow wolf company
• And others ...

Leviathan - V2 optical is not compatible with these gearboxes:

• KWA gearbox V2.5
• S&T or Arcturus gearbox V2
• ICS SSS gearbox V2
• Ares Amoeba gearbox V2
• G&G G2 gearbox V2
• APS silver edge gearbox V2
• Gearbox V2 with microswitch
• And others ...

 TECHNICAL SPECIFICATIONS:

Easy installation inside the gearbox version 2, compatible with Tokyo Marui standard : You don‘t have to modify the gearbox V2 from the Krytac company. Simply cut the Leviathan bottom board. It uses optical sensor actuated by sector gear cam for perfect semi and burst fire timing. For fire selector position is used optical sensor too - it works with sticker provided with Leviathan

• Tactile trigger switch makes short click for great hair trigger mod.
• Unique real feel trigger system (RFTS) simulates trigger feeling like in the real gun. It adds secondary resistance with release after the fire. Feeling is comparable to shooting with real caliber 22lr in AR15
• Thanks to advanced electronics, Leviathan - V2 optical can be used with any common gearbox upgrade and gun rate of fire
• Completely made wiring allows the fastest and the easiest installation into the gun, it is long enough for all kind of weapons with battery placed in the front. No soldering is needed
• For easier installation, there are connectors on the battery cables for disconnecting part with the T-plug connector and fuse
• The wire length between the gearbox and the battery connector is 385mm
• There are high quality power wires 1,5 qmm (AWG16) with thin and hard MPPE insulation and signal blue wire 0.34 qmm (AWG24) with MPPE insulation
• Power wires outer diameter is only 2,06 mm and blue wire 1,24 mm
• Board covered by conformal coating, it protect Leviathan against damage from water
• On the board is input port for controlling output port, 3rd burst, external trigger, magazine reload, etc. and output port for the hop-up chamber BBs illumination, powering electric magazine, flashlight, laser, etc.
• For right pre-cocking function is necessary to have in the gearbox functional antireverse latch. WARNING: it increases wear and tear on the gearbox.
• Specified for common batteries up to 17V (Ni-xx 8.4 - 12V, lipol 7.4 - 14.8V)
• Device increases gun rate of fire and battery holds longer, than with basic wiring
• With active braking ON piston isn't partially stretched, spring is fully released, parts in mechabox aren't under strain and nozzle locks hop-up chamber in greater part (depends on ROF)
• In weapons with very high rate of fire (ROF) active brake solves multiple shots in semi mode
• The braking effect is the most powerful with high torque motor. Note: Lower braking intensity spares the motor coils.
• Remove from the gearbox: cut off lever, trigger, trigger contacts and trigger block, you will not need them with the Leviathan - V2 optical

PACKING:

• Leviathan - V2 optical drop-in electronic module with wiring to rear, T-plug connector, 40A mini fuse and faston connectors to the motor
• Screw with washer for securing device in the gearbox
• Foam to keep device in place

SAFETY WARNING:

• Installation of this device into the gearbox requires advanced technician skills!
• Please read these informations before installing your device to prevent any damage.
• Short circuit or incorrectly connected battery will cause immediate damage to the device which is not covered by the warranty. It can lead to fire or even battery explosion.
• Disconnect battery, when you aren't using the gun! Otherwise you will fully discharge the battery. Because the device drains small amount of current from the bettery all the time.
• Do not connect battery when gun pointing towards you, another person or an animal.
• Do not modify, repair and put into any kind of liquids or thermal shock the Leviathan - V2 optical.

The Scylla - V2 optical is advanced ETU (electronic trigger unit) on the market, it combines optical and magnetic sensors for better handling and durability.

• Built-in wireless communication for quick setup using iOS or Android smartphones!
• Trigger adapter with magnet is compatible with any standard trigger (could not be used with Jefftron / Leviathan triggers) so you can adjust the sensitivity conveniently from the app
• Real time response for change settings -> immediately test result
• Easy installation into the gearbox (fully integrated inside the gearbox instead of the original trigger contacts)

The Scylla offers everything you would expect from a processor unit:

• binary trigger
• burst fire
• trigger sensitivity
• rate of fire reduction
• piston precocking
• Li-Po alarm
• statistics and much more
• New functions are for free for every user via online update

MAIN FONCTIONS:

• Fire selection mode (SEMI-BINARY-BURST-AUTO)
• Reduced rate of fire (adjustable from 40% to 100%)
• Active Brake (100% adjustable)
• Precocking (improves trigger response by leaving the piston in the rear position after each shot - ONLY IN SEMI MODE)
• Electronique Fuse (Protects the device in case of a short circuit on the wires to the motor)
• LI-PO Alarm (Indicates when the battery nees to be replaced)
• Compatible Brushless motor (Warhead, Option n.1..) just needs to activate the option in the app
• Statistics (rate of fire, total number of shots, cycle time,temperature of the mosfet, battery voltage..)

Compatible with:

• M4, M16, HK416, AR15 with V2 gearbox according to TM design
• M4 with V2 gearbox from Krytac company
• SR25 with V2 gearbox according to TM design
• ICS SSS gearbox V2
• MP5 with V2 gearbox according to TM design
• G3 with V2 gearbox according to TM design
• G&G G2 gearbox V2
• M249 with V2 gearbox according to TM design
• M107 BARRETT from Snow wolf company
• And others …

Not compatible with:

• KWA gearbox V2.5
• S&T or Arcturus gearbox V2
• Ares Amoeba gearbox V2
• APS eSilver edge gearbox V2
• Gearbox V2 with microswitch
• And others ...

Trigger and gearbox are not included

The DTU V1.42 for Tokyo Marui V2 gearbox is a multifunctional MOSFET switch. Specifically designed for AIRSOFT, Gel Ball Blaster, other V2 gearboxes with semi-automatic and fully automatic functions. this mosfet version is already wired.

Functions:

• Supports up to 14.8V battery.
• Binary trigger. Put the selector in semi-auto position, pull and hold the trigger for 3 seconds will change the semi-auto function into binary trigger shooting mode.
• Auto-loading function is designed for gel ball blaster magazines with motor inside, when changing the magazine, the magazine motor will run automatically for 0.5 second.
• PRE-COCKING.The default postition of the piston is adjustable is semi-auto model.Per-cocking function can be implementing,zero trigger delay.
• DTU overheat protection.When the DTU is overheated,after the trigger is pulled,the motor will give a beep prompt until it is automatically restarted after cooling.
• Low battery voltage protection：the default setting is 7.4V battery.Change the battery when hearing‘beep，beep，beep，beep’4 times low voltage warning sound.
• Active braking.The energy that support the active brake function comes from the inertia of motor, stop the piston without delay. The effect of active brake is significant on high torque motor.
• Fast speed of respond.This module is powered by small current，the current flow through the MOSFET directly to the motor，provide higher current to increase the rate of fire and speed of respond.
• Block-up protection.When gearboxBlock-up occurs, the system stops working and emits an elongated 'beep' sound. Please check the wave box immediately by power off.
• Multiple shooting modes.The system includes multiple shooting modes，those modes can be selected by fire select switch.
• Gearbox protection.The active brake prevents the over-spin of gears,this solve the issue that single shot changes to multiple shot under high voltage.meanwhile,the spring is fully released in semi-auto model and parts in the gearbox are not under strain,increase the life cycle of your gearbox.

Package Included:

• 1 X Digital trigger unit V1.42
• 1 X English Manual
• 1 X Badge
• 1 X Small bag accessories

The DTU V1.7 optical Sensor Version for V2 Tokyo Marui gearbox is a multifunctional MOSFET switch. Specifically designed for AIRSOFT, Gel Ball Blaster, other V2 gearboxes with semi-automatic and fully automatic functions. this mosfet version is already wired.

Functions:

1. Supports up to 14.8V battery.
2. Binary trigger. Put the selector in semi-auto position, pull and hold the trigger for 3 seconds will change the semi-auto function into binary trigger shooting mode.
3. Auto-loading function is designed for gel ball blaster magazines with motor inside, when changing the magazine, the magazine motor will run automatically for 0.5 second.
4. PRE-COCKING.The default postition of the piston is adjustable is semi-auto model.Per-cocking function can be implementing,zero trigger delay.
5. ETU overheat protection.When the DTU is overheated,after the trigger is pulled,the motor will give a beep prompt until it is automatically restarted after cooling.
6. Low battery voltage protection：the default setting is 7.4V battery.Change the battery when hearing‘beep，beep，beep，beep’4 times low voltage warning sound.
7. Active braking.The energy that support the active brake function comes from the inertia of motor, stop the piston without delay. The effect of active brake is significant on high torque motor.
8. Fast speed of respond.This module is powered by small current，the current flow through the MOSFET directly to the motor，provide higher current to increase the rate of fire and speed of respond.
9. Block-up protection.When gearboxBlock-up occurs, the system stops working and emits an elongated 'beep' sound. Please check the wave box immediately by power off.
10. Multiple shooting modes.The system includes multiple shooting modes，those modes can be selected by fire select switch.
11. Gearbox protection.The active brake prevents the over-spin of gears,this solve the issue that single shot changes to multiple shot under high voltage.meanwhile,the spring is fully released in semi-auto model and parts in the gearbox are not under strain,increase the life cycle of your gearbox.

Package Content:

• Digital trigger unit V1.7     X1
• Manual     X1
• Badge    X1
• Small bag accessories    X1

Shooting Modes:

• SAFE:This model is completely the same as original safe model.The trigger is stopped by safety lever.
• SEMI:This model can be programmed to implementing semi-auto,double stroke single shot,3-rounds burst to 6 rounds burst,the default model is semi auto.
• AUTO:This model can be programmed to implementing full-auto,3-round burst,6-round burst and 9-round burst,the default model is full-auto.

The V2.0 for V2 bluetooth version gearbox is a multifunctional MOSFET switch which can be programmed by smart phone via bluetooth.

• Adopts a high speed processor, 8 optical sensors and 2 high power MOSFET chips.
• Designed for AIRSOFT, Gel Ball Blaster and other V2 gearboxes with semi-automatic and fully automatic functions.

Features:

1. Supports up to 14.8V battery.
2. Bluetooth module : Integrated bluetooth wireless communication module, use smart phone to program through bluetooth, can download Android / IOS free APP.
3. Binary trigger : Put the selector in semi-auto position, pull and hold the trigger for 3 seconds will change the semi-auto function into binary trigger shooting mode.
4. Auto-loading function is designed for gel ball blaster magazines with motor inside, when changing the magazine, the magazine motor will run automatically for 0.5 second.
5. PRE-COCKING.The default postition of the piston is adjustable is semi-auto model.Per-cocking function can be implementing,zero trigger delay.
6. ETU overheat protection.When the DTU is overheated,after the trigger is pulled,the motor will give a beep prompt until it is automatically restarted after cooling.
7. Low battery voltage protection：the default setting is 7.4V battery.Change the battery when hearing‘beep，beep，beep，beep’4 times low voltage warning sound.
8. Active braking.The energy that support the active brake function comes from the inertia of motor, stop the piston without delay. The effect of active brake is significant on high torque motor.
9. Fast speed of respond.This module is powered by small current，the current flow through the MOSFET directly to the motor，provide higher current to increase the rate of fire and speed of respond.
10. Block-up protection.When gearboxBlock-up occurs, the system stops working and emits an elongated 'beep' sound. Please check the wave box immediately by power off.
11. Multiple shooting modes.The system includes multiple shooting modes，those modes can be selected by fire select switch.
12. Gearbox protection.The active brake prevents the over-spin of gears,this solve the issue that single shot changes to multiple shot under high voltage.meanwhile,the spring is fully released in semi-auto model and parts in the gearbox are not under strain,increase the life cycle of your gearbox.

Modes:

• Safe – This mode is completely the same as original safe mode. The trigger can be pulled but nothing happens. The default mode is safe, however this mode can be programmed to semi-auto, double stroke single shot, 3-round burst to 6-round burst.
• Semi – The default mode is semi, however this mode can be programmed to semi-auto, double stroke single shot, 3-round burst to 6-round burst.
• Auto – The default mode is full-auto, however this mode can be programmed to full-auto, 3-round burst, 6-round burst, or 9-round burst.

Package Content:

• Digital trigger unit V2.0   X1
• Manual    X1
• Badge     X1
• Small bag accessories   X1
• Insulation sticker   X1

Brand new TITAN II Bluetooth® for V2 GB AEG is GATE flagship Electronic Trigger Unit (ETU) - Expert version

Built-in Bluetooth 5.2 technology gives you direct access to TITAN settings, AEG telemetry and ability to use smartwatch, STATUS and other future devices of GATE Ecosystem. Innovative gear sensor not only counts gears, but also as first in the world determines the direction of a gear rotation, offering you the most precise cycle control in AEGs. Mind-blowing optical trigger sensor allows you for setting hair trigger with ludicrous precision: 50 sensitivity levels for the first millimetre of trigger movement, keeping TITAN V2 sensor advantages. TITAN II Bluetooth® is equipped with a multifunctional port ready for connecting additional accessories such as bolt-catch, magazine sensor, tracer in hop-up chamber and others.

What makes TITAN II Bluetooth® so special?

• Mind-blowing trigger sensor with the TITAN V2 sensor advantages and ability to set hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement
• Brand new patented gear sensor, as first in the world, detects each tooth and the direction of gear movement what allows for extremely precise cycle control
• Mechanical protection of trigger sensors increases reliability. A potential trigger sensors' damage is now covered by the warranty.
• Ultra-precise telemetry measurements thanks to the new current sensor
• Pre-cocking can be set in %
• Built-in voltage boost converter. Trouble-free operation in low temperatures
• Multifunctional programmable port ready for connecting:
• Hop-up chamber to tracer and sensors
• Bolt-catch button
• HPA Engine (Single solenoid, dual solenoid engine you need an additional cable ,accessory sold separately)
• Electric Magazine
• Magazine sensor
• Flashlight

User-friendly GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS

TITAN II can be connected with smartwatch out-of-the-box
Compatibility with GATE Ecosystem including GATE STATUS and future hop-up chamber with tracer

Lowest in the market current consumption. Deep sleep mode with only 0.1 mA current consumption prevents battery discharge (3x lower consumption than in current ETUs, which already had the lowest current consumption on the market).

Multifunctional port:

• 2x I/O port
• UART / I2C communication
• Programmable power supply with eFuse
• Current: max 5.4A peak and 1.5A constant current
• Voltage: same as battery voltage

Compatible accesories :

• Power supply cable (GEL BLASTER / Electric Magazine / Tracer)
• Cable for single solenoid HPA
• Cables for dual solenoid HPA
• Divider ready for connecting many accessories (you can connect 1x power supply cable and 2x I/O cable)
• Universal I/O cable for max. 2 DIY accessories (Bolt-catch, Magazine sensor, Flashlight)
• Bolt-catch with button and cable (ready to connect)
• Magazine sensor with cable (ready to connect)

The kit contains:

• 1 x TITAN II Bluetooth Mosfet - T-dean
• 1 x Installation Kit
• 1 x patch Gate Titan II

The version of the TITAN II Gate AEG mosfet can be converted for a version working in HPA which would control 1 or 2 soleinoid like the Jack or Polarstar F2, Wolverine Inferno.. (accessory sold separately)

TITAN V2 Advanced Set is an AEG Control System for V2 gearboxes which will transform your airsoft gun into an advanced training weapon. Adjust your AEG and check the Statistics using USB-Link and GATE Control Station app for PC and Android devices. TITAN V2 enables you to adjust the trigger sensitivity with military precision. The innovative proximity trigger sensor offers you even 250 possible sensitivity settings. Gain a tactical advantage thanks to the extremely fast trigger response and many other useful functions.

Advanced Set:

The best for those who like complex solutions. Advanced version with wide variety of functions. It enables access to the Statistics and TITAN World Rankings.

TITAN gives you the option to adjust:

• Trigger sensitivity
• Pre-cocking boost
• Fire selector mode
• Burst mode
• Rate of fire
• Low battery warning
• Battery protection
• Sniper delay

  TITAN has no less than eight sensors!


• 1 gear sensor
• 2 selector sensors
• 5 trigger sensors

  Thanks to the gear sensor you get:
• Automatic BURST - there is no need to set burst time. You can set burst between two and 10 shots;
• Automatic PRE-COCKING - Pre-cocking is fully operational in SEMI, BURST and AUTO mode and there is no need to set pre-cocking boost manually. You can easily set the pre-cocking as high, mid or low;
• FULL CYCLE - when the precocking is off, TITAN ensures that the gearbox always makes full cycles.

  You can trust TITAN because:


• Every time you pull the trigger gearbox completes the correct cycle. The gears stop exactly where they should. The gearbox works efficiently.
• It is protected against short-circuits, overheating and overloading
• It protects the battery against over-discharge
• It significantly improves battery life, rate of fire, spring life and gearbox reliability (when pre-cocking is off)
• It is compatible with the strongest AEG replicas and batteries (ready to use with LiPo 14.8V, 5000 mAh, 60C)

  Why TITAN is so special?
• It has a user-friendly configuration via the Tactical Programming Card and/or GATE Control Station
• It has option to make firmware updates via the internet
• It has innovative optical sensors instead of mechanical switches that can be prone to faults
• It replicates a trigger response like in a real gun
• It replaces the cut-off lever
• It is compatible with DSG and SSG gears
• It is compatible with most v2 gearboxes (including cnc) on the market without any modification

  Kit contents:
  TITAN Drop-in Version 2 Module
  USB-Link
  USB Cables
  Installation Kit
  Quickstart Guides

  Here's a link to its manual which is available in English, Spanish, French, Italian and Polish:

  https://www.gatee.eu/manuals

Warning : In case of issue with the product assembled by yourself, manufacturer warranty policy will apply directly, there will be no direct  exchange or refund.
