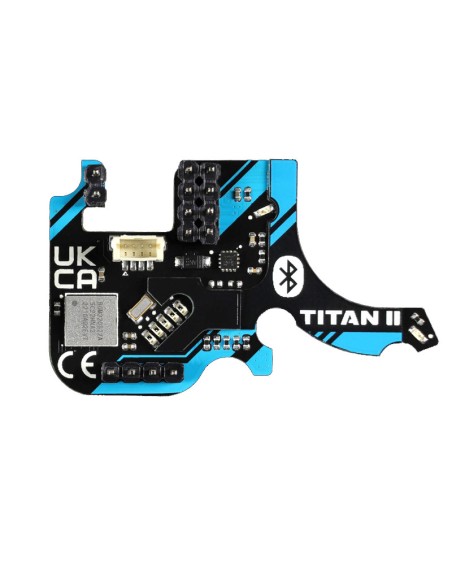

GATE TITAN II Expert version Bluetooth for V2 GB HPA - Rear Wired

TBT2-HER

New product

Out of stock - No date of restock

Moyenne des votes pour ce produit
5.0 / 5
Moyenne : 5.0 / 5
Basée sur 3 avis clients.

116,58 € tax excl.

Si vous souhaitez enregistrer votre configuration, vous devez d'abord vous connecter.

Connexion

More info

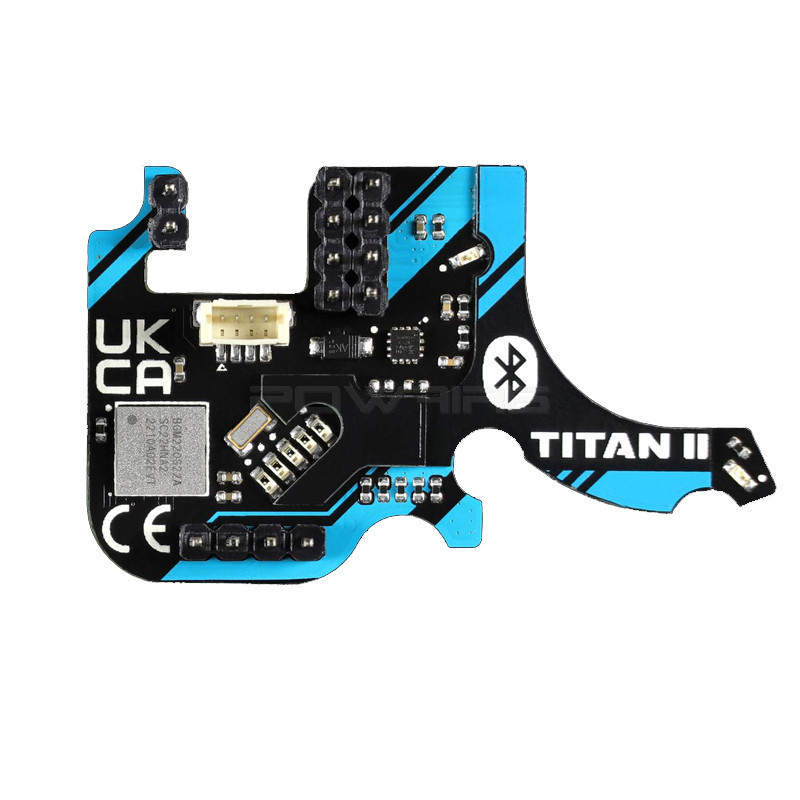

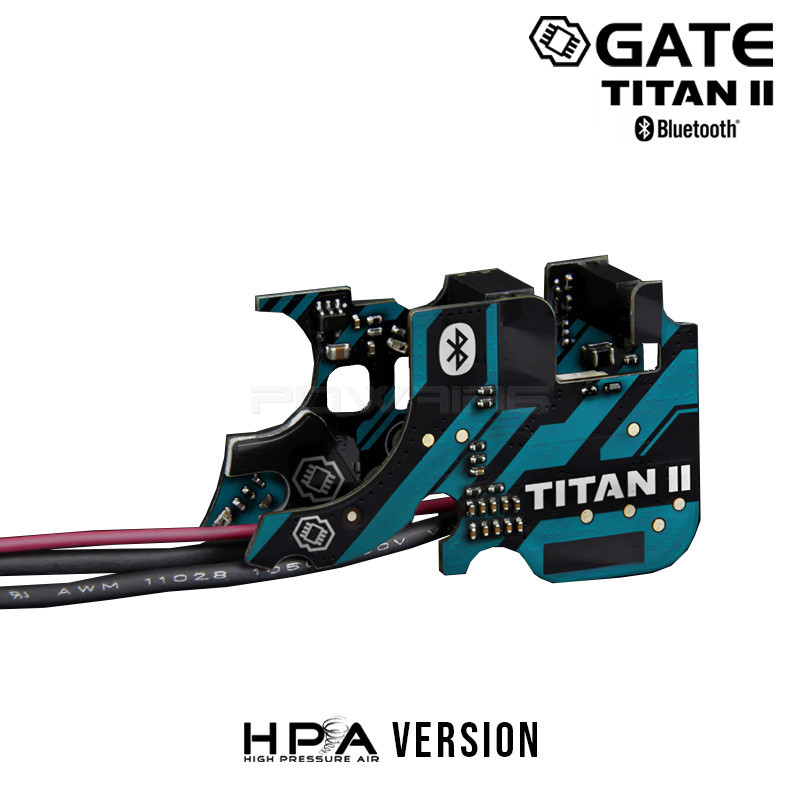

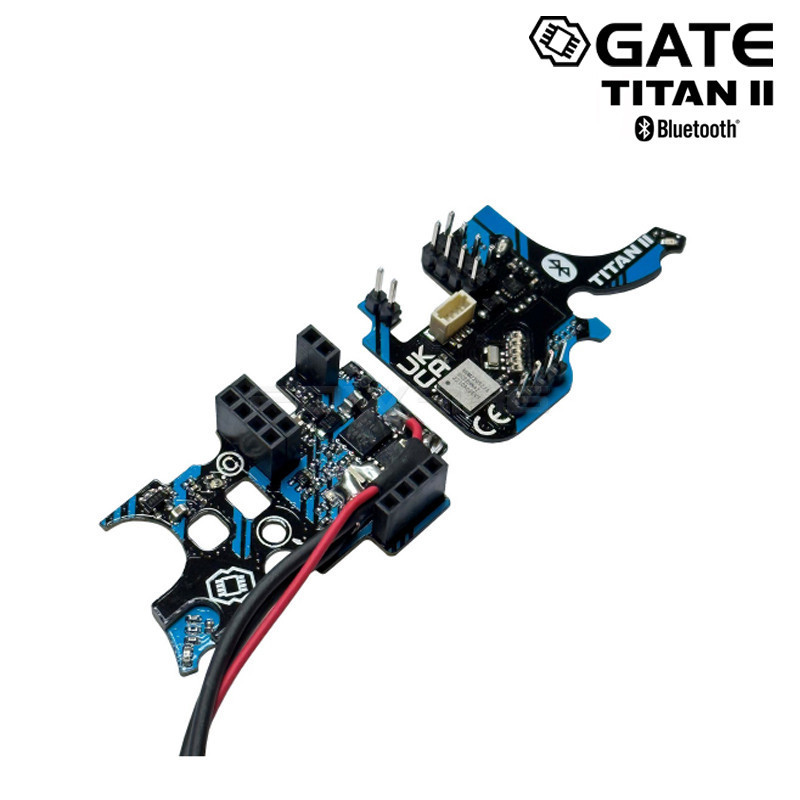

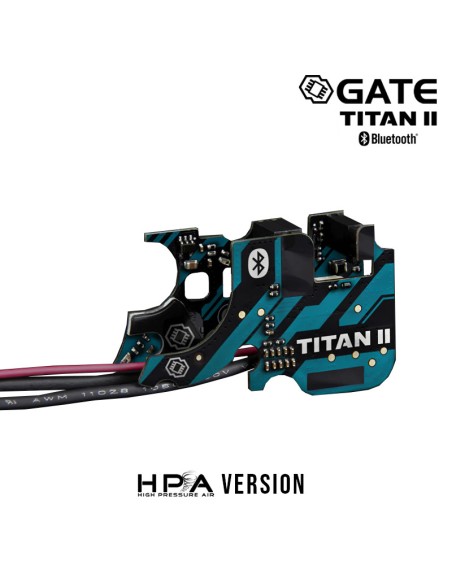

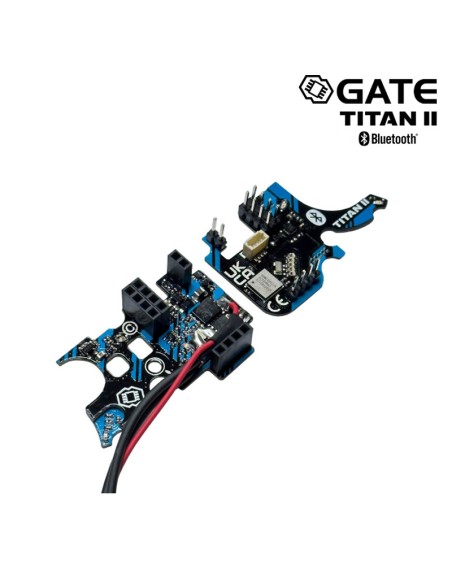

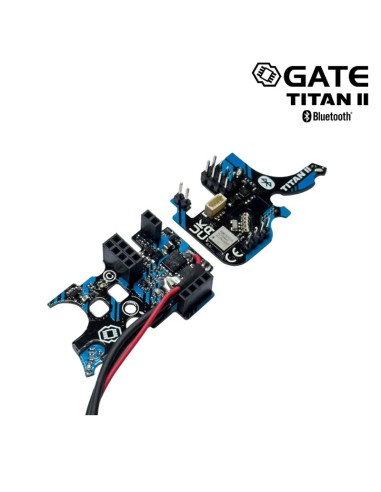

Brand new TITAN II Bluetooth® for V2 GB HPA - Expert  version

This HPA version will allow you to connect 1 to 2 soleinoids, which makes it compatible with:

  • Polarstar Jack
  • Polarstar F2
  • Gate Pulsar
  • Wolverine Inferno gen II
  • Wolverine Reaper gen II electro-pneumatic version
  • Wolverine Hydra
  • Redline N7 electro-pneumatic version

Built-in Bluetooth 5.2 technology gives you direct access to TITAN settings, AEG telemetry and ability to use smartwatch, STATUS and other future devices of GATE Ecosystem. Innovative gear sensor not only counts gears, but also as first in the world determines the direction of a gear rotation, offering you the most precise cycle control in AEGs. Mind-blowing optical trigger sensor allows you for setting hair trigger with ludicrous precision: 50 sensitivity levels for the first millimetre of trigger movement, keeping TITAN V2 sensor advantages. TITAN II Bluetooth® is equipped with a multifunctional port ready for connecting additional accessories such as bolt-catch, magazine sensor, tracer in hop-up chamber and others.

What makes TITAN II Bluetooth® so special?

  • Mind-blowing trigger sensor with the TITAN V2 sensor advantages and ability to set hair trigger with ludicrous precision: even 50 sensitivity levels for the first millimeter of trigger movement
  • Brand new patented gear sensor, as first in the world, detects each tooth and the direction of gear movement what allows for extremely precise cycle control
  • Mechanical protection of trigger sensors increases reliability. A potential trigger sensors' damage is now covered by the warranty.
  • Ultra-precise telemetry measurements thanks to the new current sensor
  • Pre-cocking can be set in %
  • Built-in voltage boost converter. Trouble-free operation in low temperatures
  • Multifunctional programmable port ready for connecting:
  • Hop-up chamber to tracer and sensors
  • Bolt-catch button
  • HPA Engine (Single solenoid, dual solenoid engine you need an additional cable ,accessory sold separately)
  • Electric Magazine
  • Magazine sensor
  • Flashlight

User-friendly GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS


TITAN II can be connected with smartwatch out-of-the-box
Compatibility with GATE Ecosystem including GATE STATUS and future hop-up chamber with tracer


Lowest in the market current consumption. Deep sleep mode with only 0.1 mA current consumption prevents battery discharge (3x lower consumption than in current ETUs, which already had the lowest current consumption on the market).

Multifunctional port:

  • 2x I/O port
  • UART / I2C communication
  • Programmable power supply with eFuse
  • Current: max 5.4A peak and 1.5A constant current
  • Voltage: same as battery voltage

93439.jpg?time=1675330942483

Compatible accesories :

  • Power supply cable (GEL BLASTER / Electric Magazine / Tracer)
  • Cable for single solenoid HPA
  • Cables for dual solenoid HPA
  • Divider ready for connecting many accessories (you can connect 1x power supply cable and 2x I/O cable)
  • Universal I/O cable for max. 2 DIY accessories (Bolt-catch, Magazine sensor, Flashlight)
  • Bolt-catch with button and cable (ready to connect)
  • Magazine sensor with cable (ready to connect)

The kit contains:

  • 1 x TITAN II Bluetooth Mosfet - JST

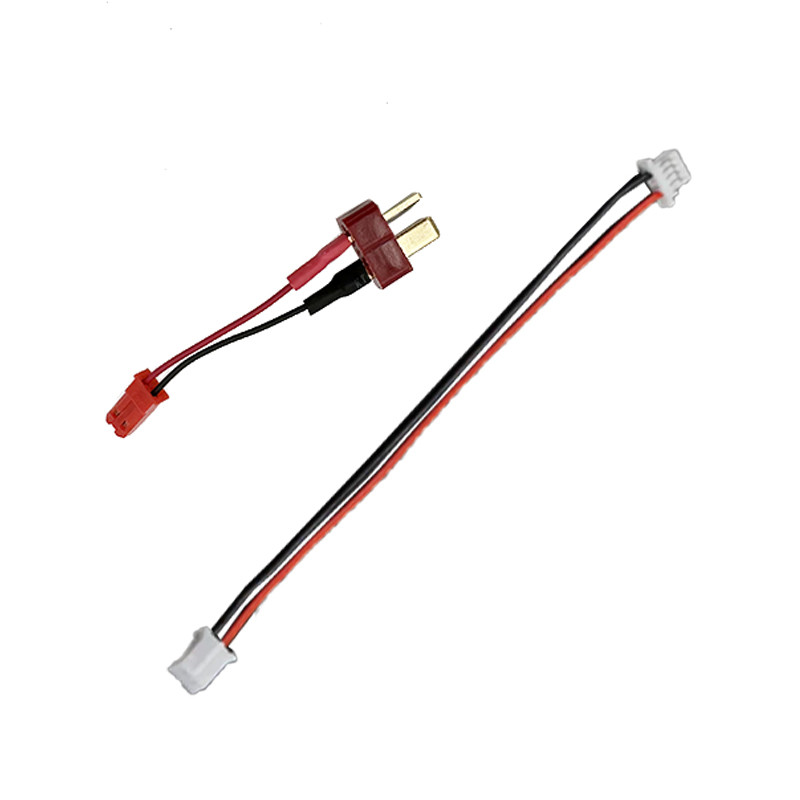

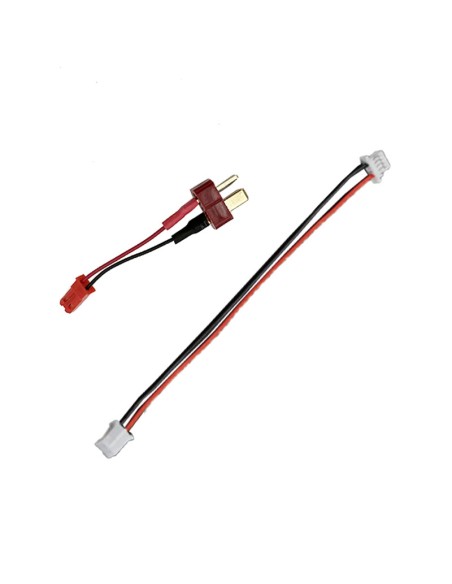

  • 1 x JST to T-dean conversion cable
  • 1 x cable to connect 1 additional soleinoid
  • 1 x installation kit
  • 1 x patch Gate Titan II

93455.jpg?time=1675337352186


The version of the TITAN II Gate HPA mosfet cannot be converted to a version working in AEG.

Data sheet

Integrated MosfetTitan
Trigger SystemElectronic
Battery ConnectorJST

GATE

GATE

The GATE mission statement:  ‘To give every airsoft player a more exciting experience and to provide them with access to the most up-to-date technology for their airsoft games’ is well taken to heart by the company’ staff. Every product at GATE goes through advanced technology process. Prototypes are designed using modern software and sophisticated hardware. We rely on reliability and miniaturization.

Beginning in 2014, each product, prior to its introduction to the market, is tested by 50 independent beta-testers. Thanks to our long-term research, meticulous tests and our experience, our products are reliable and can operate under most harsh conditions. All products comply with ROHS 2 and meet CE standards. Electronic circuits are being made using modern technologies. SMD 0603 components and 8 mils traces are our standard. High-density multi-layer PCBs allow large scale miniaturization. In high power circuits, we use most powerful transistors available on market: HEXFET Power MOSFETs International Rectifier, NXP N-channel logic level MOSFET in LFPAK using NextPower technology, Vishay P-channel MOSFET in PowerPAK SO-8 using TrenchFET technology. Because of an optimised output capacitance, body diode and channel structure, MOSFETs exhibit “soft-recovery” switching behaviour, resulting in lower voltage spikes, faster decays and virtually no gate glitches. Moreover, increasing switching frequency from 300KHz to 1MHz allows a 70 - 80% reduction in inductor size. MOSFETs' excellent switching performance enables such design choices with minimal loss of efficiency.

For eight years, our company has been designing and producing the most innovative AEG Control Systems and MOSFETs. We have premises located in Cracow, Poland. Our products successfully entered global markets and are being sold in more than 20 countries.  Why should you choose GATE while upgrading your gun? Thanks to our products, your skirmish becomes a more exciting experience. The variety of functions and protections our Controllers and MOSFETs give to your gun is enormous.

See all products from GATE

Questions  (15)

A partir de Sebastien | 2023-12-03 20:30:57

Bonjour serait il compatible avec une fusion engine svp ?

Powair6

Bonjour;
non il ne sera pas compatible.
Cordialement.

A partir de Matthieu | 2023-10-13 09:30:02

Bonjour je l’ai monté sur ma m4 il fonctionne parfaitement mais y’a t’il une différence entre le basic, le advanced, et le expert
Car j’aimerais savoir les différences que cela apporte sur l’application et la replique

Powair6

Bonjour;
le fait de passer en advanced ou expert vous débloquera quelques paramètres supplémentaires sur l'application.

https://gatee.eu/products/gate-titan-ii-bluetooth-for-v2-gb?variant=40066612691018

Cordialement.

A partir de Matthieu | 2023-10-09 09:58:46

Bonjour quel gachette faut t’il prendre pour le titan

Powair6

Bonjour;
vous pouvez utiliser une détente AEG V2 classique.
Cordialement.

A partir de David | 2023-09-28 12:44:36

bonjour a vous je voudrai savoir si il y a des modifaction a faire pour un polar f2 merci a vous

Powair6

Bonjour;
non pas de modifications requises.
Cordialement.

A partir de Jürgen | 2023-06-28 08:02:34

Is the Titan plug and play with the Wolverin Inferno gen2 Spartan?

Powair6

Hello,
yes it will be compatible.
Best regards.

A partir de Nils | 2023-06-12 12:03:28

Does it also work with the wolverine Inferno gen 1?

Powair6

Hello,
no it will not be compatible.
Best regards.

A partir de bjarke | 2023-06-01 21:16:02

does the contain all the cables I need for my f2 to work, or will i require to buy more cables for the duel solenoid system.

if so can link the product i need

Powair6

Good morning;
yes there will be all the necessary wiring for your F2.
Best regards.

A partir de tristan | 2023-04-18 08:11:48

J’ai acheter un kit hpa wolverine inferno gen2 spartan édition est-ce que ce Mosfet sera compatible ?

Powair6

Bonjour;
oui il sera compatible.
Cordialement.

A partir de Kevin | 2023-04-16 11:59:55

Bonjour j’ai acheté le titan 2 hpa coupler avec un polarstar f2 je n’arrive pas à régler les temps de vannes je pense j’ai une grosse consommation d’aire je suis en canon 6,20 263 mm
Ci vous avez un réglage à me proposer je vous remercie d’avance

Powair6

Bonjour;
n'hésitez pas au nous contacter par téléphone et demander Nicolas pour voir les paramètres que vous utiliser et ce qui serons le plus adaptés.
Cordialement.

A partir de Mario | 2023-03-25 12:22:52

Hello,
i see it is compatible with Wolverine Inferno GEN2, but which firmware version does it come with (BASIC, ADVANCED or EXPERT)?
Many thanks and kind regards,
M.

Powair6

Good morning;
this is the basic version.
Best regards.

Page: 12
Seuls les utilisateurs enregistrés peuvent poser une question. Login

Avis (3)

Seuls les clients enregistrés peuvent poster un avis. Connectez-vous ou créez un compte .
Tri:
5/5
Très bien
Envoi rapide, bien emballé, conforme, retour et remboursement OK, merci beaucoup.
Cet avis a été posté pour GATE TITAN II Expert version Bluetooth for V2 GB HPA - Rear Wired
5/5
Super produit.
Un produit super d une haute qualité et très précise. Attention a bien remplies chaque données notamment par rapport a la batterie par ce que j ai eu quelques difficultés a tiré ????
Cet avis a été posté pour GATE TITAN II Expert version Bluetooth for V2 GB HPA - Rear Wired
5/5
tuerie !
Le titan 2 est très très cool. Les système HPA était plutôt limité par leur triggerboard, pas de capteur optique ou autre, cela était réserver au AEG, mais avec le Titan 2 ... TOUT ce qu'il était possible de faire avec le titan est maintenant dispo pour nos réplique HPA, avec en supplément les réglages propres au HPA. En plus de ça, c'est limite du plug and play, faut quand même démonter la gearbox, mais le montage est très simple. Ma M4 BCM VFC a reçu un belle upgrade, le binary + HPA est abuser, a utiliser avec parcimonie.
Cet avis a été posté pour GATE TITAN II Expert version Bluetooth for V2 GB HPA - Rear Wired
