> >>5L Compressor 230 bar compact HPA PCP electric
5L Compressor 230 bar compact HPA PCP electric - View larger

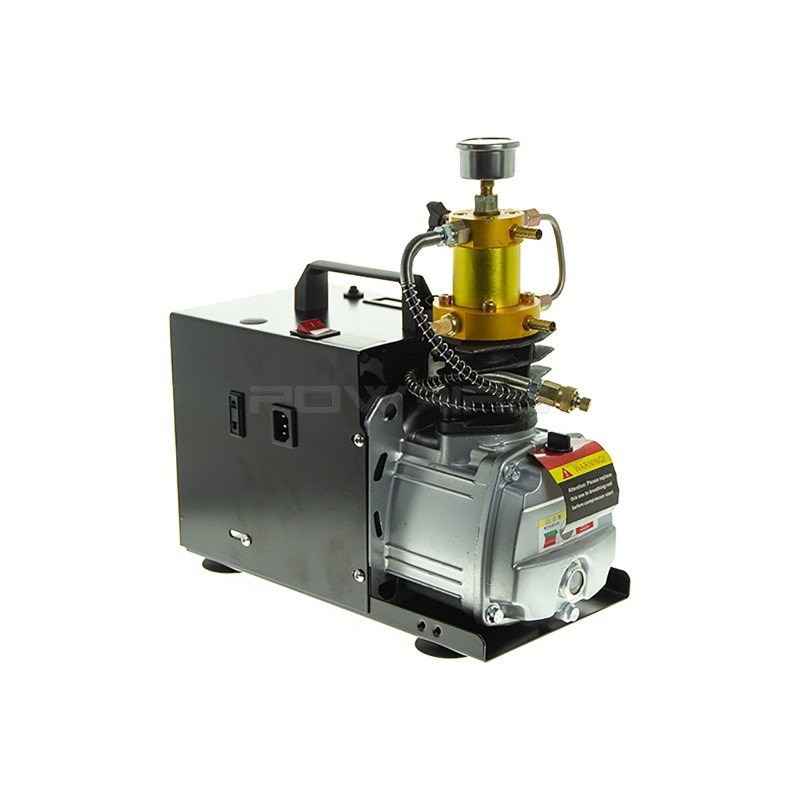

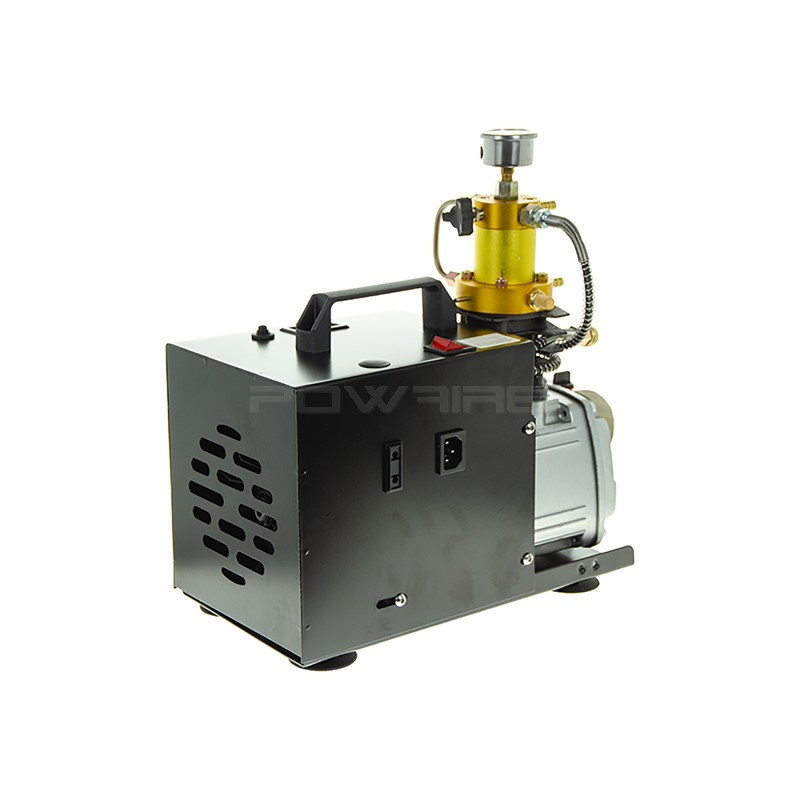

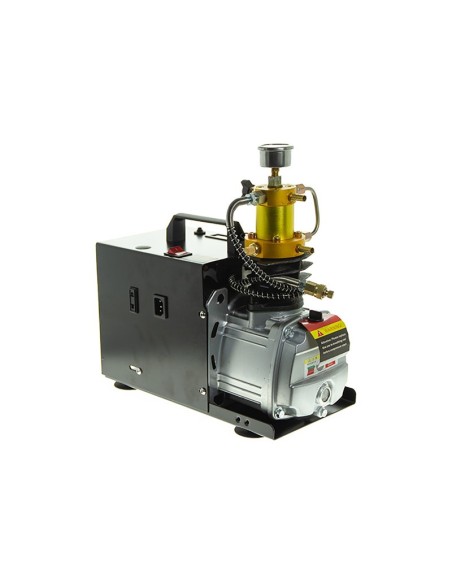

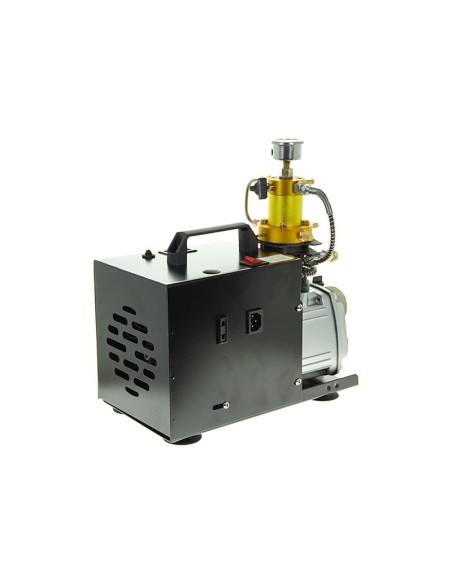

5L Compressor 230 bar compact HPA PCP electric

A73414

New product

Out of stock - No date of restock

Moyenne des votes pour ce produit
5.0 / 5
Moyenne : 5.0 / 5
Basée sur 1 avis clients.

308,25 € tax excl.

Si vous souhaitez enregistrer votre configuration, vous devez d'abord vous connecter.

Connexion

More info

Always be ready to play or shoot by filling your air bottles at home or at the club room.

Compressor delivered ready to operate.

  • Delivered without oil, fill oil before use and provide a regular check of the levels (compressor oil or 5w40).
  • Replace the oil plug with the ventilation rod.
  • Provide a water container and place the water pump and the return pipe in the container.
  • Let the water pump run for a few minutes after the end of compression to cool the compressor.
  • Ideal for recharging up to 5L per day.
This mini compressor can fill a 0.8 liter air cylinder at 200 bars (2900 PSI / 200 mPa) in a few minutes. The compressor can supply air up to 4500 PSI (310 bar).
  • Air filter with interchangeable cartridges (2 supplied)
  • water cooling (place the pump and the return in a container of a few liters not supplied).
  • For bottles from 0.2 to 1 liter.
  • Charge 0.45 l at 210 bars in 4 min.
  • Maximum load: 5 liters per day
  • For non-professional use
  • Operates at 220 v, 1.68kW, 85 dB.
  • Auto-stop function: no
Sold without the bottle.

Data sheet

Length34x32x18cm
Weight15,3kg

Accessories

Air Tanks useful tips

Always :

  • Keep the thread and inside of your tank away from oil, dirt or other contaminants.
  • Make sure your tank has not passed the re-test date. Bottles must be inspected and hydrostatically tested as follows: Aluminum tank : every 10 years. Composite tank : every 5 years (composite bottles have a maximum life of 15 years from the first hydrostatic test)
  • Keep the outside of your bottle clean and use only mild or neutral detergent when necessary. Make sure the bottle is completely dry after cleaning.
  • Store in a dry, cool and adequately ventilated place.
  • Have your bottle serviced by a qualified person only.
  • Make sure all accessories in the bottle are serviced, reviewed, inspected and handled in strict accordance with the manufacturer's instructions.
  • Have the cylinder checked or hydrostatically retested if it shows signs of corrosion, holes or dents, if it has been damaged by heat, a fall, or other.
  • Make sure there is no leak before each job. In the event that a leak is detected, the tank must not be refilled under any circumstances.
  • Check that the cylinder to be filled with air has a working pressure (PW) engraved on the crown (for all aluminum bottles) or printed on the label (for all composite bottles) which should not be exceeded by the filling apparatus. Fill compressed air to less than 40 bar (600 psi) per minute at the service pressure (PW) indicated on the cylinder.

Never :

  • Modify or darken the markings on the bottle.
  • Let your bottle roll during your travels.
  • Drop, knock or heat your bottle.
  • Expose your bottle to excessive heat (> 50 ° C).
  • Attempt to change the thread or force a valve inside the bottle.
  • Attempt to remove metal from the bottle by any means, as this will render the cylinder unsuitable for its nominal pressure.
  • Modify your bottle by adding additional openings for gauges or filling tips.
  • Repaint the bottle with paints that require high temperature cooking. Only use air-drying paints. Do not use caustic paint strippers or corrosive cleaners as they will damage the bottle.
  • Use the bottle for something other than its intended use.
  • Request that the bottle be filled beyond its nominal capacity. An overflow is dangerous.
  • Use or have your bottle filled if it leaks or if you suspect it is damaged. In this case, refer the bottle to an authorized specialist for a detailed visual inspection.
  • Fill a bottle that has exceeded its date of inspection and periodic retest.
  • Change your bottle in any way or add unauthorized accessories. Unauthorized modifications are illegal and could make the bottle unsafe.
  • Never fill a bottle of compressed air with Co2, you would put yourself in serious danger.

The bottles we ship are empty, we do not have the right to ship pressurized compressed air containers.

You can find the EU legislation on compressed air containers on the website of the French federation of Paintball.

Questions  (2)

A partir de Grégory | 2022-05-28 22:42:54

intéressé par ce compresseur , est t'il livré au complet avec la pompe a eau tuyau etc ? peu de précision a ce sujet sur la fiche produit ou sur la photo

Powair6

Bonjour , oui la pompe à eau est livrée avec le compresseur .
Cordialement

A partir de raphael | 2021-12-21 20:09:34

ont peux recharger les bouteille alu 0,8l 3000 psi set possible merci

Powair6

Bonjour,
Oui c'est fait pour cela
bien à vous,

Page: 1
Seuls les utilisateurs enregistrés peuvent poser une question. Login

Avis (1)

Seuls les clients enregistrés peuvent poster un avis. Connectez-vous ou créez un compte .
Tri:
5/5
Efficace et prix abordable
A peine recu a peine testé , remplissage de 6 bouteilles a 4000psi sans aucun probléme . en moyenne 4min pour le remplissage en partant a vide . prévoir un temp de pause entre chaque bouteille pour laisser l'ensemble refroidir .Seul bémol mais on peut difficillement faire mieux pour ce type de compresseur hpa c'est le bruit et les vibrations de l'ensemble . il faudrais pouvoir le fixé sur un support fixe car les ventouses ne servent a rien ca vibre trop donc obligé de tenir le compresseur pour pas qu'il se taille en courant .Je recommande , sa fonctionne au top . remplissage rapide et éfficace . livré complet et simple d'utilisation
