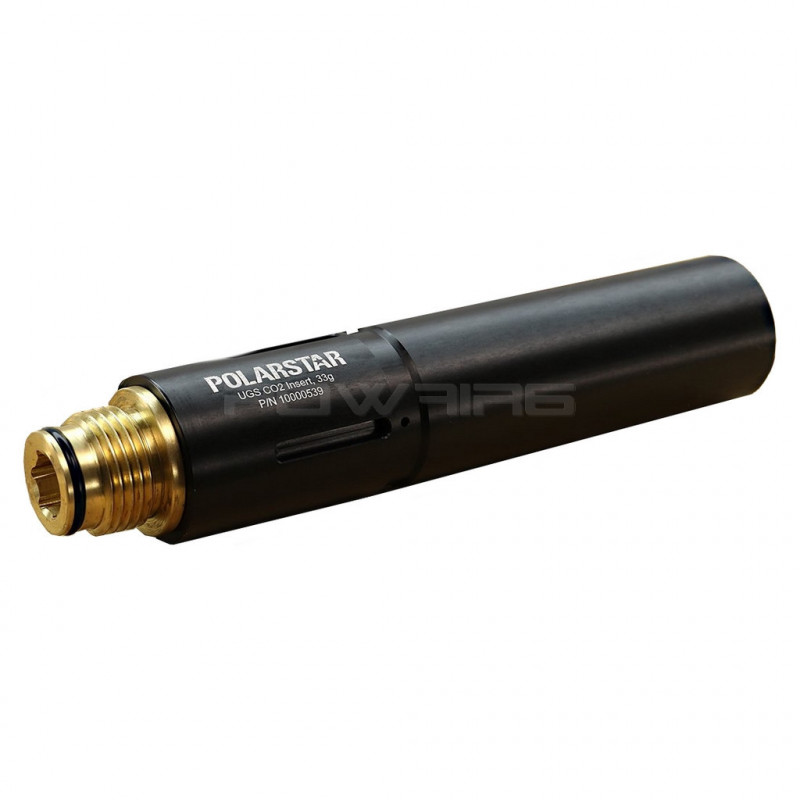

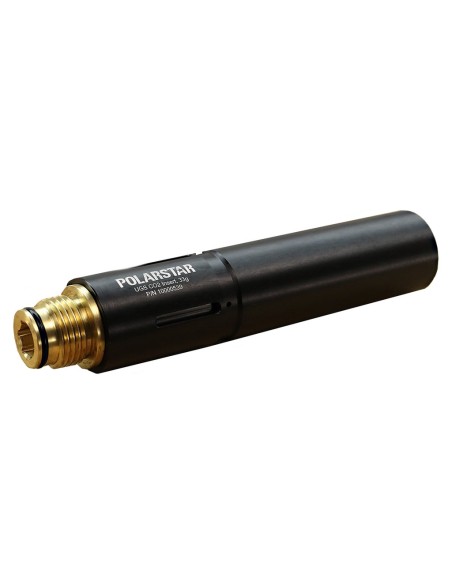

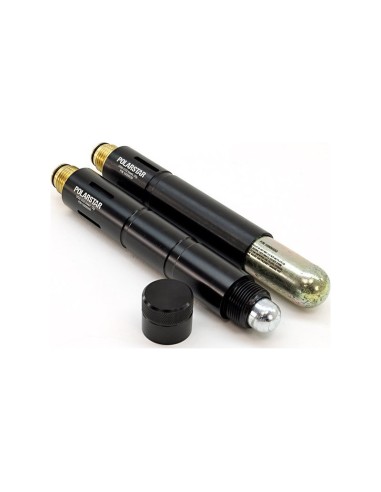

Polarstar CO2 Insert for 33gr cartridge UGS

10000539

New product

In stock

Moyenne des votes pour ce produit
0 / 5
Moyenne : 0 / 5
Basée sur 0 avis clients.

108,25 € tax excl.

Si vous souhaitez enregistrer votre configuration, vous devez d'abord vous connecter.

Connexion

More info

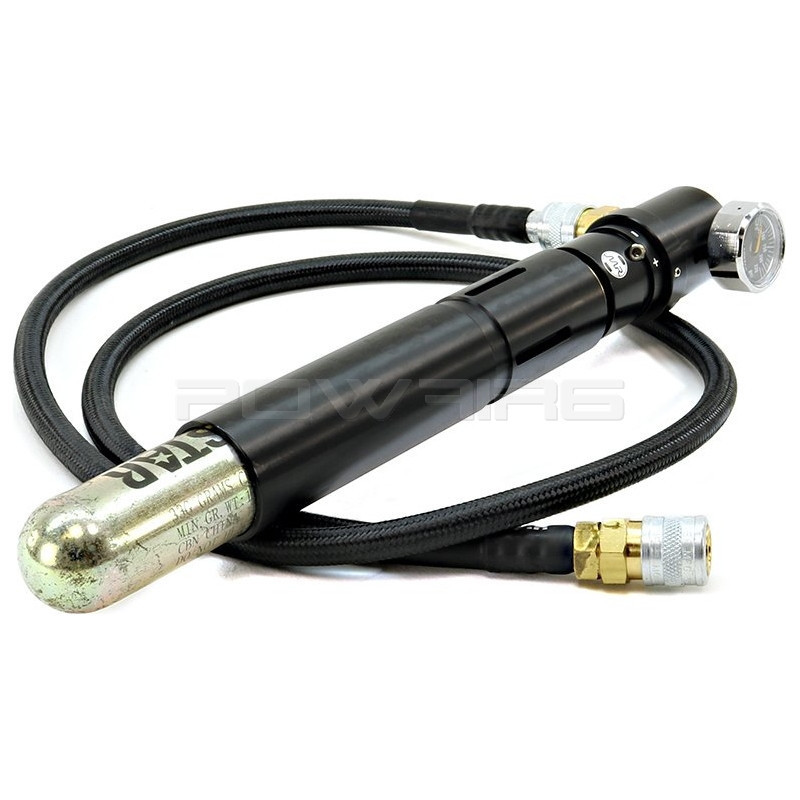

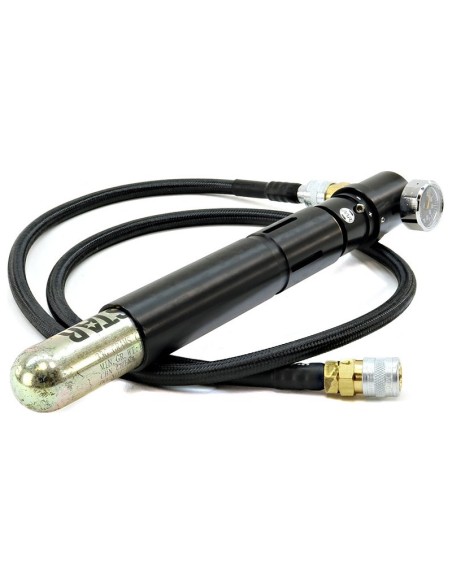

Our CO2 inserts are manufactured for both the UGS and CGS stocks and have models for both the 12g and 33g disposable CO2 cartridges in either variant. However, the inserts have more uses than just being paired with one of these stocks. Since they are equipped with the same standard ASA threads that are on a HPA tank, they can also be threaded into a conventional regulator to make an extremely compact air rig.

The only difference between the UGS and CGS inserts is the diameter of the tube. The CGS inserts are narrower since they are designed to fit inside of a CGS's Milspec buffer tube while the UGS inserts are made to the same diameter as a Milspec buffer tube. This means by changing out the stock's rail you are able to reconfigure your UGS from running the standard 13/3000 HPA tank to a low profile, Milspec buffer tube sized cylinder so you can use Milspec AR buttstocks.

Now, it is commonly known that you should not use CO2 to power an HPA engine since if liquid CO2 gets down-stream of the regulator it can cause a spike in pressure which is unsafe and can damage the sensitive components of the engine. So how is it that we're making something like this? Our CO2 inserts are specifically designed to allow you to safety run your HPA engine off of CO2. These inserts feature an integral expansion chamber, anti-siphon system, 5 micron filter and check valve to prevent liquid CO2 from entering the regulator regardless of the rifle's or air rig's orientation. As an added benefit, the internal check valve also prevents gases from escaping the expansion chamber while switching out cartridges so as to conserve as much CO2 as possible when performing a "combat reload" and allowing several full-power shots even while when the CO2 cartridge has been removed.

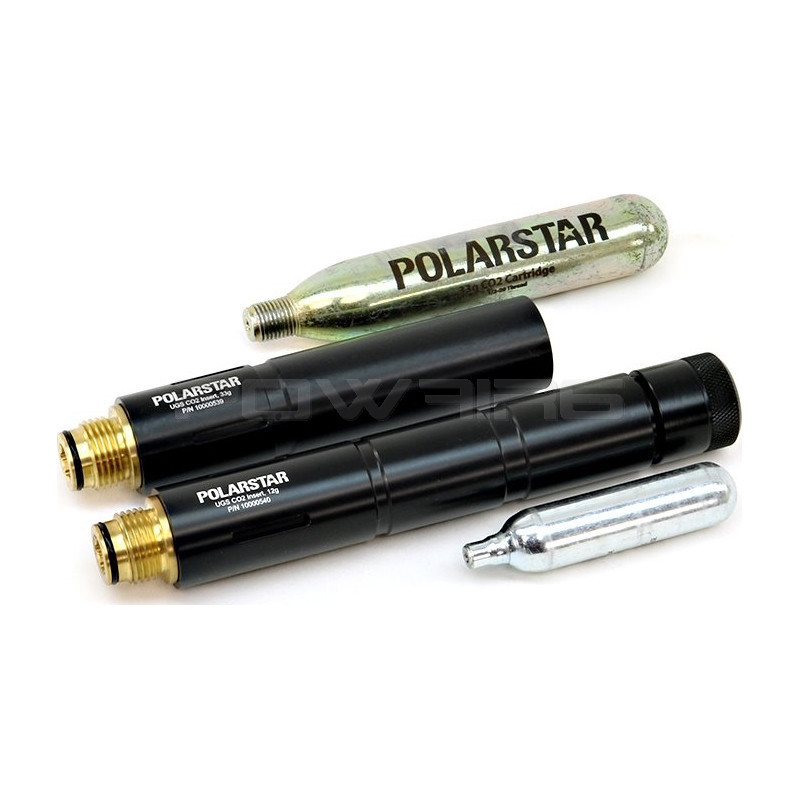

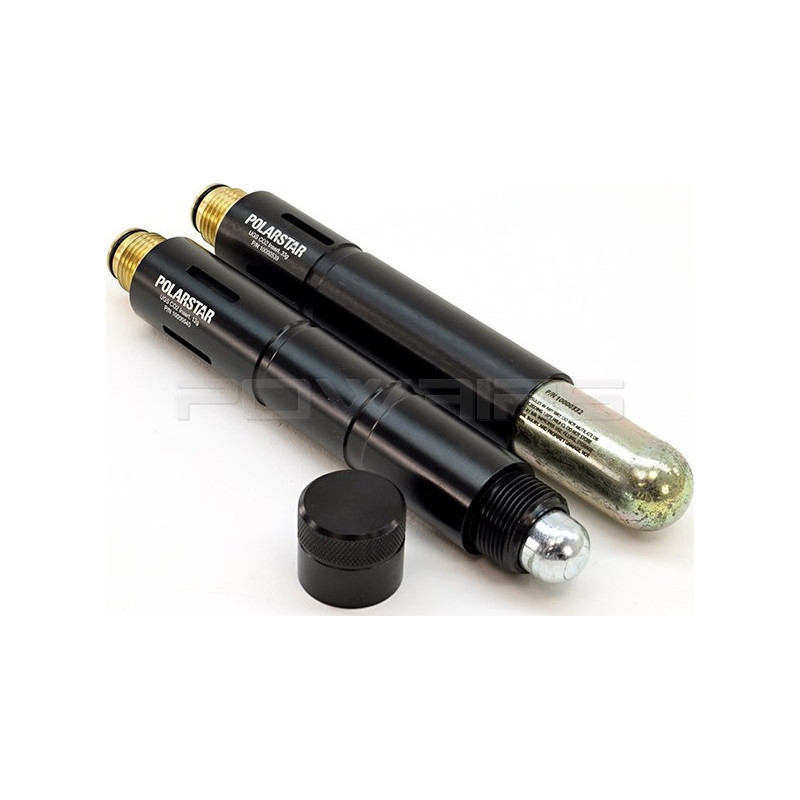

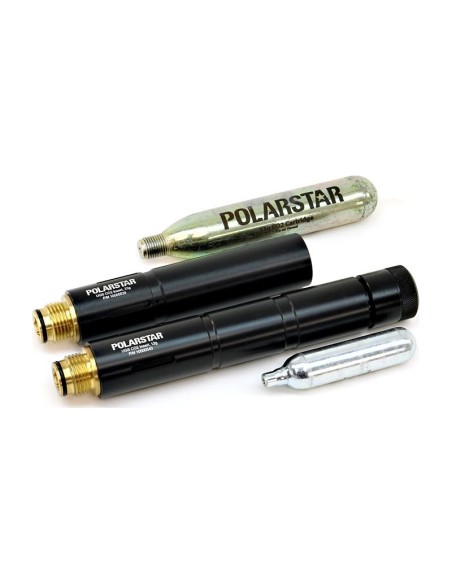

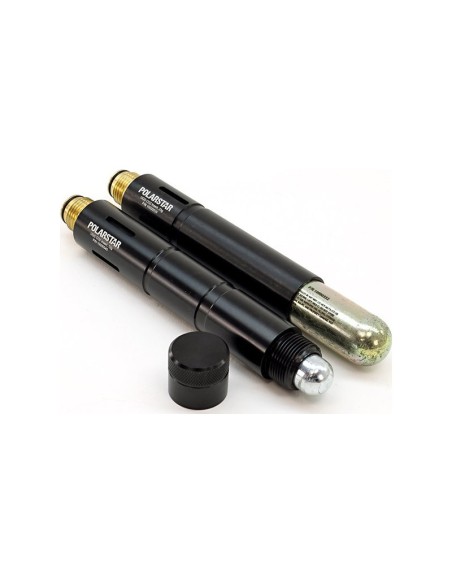

The 33g models accept threaded CO2 cartridges that are commonly used for inflating life vests while the 12g models use the standard 12g cartridges commonly used for Airsoft and Air Guns. The 33g cartridges are simply screwed into the receptacle at the bottom of the insert's bore which pierces the seal to release the CO2. The 12g cartridges are pushed down into the pierce pin using a uniquely designed end cap equipped with a multi-start thread. The multi-start thread consists of four intertwined threads running parallel to one another. Intertwining threads allow the lead distance of a thread to be increased (in this case, an increase of 4X) without changing its pitch. In layman's terms this means it has the strength of a slower thread without sacrificing speed. The cap only needs to be turned 270 degrees (3/4 rotation) from first thread engagement to the point that it pierces the cartridge and seals making changing cartridges an extremely fast and reliable process.
Inserts_Description_2_c37d9c4e-56c9-4419
So, you are probably wondering how many shots can you get out of these things? Based on an F2 running at 1.5J w/ .28g through a 6.05x380mm barrel, a 12g will average approximately 180 shots while the 33g will average approximately 500 shots. While these may not be the greatest if your playing style embraces the "accuracy through volume" concept, they are ideal for milsim scenarios where shots counts are lower and realism is higher.

  • For use with UGS or CGS stocks as well as most common HPA regulators/air rigs which are able to accept 900psi.
  • All inserts equipped with expansion chamber, anti-siphon system, 5 micron filter and check valve.
  • UGS requires addition of Milspec Rail (sold separately) before inserts can be used.
  • Standard ASA threads on all inserts allowing use with standard HPA regulators/air rigs.
  • Average shot count using an F2™ at 1.5J w/ .28g and 6.05x380mm: = ~500 shots
  • 33g models accept threaded CO2 cartridges (p/n 10000332)
  • Insert cannot be pressurized before installation into stock/regulator.
  • 33gr CO2 Cartridges Not Included (will be available soon)

Data sheet

MaterialAluminum
Main colorBlack
Thread typeASA
Power sourceCO2

Accessories

Questions  (4)

A partir de Hichem | 2024-04-10 14:17:50

Compatible avec le système WOLVERINE BOLT M VSR-10 ?
Merci

Powair6

Bonjour , oui il est compatible .

Cordialement,

A partir de robert | 2022-07-18 16:15:28

Will this adapter also work for the Polarstar CGS ? Thabk you :)

Powair6

Hello , no it is not compatible .
Best regards,

A partir de Thomas | 2022-03-21 12:43:14

Quelle sont les dimensions de cet ensemble avec une cartouche enclenchée SVP ?

Powair6

Bonjour , l'ensemble complet fait +/-20 cm

Cordialement,

A partir de Jesse Suokas | 2020-01-21 18:40:12

When will the milspec rail to match this co2 adapter become available?

Powair6

it will be released in february 2020. regards
