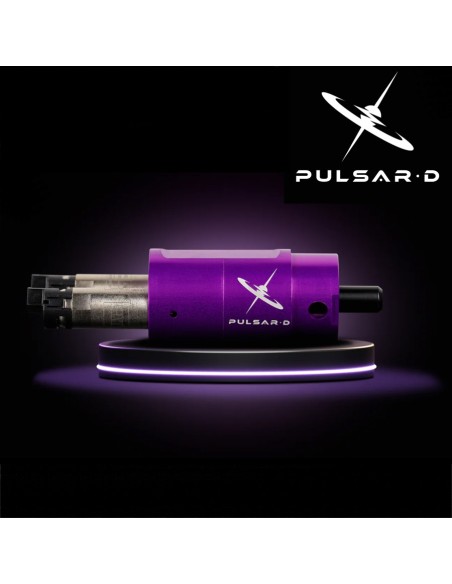

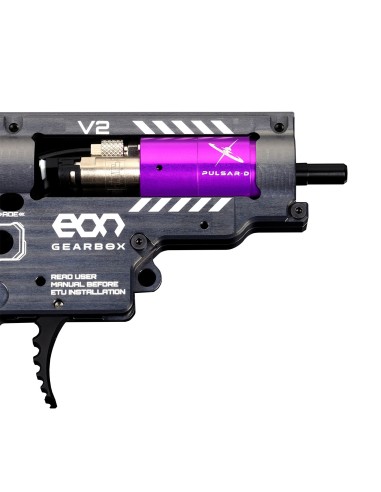

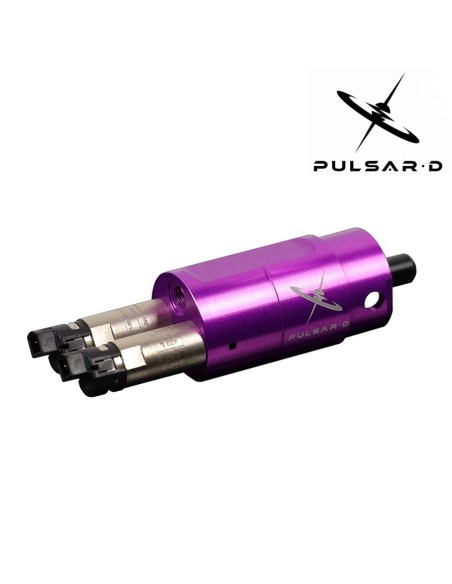

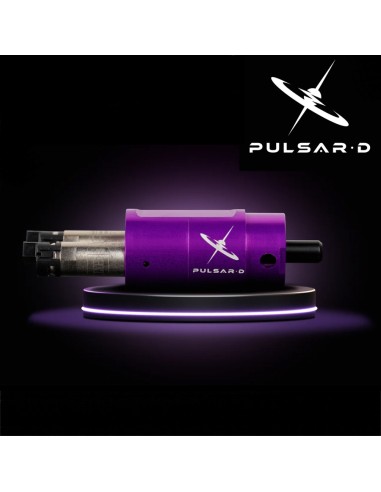

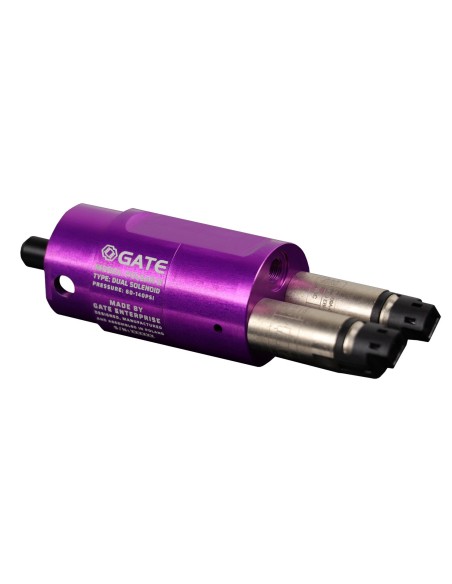

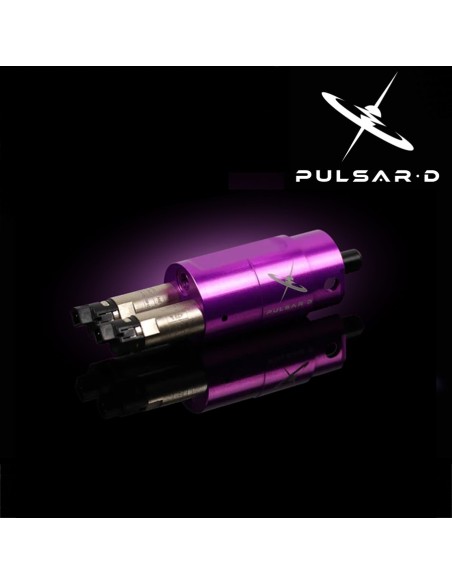

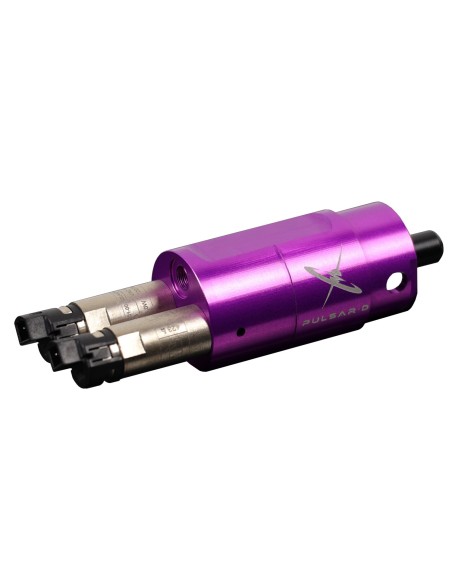

> >>GATE PULSAR D V2 dual-solenoid HPA Engine
GATE PULSAR D V2 dual-solenoid HPA Engine - View larger
Previous Next

GATE PULSAR D V2 dual-solenoid HPA Engine

HPA-PD

New product

ETU not included !

More details

In stock

Moyenne des votes pour ce produit
0 / 5
Moyenne : 0 / 5
Basée sur 0 avis clients.

299,92 € tax excl.

Si vous souhaitez enregistrer votre configuration, vous devez d'abord vous connecter.

Connexion

More info

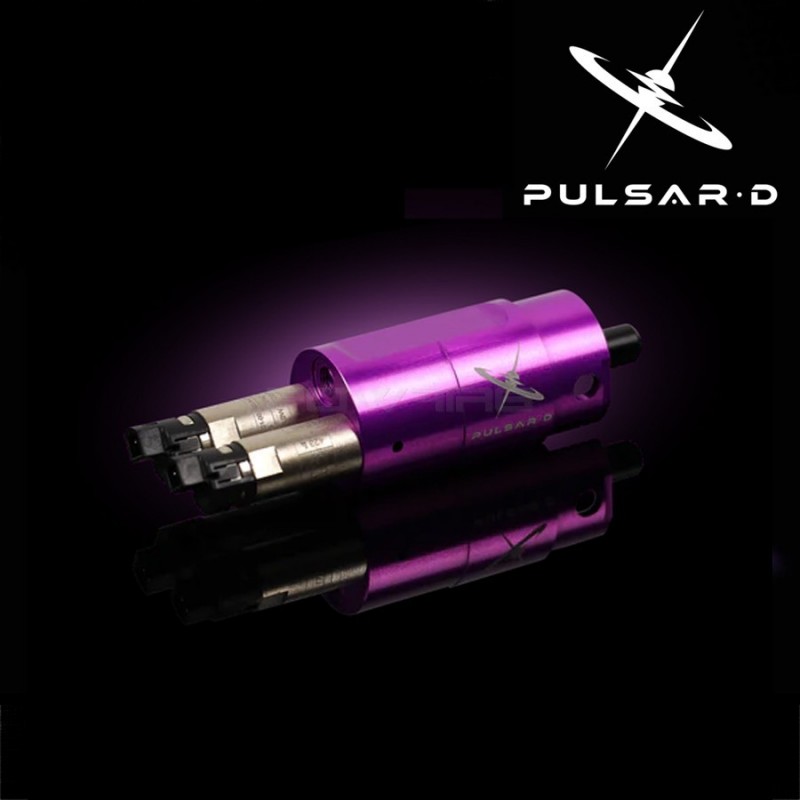

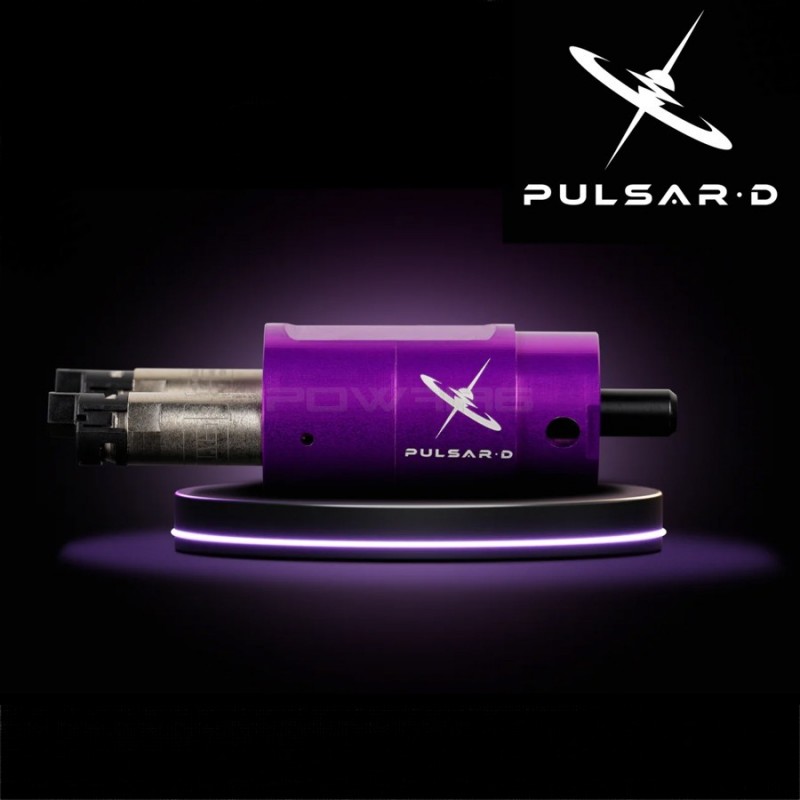

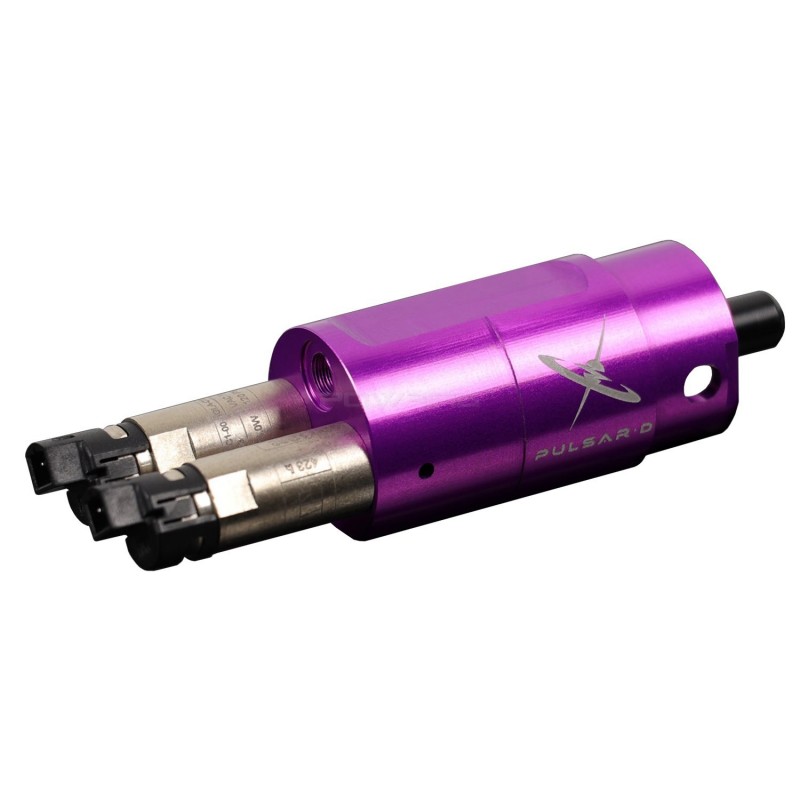

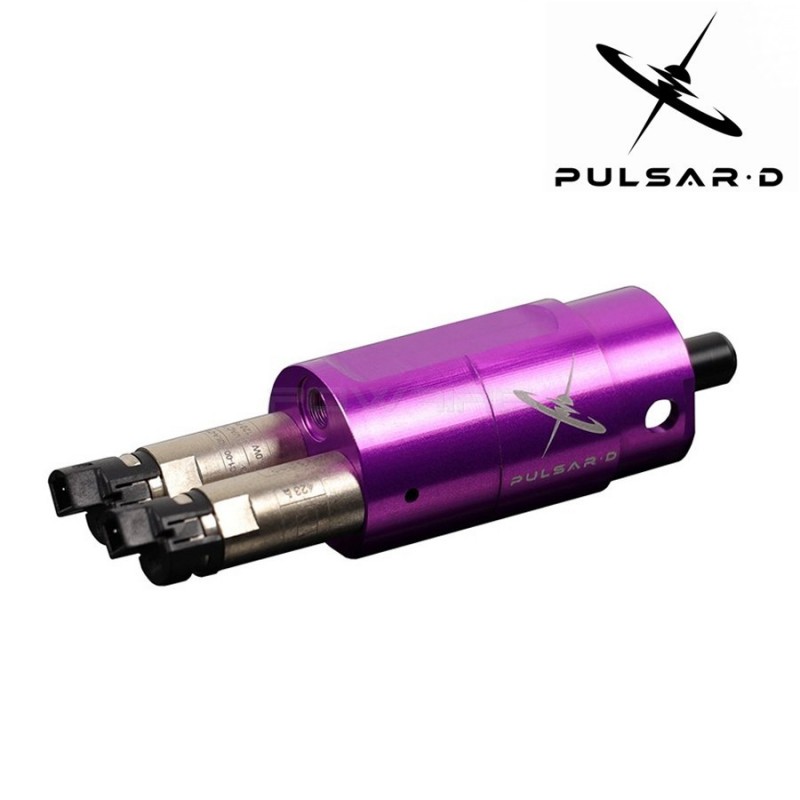

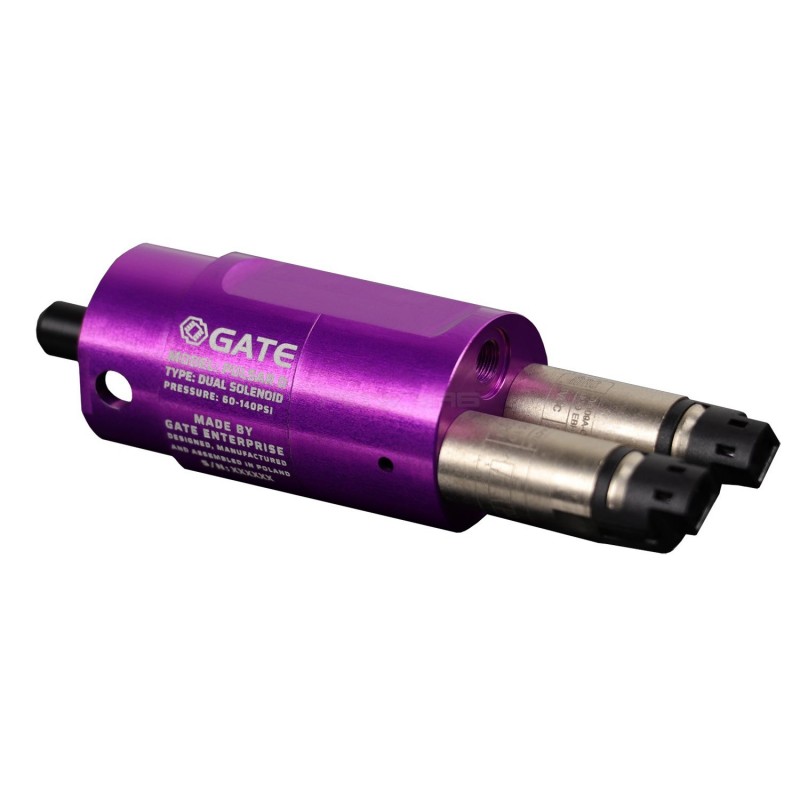

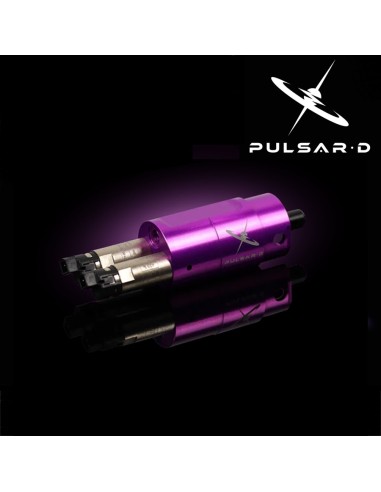

PULSAR D HPA Engine (dual solenoidclosed-bolt) sale without TITAN

thanks to optical sensors combined with HPA technology, you get an absurd trigger response never before seen in airsoft. Get insane muzzle velocities ranging from 250-650 FPS & ROF from 1-40 RPS for CQB, assault, and sniper replicas. Closed-bolt and the innovative feed system guarantee you a straight and repeatable BB trajectory even in full AUTO – every time. Engine calibration has never been easier – PULSAR D & TITAN II Bluetooth® is introducing innovative cycle synchronization automation. The most advanced and user-friendly GCS app lets you access a multitude of settings and configurations like binary trigger, trigger sensitivity, ROF – live via Bluetooth®. You can even use a remote trigger on your smartwatch. Install the world's smallest and most advanced dual solenoid valve HPA engine in replicas where previously not possible due to size constraints. Choose one of the five nozzles included or use a regular AEG one. Take your HPA replica into the future!

GCS App (GATE CONTROL STATION) gives you total control of your replica. It is a free universal app for configuring, controlling, and connecting the GATE Ecosystem elements such as the TITAN and ASTER Electronic Trigger Units or the tactical computer STATUS. The app is compatible with Android, iOS, Wear OS, watchOS, Windows, and macOS devices.

PULSAR D is unrivaled thanks to the following combination:

  • Simple design
  • Innovative automatic synchronization of the nozzle movement cycle enables easier calibration – no need to fire thousands of rounds to achieve good FPS results and stable BB trajectories
  • Due to its innovative BB feed system and closed-bolt mode, it is definitely less sensitive to replica and assembly quality
  • Razor-sharp accuracy of the system – no unstable hop-up system symptom like in other HPA systems
  • Seamless integration & compatibility with the most advanced optical ETU/FCU TITAN II Bluetooth® for a synergy effect
  • High tolerances eliminating the mid-cap syndrome
  • Compatibility with any AEG nozzles
  • Zero nozzle wobble resulting in stable FPS when paired with GATE AEG nozzles, which translates into stable FPS and no mid-cap syndrome
  • No FPS drops on AUTO relative to SEMI mode at high RPS – up to 40 RPS with no FPS drops

PULSAR D FEATURES

SIMPLE - Easy maintenance, thanks to a well thought-out design

VALUE FOR MONEY - State-of-the-art technology at the best price

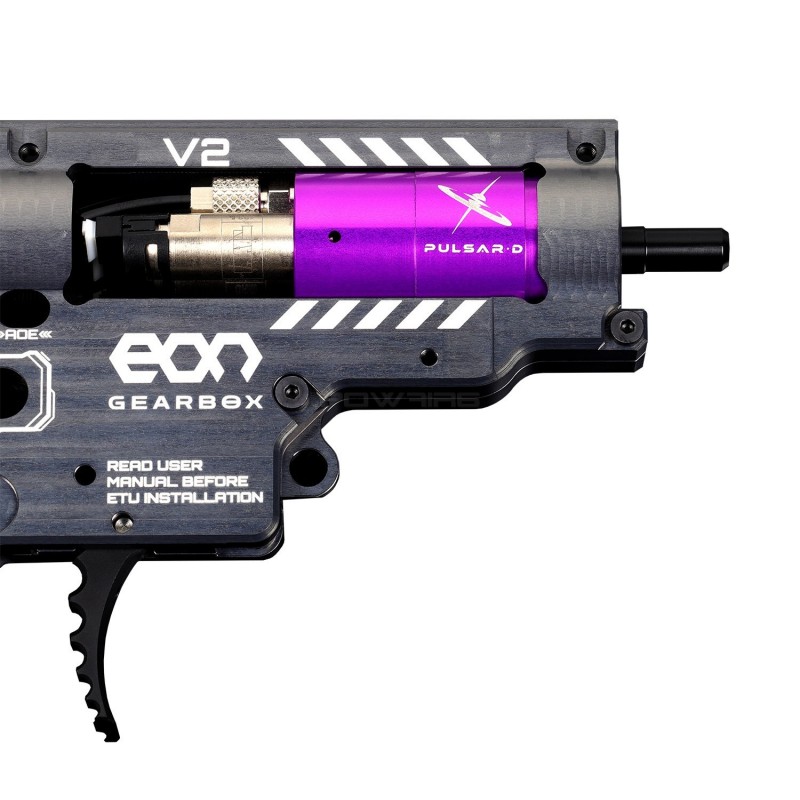

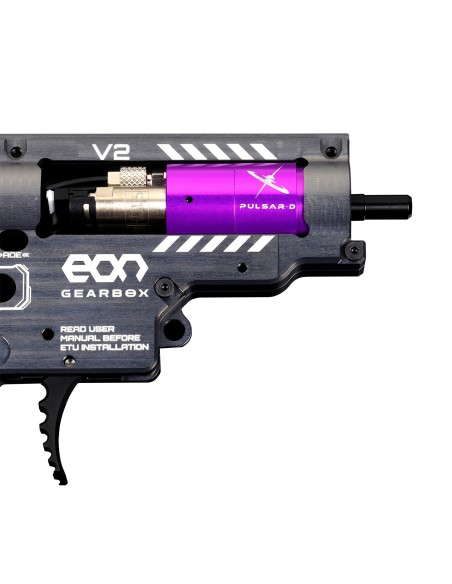

COMPACT - Smallest dual solenoid valve closed-bolt HPA engine with innovative cycle synchronization

  • Constant access to software updates

AEG COMPATIBILITY - Compatible with AEG nozzles – 5 nozzle lengths included for MP5, M4/M16:

  • 20.50mm
  • 20.80mm
  • 21.15mm
  • 21.25mm
  • 21.40mm

NO MID-CAP SYNDROME - Eliminated mid-cap syndrome thanks to high dimensional tolerance

ACCURACY - High accuracy due to the innovative BB feed system for HPA engines

STABILITY - FPS stability in full AUTO mode

PULSAR D – DUAL HPA SOLENOID ENGINE

Solenoid Voltage Range : 5-8.4 V

Operating Pressure : 60-140 PSI – high pressure only

Gas Consumption : For 90 PSI and a 48 ci/0.8 l 300 bar/4500 PSI bottle – 0.7 PSI per shot

Dimensions with innovative cycle synchronization automation (Length x Diameter x Height) : 102 mm x 25.4 mm x 38.5 mm

Dimensions (Length x Diameter x Height) : 100 mm x 25.4 mm x 32 mm

Finished Product Weight : 90 g

Operating Temperature Range : min. -15° C, max. +50° C

Relative Humidity : ≤ 80%

Regulated ROF :1 to 40 RPS (BB feed correctness depends on magazine)

Velocity : 250 – 650 FPS

Operation Mode : Closed-Bolt / Open-Bolt

Pressure Range : 60 do 140 PSI

Data sheet

HPA SystemGate Pulsar
Power sourceHPA + battery
GearboxV2
BatteryNot Included
Battery voltage7.4V
Battery chargerNot Included
Battery ConnectorJST

Accessories

GATE

GATE

The GATE mission statement:  ‘To give every airsoft player a more exciting experience and to provide them with access to the most up-to-date technology for their airsoft games’ is well taken to heart by the company’ staff. Every product at GATE goes through advanced technology process. Prototypes are designed using modern software and sophisticated hardware. We rely on reliability and miniaturization.

Beginning in 2014, each product, prior to its introduction to the market, is tested by 50 independent beta-testers. Thanks to our long-term research, meticulous tests and our experience, our products are reliable and can operate under most harsh conditions. All products comply with ROHS 2 and meet CE standards. Electronic circuits are being made using modern technologies. SMD 0603 components and 8 mils traces are our standard. High-density multi-layer PCBs allow large scale miniaturization. In high power circuits, we use most powerful transistors available on market: HEXFET Power MOSFETs International Rectifier, NXP N-channel logic level MOSFET in LFPAK using NextPower technology, Vishay P-channel MOSFET in PowerPAK SO-8 using TrenchFET technology. Because of an optimised output capacitance, body diode and channel structure, MOSFETs exhibit “soft-recovery” switching behaviour, resulting in lower voltage spikes, faster decays and virtually no gate glitches. Moreover, increasing switching frequency from 300KHz to 1MHz allows a 70 - 80% reduction in inductor size. MOSFETs' excellent switching performance enables such design choices with minimal loss of efficiency.

For eight years, our company has been designing and producing the most innovative AEG Control Systems and MOSFETs. We have premises located in Cracow, Poland. Our products successfully entered global markets and are being sold in more than 20 countries.  Why should you choose GATE while upgrading your gun? Thanks to our products, your skirmish becomes a more exciting experience. The variety of functions and protections our Controllers and MOSFETs give to your gun is enormous.

See all products from GATE

Questions  (1)

A partir de David | 2024-04-08 09:24:26

Does the engine come with the Airhose? If not do you have one that fits? Thanks

Powair6

Hello, the hose that goes from the Pulsar to your motor grip is included.

Regards,

Page: 1
