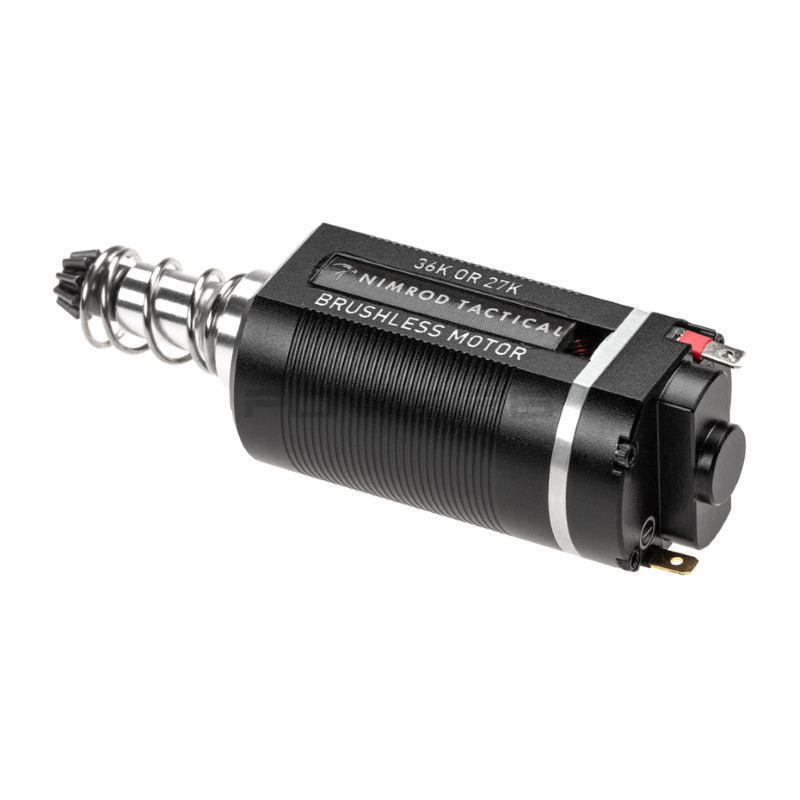

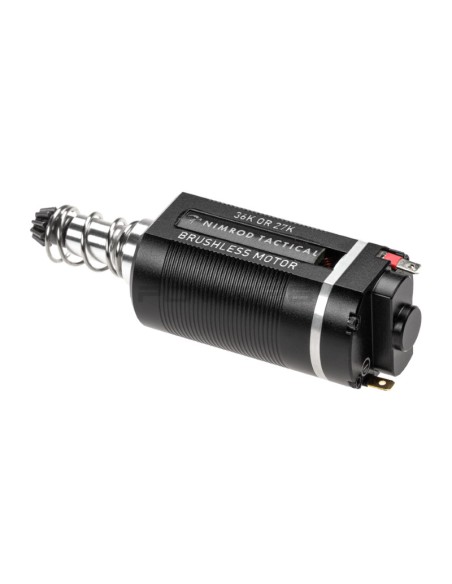

Nimrod NT Blackbird 36K/27K CNC Brushless Motor long

The Nimrod Tactical Brushless motor has 2 adjustable speed settings. Depending on the battery being used, either 27000 rpm or 36000 rpm can be set. Same as with the regular Nimrod motors, a D-shape pinion gear is used. Thus the power transmission is better and the change of the bevel gear is easier. The motor should only be used in conjunction with strong batteries. The C rating must necessarily be above 40 / 60. Also, the battery should have a high capacity (1400 mAh or more) to operate smoothly. The motor has been successfully tested with a variety of mosfets available on the market and it can be reported that all tested combinations worked well together.

Please note that some Mosfet manufacturers cannot guarantee that operation with a brushless motor is possible. In this regard, always refer to the Mosfet manufacturer’s specifications. To ensure a trouble-free installation, the pinion to bevel gear position must be considered. Some grips and motor covers need to be modified to allow a perfect fit of the motor.
