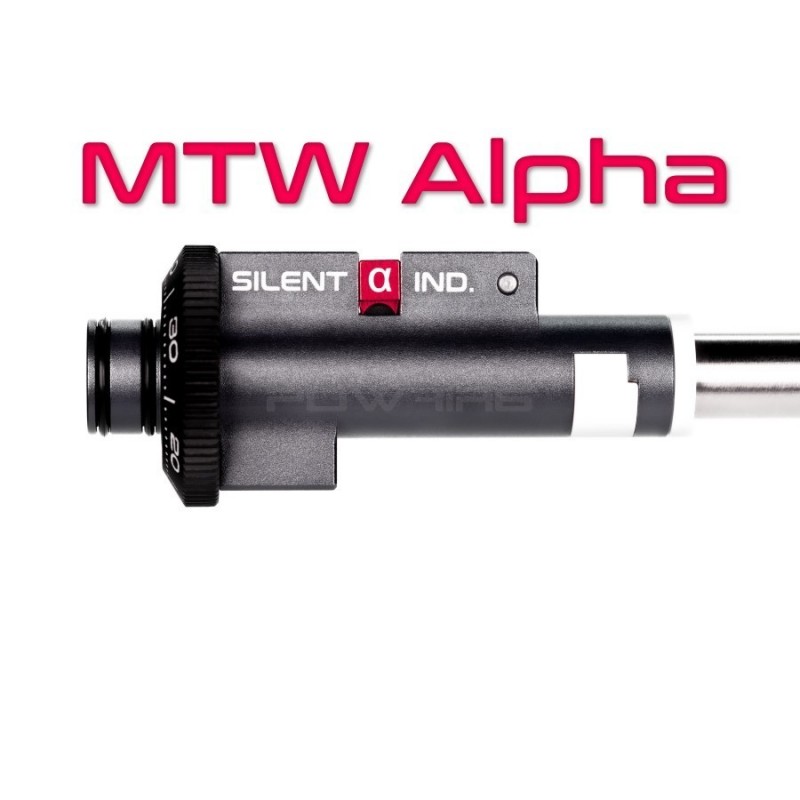

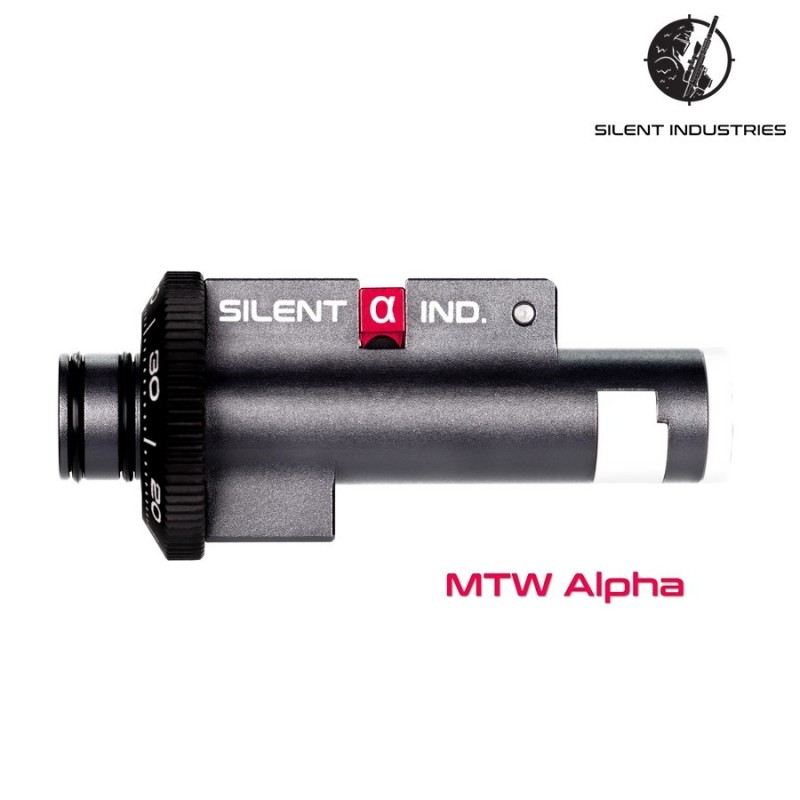

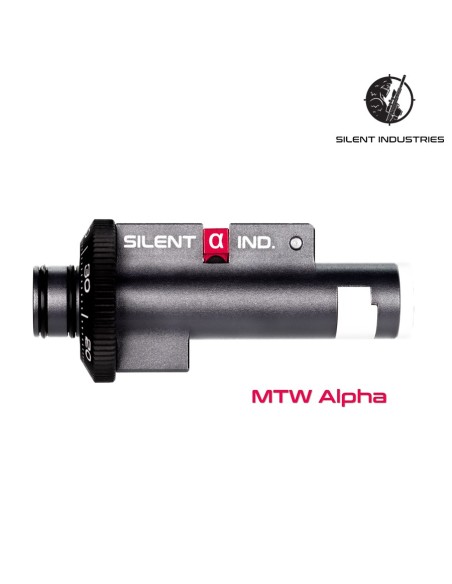

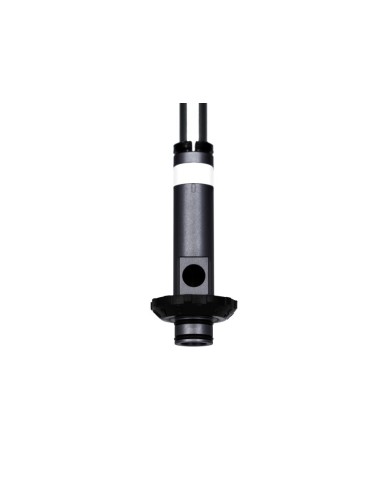

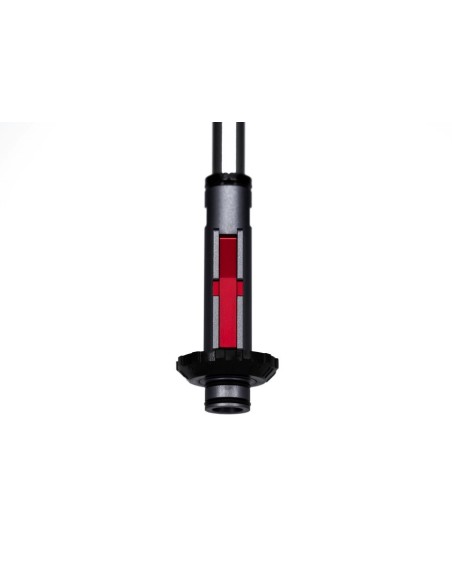

Silent Industries MTW Alpha CNC hop-up chamber - Inferno

TRUE-TDC

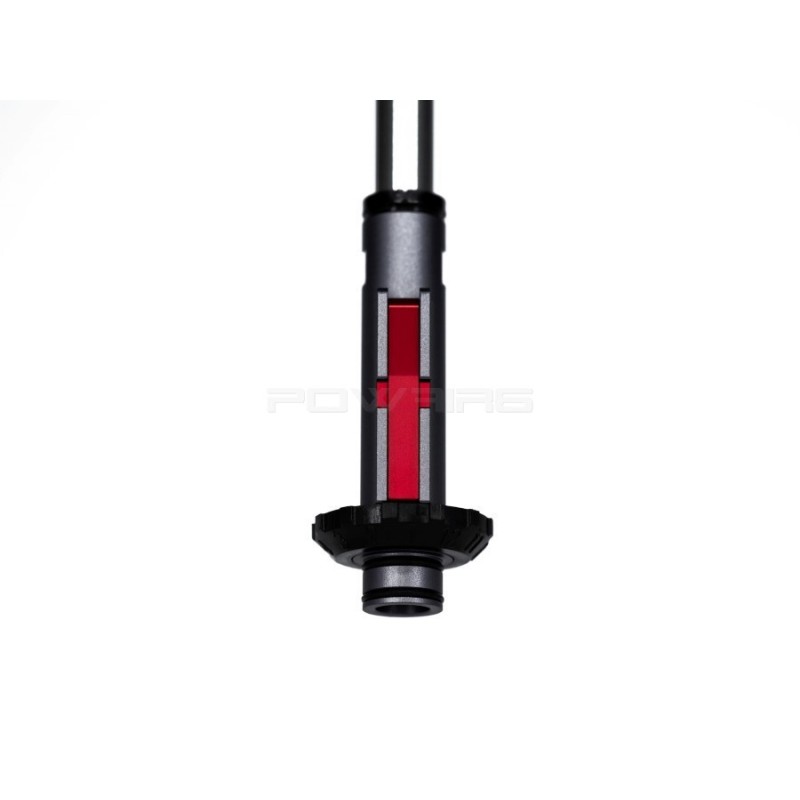

To get the most consistent pressure on the bucking through the hop-up settings, we had to include TDC. This means the nub can only move in up & down motion. The TDC trolley we include is made for nubs, so you can use your desired nub. We recommend using our Black Nubs, Blue Nubs, ML Omega or similar height nubs, because our system was optimised for it. Our TDC system provides the most travel distance, meaning it can lift heavy BBs easily!

TENSIONER RING SYSTEM

Our revolutionary tensioner system is very easy to assemble, it utilises tensioner rings! In the package you get two rings, black & white (extra rings can be bought for tighter settings) We recommend using G&G Green bucking, you can use both rings for it

• Black is for tighter lip tension (Recommended for Inferno)
• White is looser lip tension (Recommended for Reaper)

The best part is if you don’t want to tune it, you can just use the black tensioner ring as it is the stock form for most wide use. Unlike the Phoenix this has fix settings.

Included

• Loose tensioner (White)
• Normal Tensioner (Black)

Additional

• Tight tensioner (Black with 2 grooves)
• Very Tight Tensioner (Black with 1 groove)

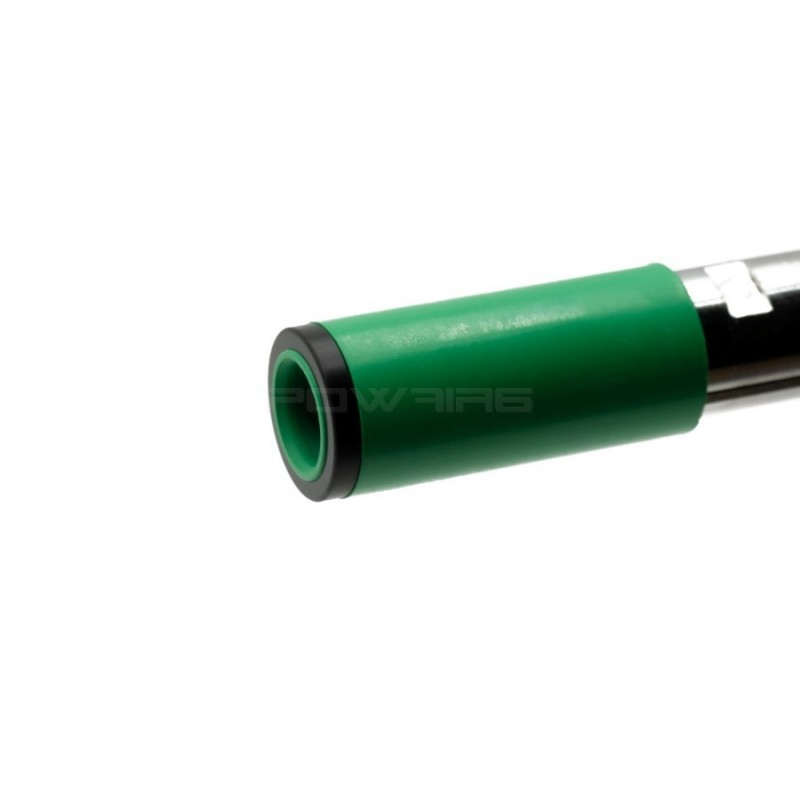

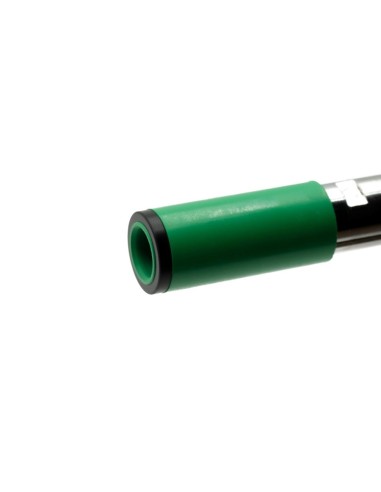

Ring and Bucking recommendations

• White Tensioner: G&G Green, Maple Leaf buckings (Looser Lip)
• Black Tensioner ring: G&G Green, Maple Leaf buckings (Tighter Lip)
• Black tensioner with 1 Groove: A+ bucking, Madbull Blue, Madbull Red
• Black tensioner with 2 Grooves: Madbull Blue, Madbull Red

If you have a bucking & nub combo that works for you, we are sure it will work well in the Alpha! lthough, we recommend using G&G Green and ML Omega.

SMOOTH BUT TIGHT HOP ADJUSTMENT

We have redesigned the end of the hop-up arm and added bevelled edges, so it slides smoother in the hop-up wheel channel. Using the stock plastic hop-up wheel and the CNC aluminum hop-up arm makes a perfect combo, because plastic is self lubricating material!

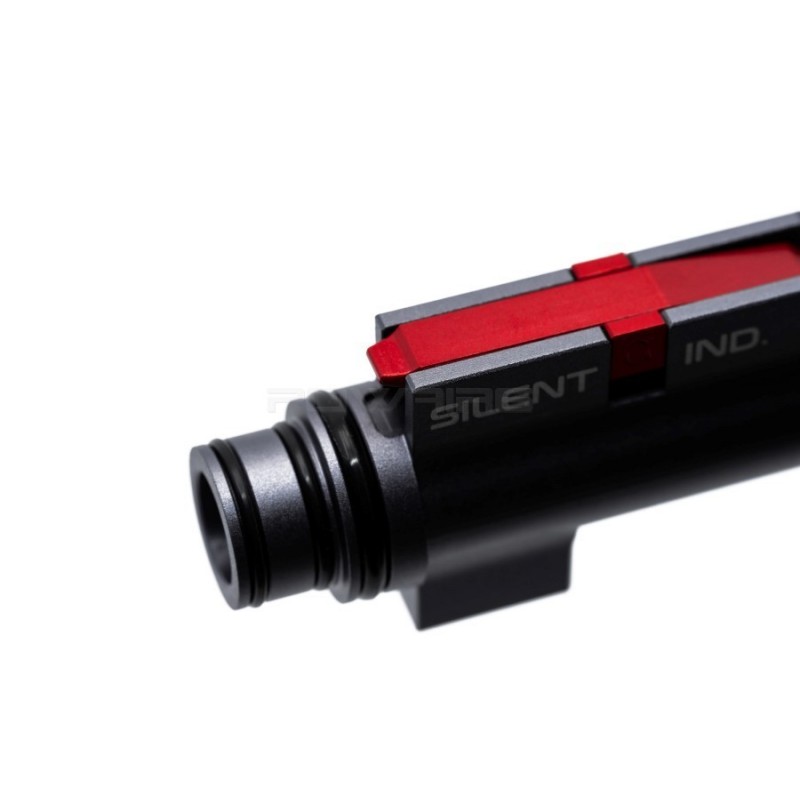

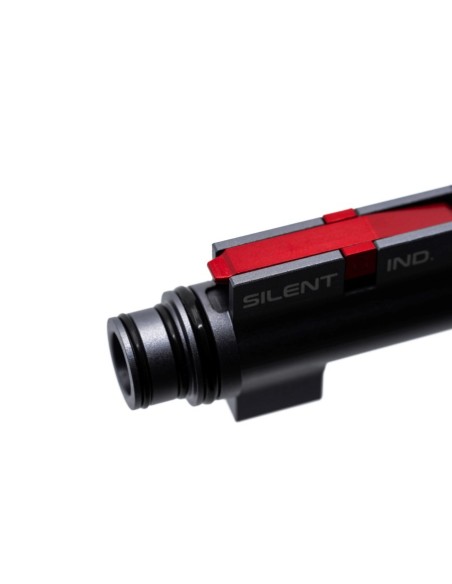

DOUBLE O-RING DESIGN FOR INFERNO

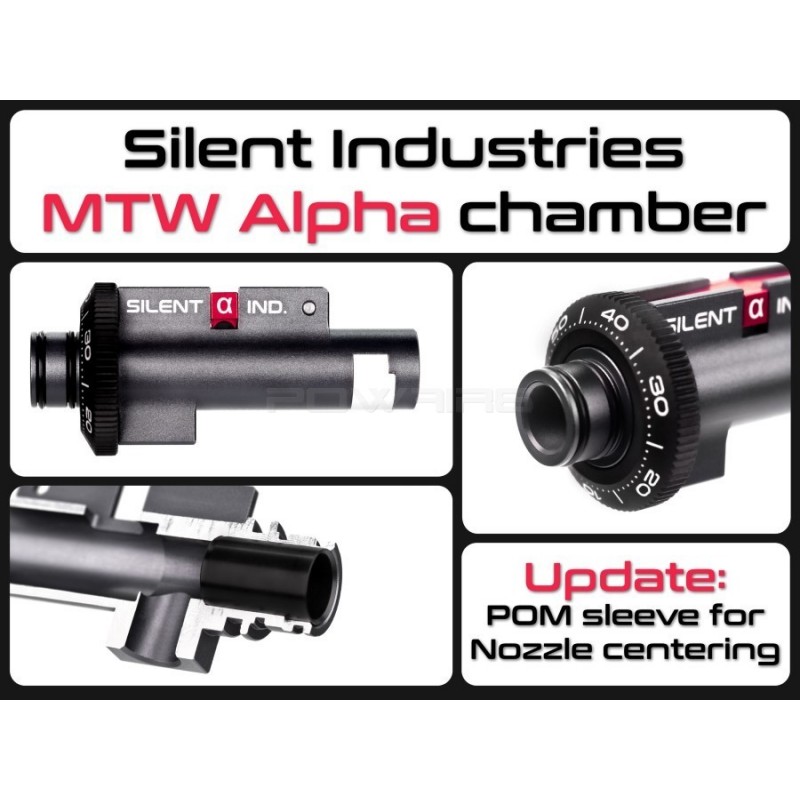

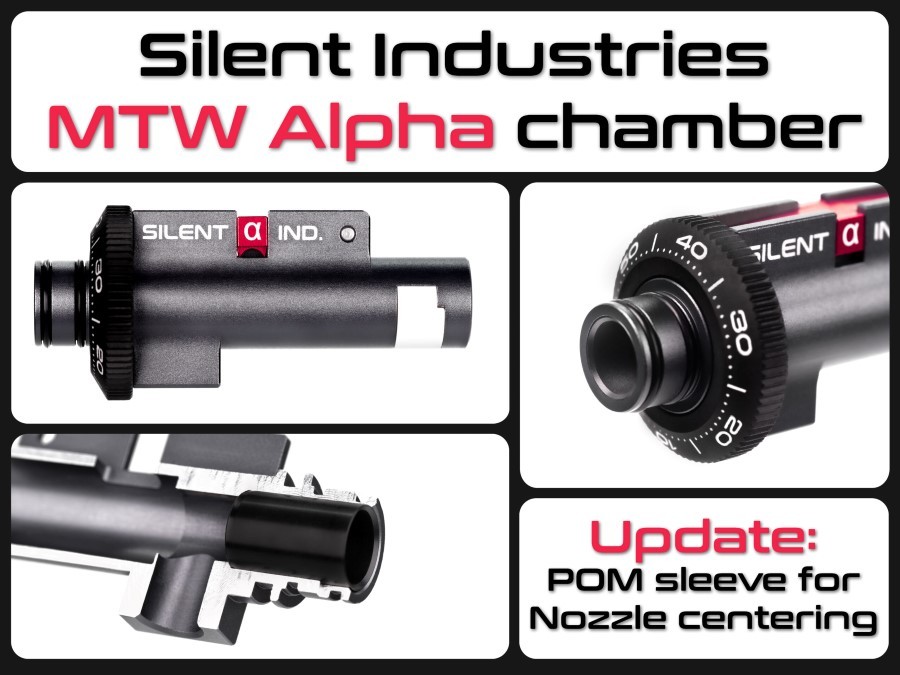

Using and extended front on the hop-up allows it to utilise 2 O-rings. This means better engine to hop-up alignment. They are tightly connected, so the nozzle can’t push the hop-up away and dust is not able to get into the nozzle area from the outside. Reaper version uses only one O-ring and it can also be used for Inferno.

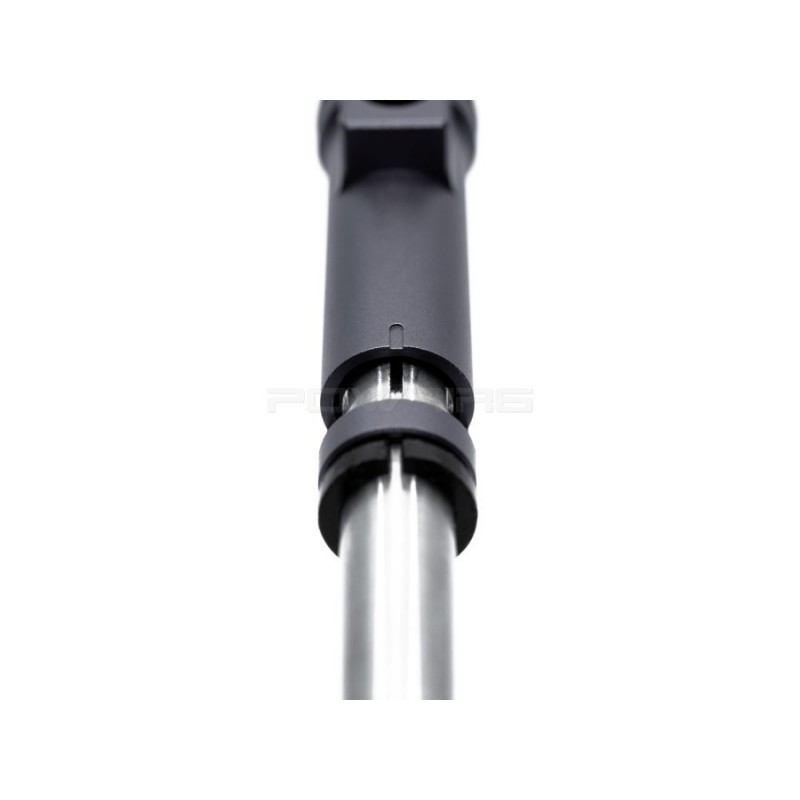

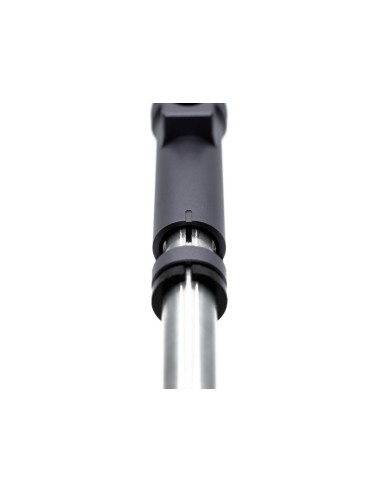

BARREL ALIGNMENT GROOVE

The Alpha features a groove that can help with barrel alignment, we recommend using this as a reference point as some less quality barrels can have misaligned hop-up window! With PDI, Lambda, Sniper Upgrades stainless steel barrels it works well!

BARREL LOCK

Our MTW Alpha hop-up chamber was designed around the Retro Arms C-clip, because we think it is the highest quality on the market. We include one in the package. In addition you should use the plastic barrel lock from your stock MTW chamber, it really holds the barrel in place. We didn’t want to make a threaded barrel lock, because while installing it, you can twist the barrel and mis-align the bucking.

MATERIALS

• Our products are made to the highest quality standards, so we believe in using quality materials.
• The Alpha chamber is mostly made from 6061 and 7075 Anodized Aluminum.
• O-rings are high-quality German O-rings made from NBR rubber.
• Stainless Steel pin to secure the Hop-up arm into the Hop-up chamber base.
• Tensioner are made from POM plastic, it can be machined to tight tolerances and is hard plastic

TOLERANCES & QUALITY CONTROL

Our products are made to very tight tolerances so there is no wobble and play in the assembly, while allowing the system to operate freely. We inspect every single hop-up chamber before sending to the customer.

WHAT DO YOU NEED ?

• Stock hop-up adjustment wheel from your MTW or the Advanced Adjustment Wheel from us
• Feed tube that is already in the gun, possibly our feed tube spacer
• Hop-up bucking (G&G Green, A+, Madbull Blue)
• Hop-up nub (Black nub, ML Omega)
• Hop-up spring from your MTW
• Silent Industries Inferno Red nozzle (Optional)!

WHAT’S INCLUDED ?

• Hop-up chamber base (Inferno / Reaper)
• Hop-up arm
• TDC nub carriage
• Stainless Steel pin for the hop-up arm
• O-rings
• Retro Arms C-clip
• Barrel Stabilizer
• 2x Bucking Lip tensioners (Black & White)

The adjustment wheel shown in the photo is not included in the box. You will need to use the original one or buy the Silent Industries wheel separately
